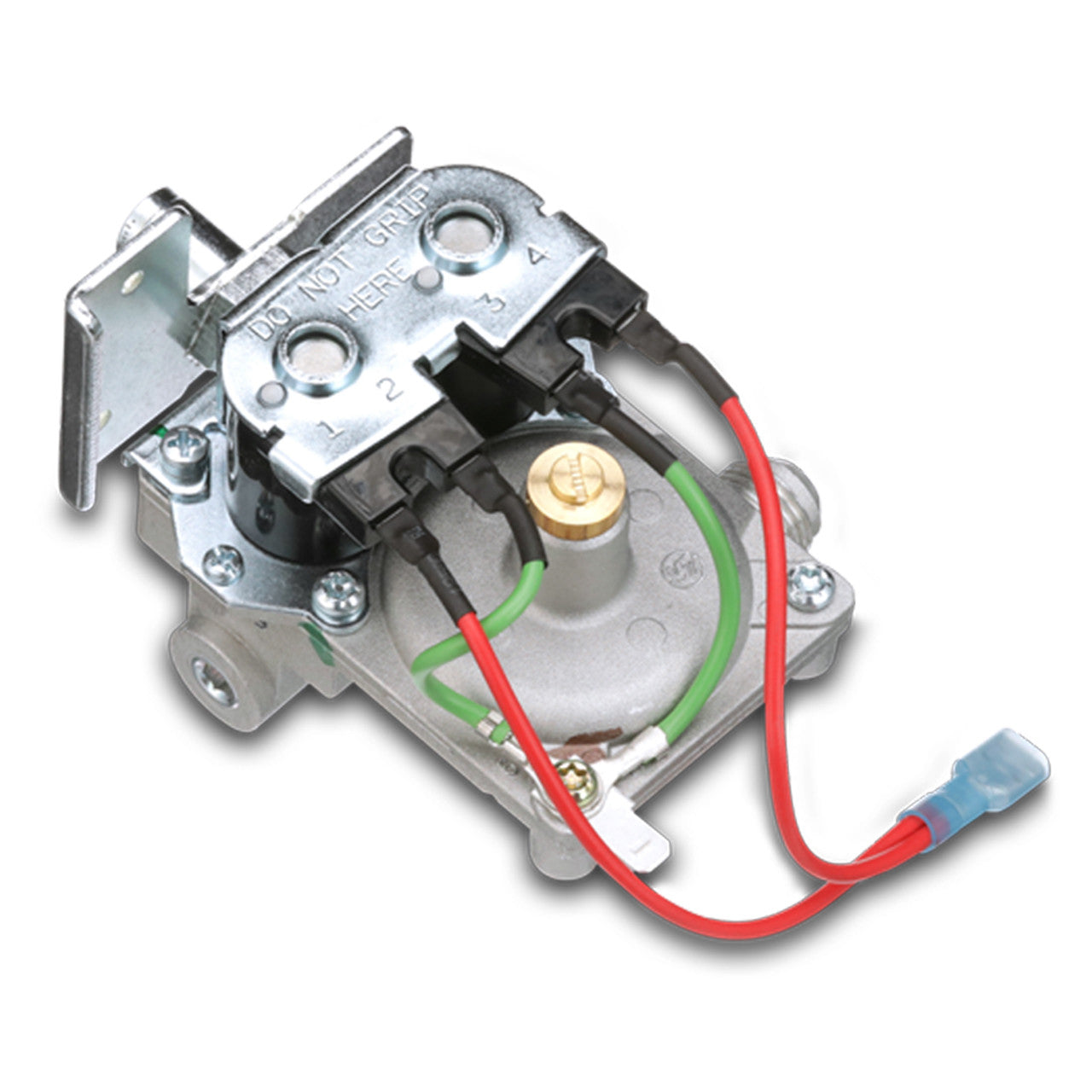

Dometic™ Atwood 31098 OEM Hydro Flame Furnace Gas Valve

The furnace gas valve controls the flow of propane to the burner, dependent on signals from the control board. Starting and stopping the flow of gas to the burner by a 12V DC signal. the dual solenoid design gives secondary protection against gas leaking through the valve seals. there are two valves doing the same task, so there is always a backup valve to provide the needed protection. An internal pressure regulator is attached to the valve, reducing the pressure between 9.5 and 10.5 in. WC.

• Side Outlet: The outlet is at a 90° angle from the inlet
• 3/8" Male Flared Connection: The inlet is 3/8" Male Flare and the outlet is a female fitting for the orifice (not included)
• Dual-Solenoid Valves: Offers efficient operation and protection
• 12V DC: Powered by a 12V DC control board

AFSAD12111, AFSD12111, AFSD16111, AFSD20111, AFSAD12121, AFSD12121, AFSD16121, AFSD20121, AFSAD12131, AFSD12131, AFSD16131, AFSD20131, AFSAD12141, AFSD12141, AFSD16141, AFSD20141, AFMD16111, AFMD20111, AFMD25111, AFMD30111, AFMD35111, AFMD16121, AFMD20121, AFMD25121, AFMD30121, AFMD35121, AFMD16131, AFMD20131, AFMD25131, AFMD30131, AFMD35131, AFMD16141, AFMD20141, AFMD25141, AFMD30141, AFMD35141, AFMD16151, AFMD20151, AFMD25151, AFMD30151, AFMD35151, DFMD16111, DFMD16121
