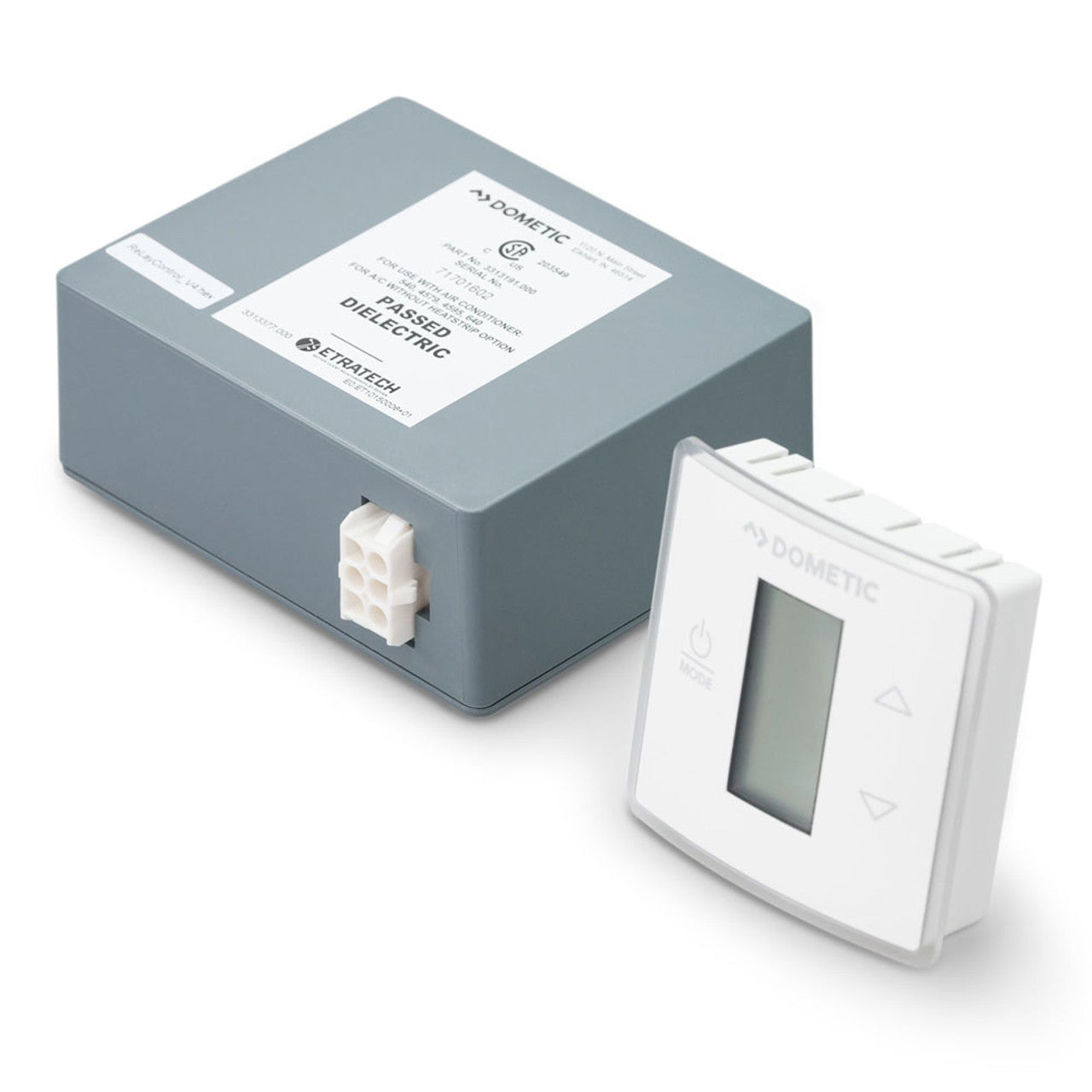

Dometic CT Thermostat + Control Board Kit | 3316230.700 | White

Restore complete climate control to your RV with the Dometic 3316230.700 Single Zone CT Thermostat Kit with Control Board (Cool/Furnace, White). Complete kit includes the CT thermostat (white) plus the matching control board — pairs with a Dometic AC for single-zone cooling and furnace control. Advanced capacitive-touch interface replaces physical buttons for a modern, clean look.

Prefer Black Instead?

Also available in black as the Dometic 3316230.714 CT Thermostat Kit — Black. Same functionality — black finish for modern trim schemes.

Complete Kit vs Thermostat-Only

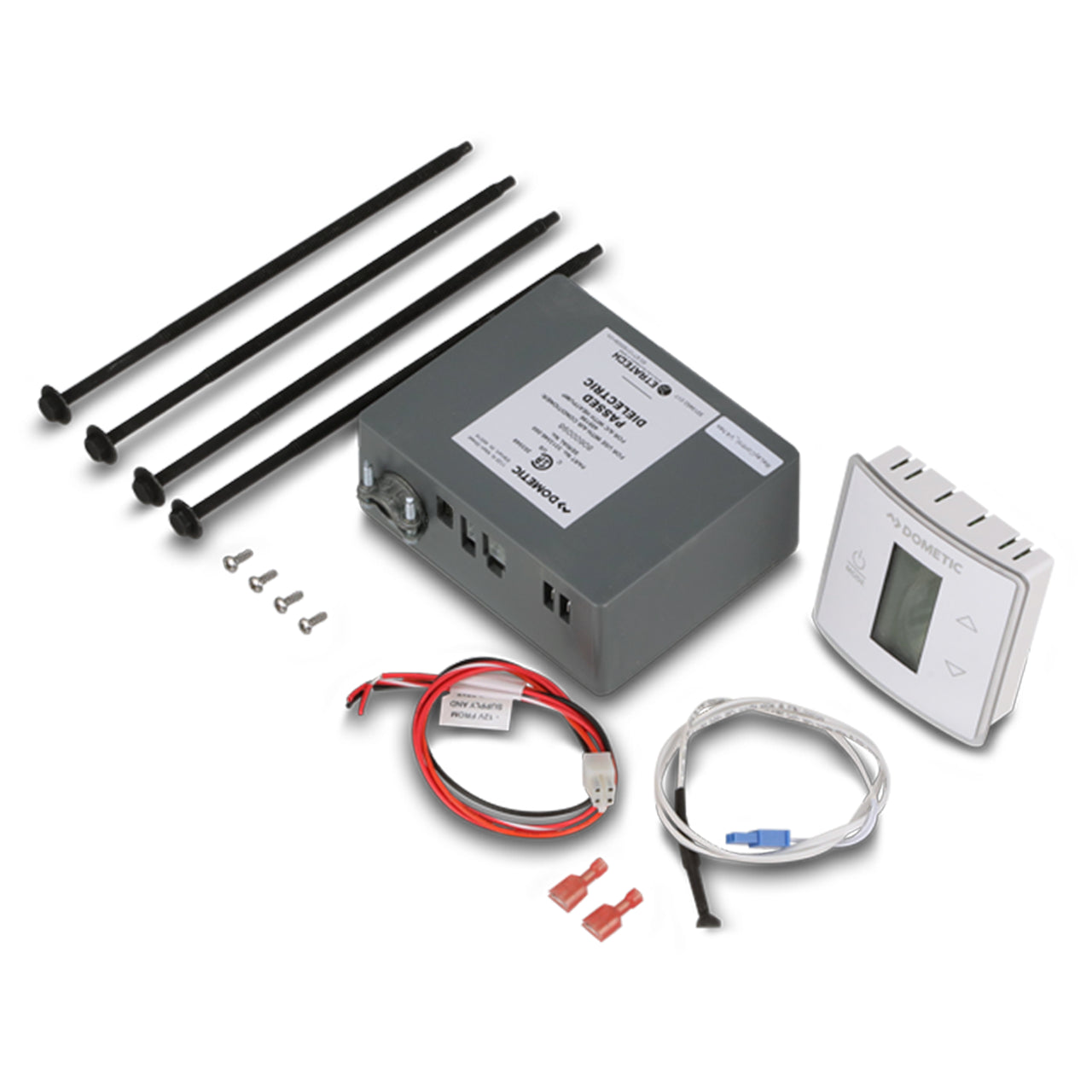

This is the complete kit — includes:

• CT Thermostat (White) — same as Dometic 3316250.700 CT Single Zone Thermostat (White)

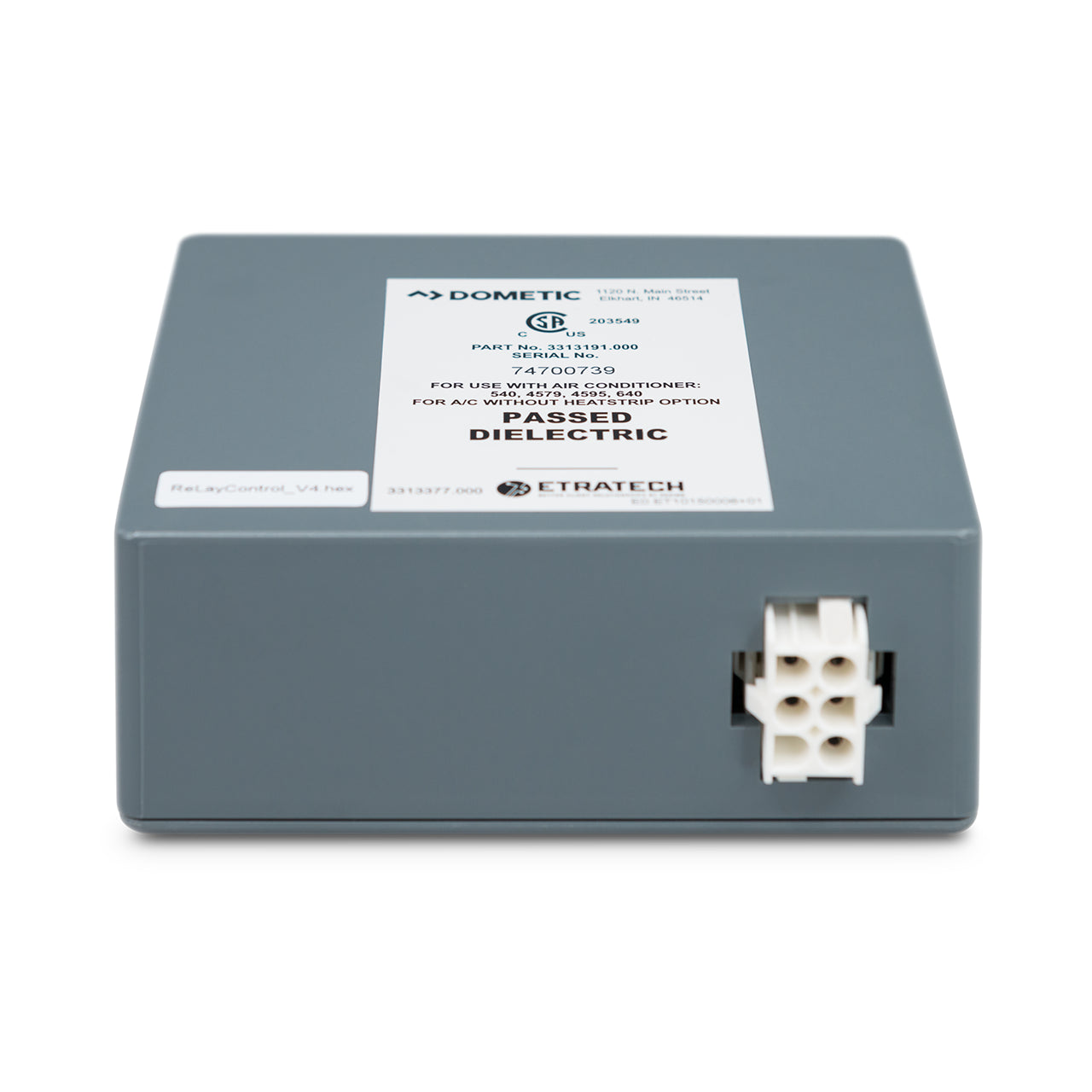

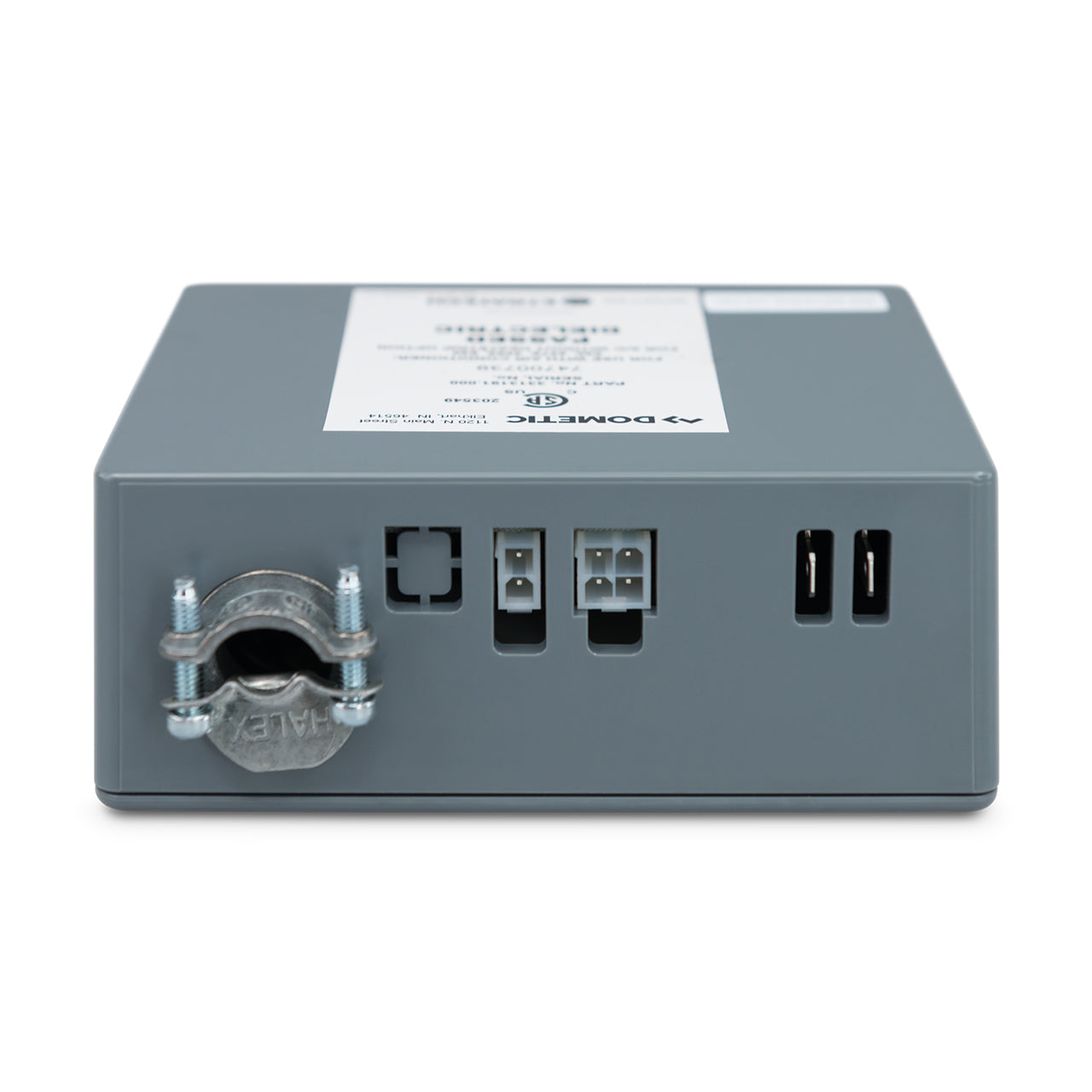

• Matching control board — Part #3313191.000

If your existing control board is still functional and you only need to replace the thermostat, order the standalone thermostat:

• Dometic 3316250.700 CT Single Zone Thermostat — White (standalone)
• Dometic 3316250.712 CT Single Zone Thermostat — Black (standalone)

Capacitive-Touch Interface

Instead of physical buttons, the CT Thermostat uses captive sensor technology:

• Three input areas — gentle taps for full climate control access
• Display lights up on touch — shows temperature, mode, and setpoint
• Large custom LCD display with blue LED backlight for low-light readability
• Three capacitive-touch graphic symbols — simple to understand and operate

Cooling, Furnace, and Fan Control

• Single-Zone Control — operates one Dometic air conditioner
• Cool, Furnace, and Fan Modes
• Low, High, and Auto fan speed modes
• Manual or automatic operation
• Ducted or non-ducted rooftop AC compatible

⚠️ Furnace Control Requires Dometic A/C

Important operational note: this thermostat CANNOT control a furnace without a Dometic A/C in the system. If your setup uses a non-Dometic A/C or no A/C at all, the furnace control function will not operate.

⚠️ No Bluetooth

The 3316230.700 does NOT have Bluetooth capabilities. For remote wireless control, consider the smart upgrade path — Micro-Air EasyTouch RV 351 (available in White or Black) with WiFi/Bluetooth + smartphone app.

Compatible Dometic Air Conditioners

Works with these Dometic AC units:

• Brisk Air II: B57915, B59516, B59530, 457915, 459530
• Penguin: 640310, 640312, 640315
• Heat Pump Variants: H540315
• Other: 45916, 540315, 540316

Cross-Reference Part Numbers

• Kit Part Number: 3316230.700
• SKU: 9600024570
• Included Control Board Part: 3313191.000

Installation Reference

Reference video: Dometic CT Thermostat Installation Video

⚠️ Professional Installation Recommended

Involves 12V DC electrical wiring and integration with the Dometic AC control system. Installation should be performed by a qualified RV service technician.

1-Year RV Surplus Warranty

Genuine Dometic OEM

Key Features

• Genuine Dometic OEM CT Single Zone thermostat kit
• Kit part number: 3316230.700 (SKU 9600024570)
• Includes CT Thermostat (White) — same as standalone 3316250.700
• Includes control board — Part #3313191.000
• Black color sibling available: Dometic 3316230.714 (Black Kit)
• Capacitive-touch controls — no physical buttons
• Large custom LCD display with blue LED backlight
• Cool, Furnace, and Fan modes
• Single-zone control — operates one Dometic AC
• NO Bluetooth (use Micro-Air EasyTouch 351 for smart control)
• Compatible with Brisk Air II, Penguin, and Heat Pump variants
• Backed by 1-year RV Surplus warranty

Specifications

• Brand: Dometic
• Kit Part Number: 3316230.700
• SKU: 9600024570
• Included Thermostat: CT Single Zone (White) — 3316250.700
• Included Control Board: 3313191.000
• Type: CT Single Zone Thermostat + Control Board Kit
• Color: White
• Black Kit Sibling: 3316230.714
• Interface: Capacitive-touch (3 input areas)
• Display: Large custom LCD with blue LED backlight
• Modes: Cool / Furnace / Fan (Low, High, Auto)
• Zones: Single
• Operation: Manual or automatic
• AC Compatibility: Ducted and non-ducted rooftop AC
• Bluetooth: NO
• Furnace Control Requirement: Requires Dometic A/C in system
• Compatible Dometic ACs: Brisk Air II (B57915/B59516/B59530/457915/459530), Penguin (640310/640312/640315), Heat Pump variants (H540315), others (45916, 540315, 540316)
• Standalone Thermostat Alternative (same white CT): 3316250.700
• Smart Upgrade Path: Micro-Air EasyTouch RV 351 (White or Black)
• Warranty: 1-year RV Surplus warranty
