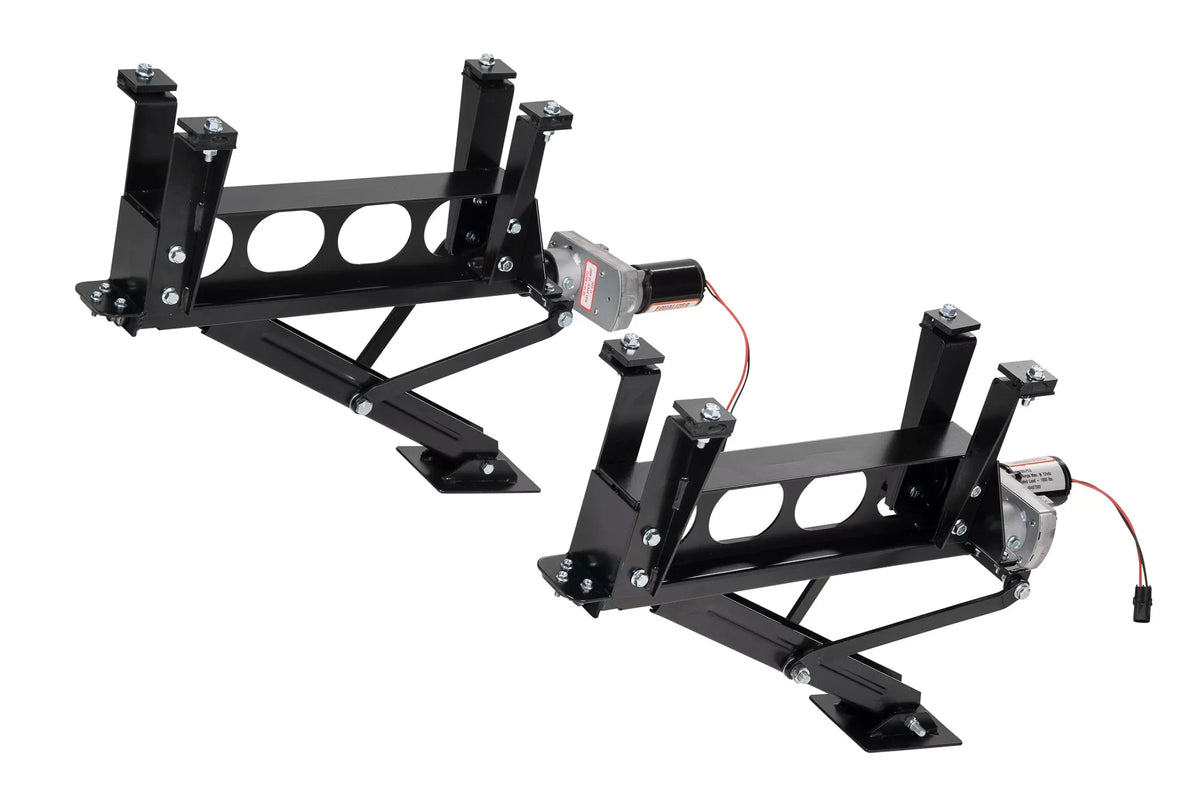

STABI-LITE® Electric Stabilizer System | Sprinter Class C | Clamp-On No-Weld Install

STABI-LITE® Electric Stabilizer System | Sprinter Class C | Clamp-On No-Weld Install

$1,155.25 USD
$1,155.25 USD
Sale Sold out
Shipping calculated at checkout.

Eliminate coach lean and sway with the STABI-LITE® Electric Stabilizer System for Sprinter Class C — an electric screw-jack stabilizer that stops your Class B/C motorhome from leaning when the slide extends and takes nearly all the sway out when someone walks around inside. This is a stabilizer, not a leveler: motor-driven screw jacks steady the coach rather than lift it. Available at The RV Surplus.

Fitment critical: Verify compatibility before ordering. Email getlevel@eqsystems.us or call EQ Systems at 800-846-9659.

⭐ Stops Slide-Out Lean and Coach Sway

  • Eliminates coach lean when the slide is extended
  • Eliminates nearly all sway from movement inside the coach
  • Adjustable lifting force per leg brings a slide-out coach to a more level state

⭐ Clamp-On Install — No Welding, No Drilling

  • Chassis-specific design reduces installation time
  • Clamp-style mount — no welding or drilling required
  • Sprinter version uses box-frame brackets (see mount spacing print)

⭐ Low-Profile, Lightweight

  • Low-profile design needs less height than traditional systems
  • Complete system weight under 80 lbs
  • One-touch automatic operation

What's In The System (8450AM)

  • Two stabilizer jacks and risers
  • Clamping mounts for each stabilizer assembly
  • All necessary mounting hardware
  • Complete system wire harnesses
  • System controller and switch pad

Harnesses and Mounting

Kit includes two controller-to-motor harnesses at 7 ft and 12 ft, a 16 ft controller-to-switch-panel harness, an 8 ft controller-to-battery harness, and a 40A circuit breaker for the battery connection. The controller mounts close to the battery — in a sealed baggage compartment, cabinet, or under the dash. The switch panel and controller are NOT weather resistant and must go in protected areas. Motor harnesses are color-coded: gray/pink for leg 1 and purple/brown for leg 2.

Safety Interlocks

One or more interlocks must be connected so that extend is denied with the ignition key on or the park brake released. Only one is required to disable extension.

Maintenance

The leg is a screw jack — screw and nut must be kept clean and dry. Wash with a wet rag or mild detergent — never a pressure washer. Don't spray cleaner heavily onto the motor gearbox. Lubricate pivot points and screw/nut with dry film silicone or PTFE spray only. Oily/greasy lubricants attract dirt and cause screw and nut problems.

Service Parts

Documents

Other STABI-LITE Options

1-Year Warranty

Backed by EQ Systems' 1-year manufacturer warranty. Check your operation manual for full terms.

Specifications

  • Brand: EQ Systems
  • Model: STABI-LITE® Electric Stabilizer
  • SKU: 8450AM

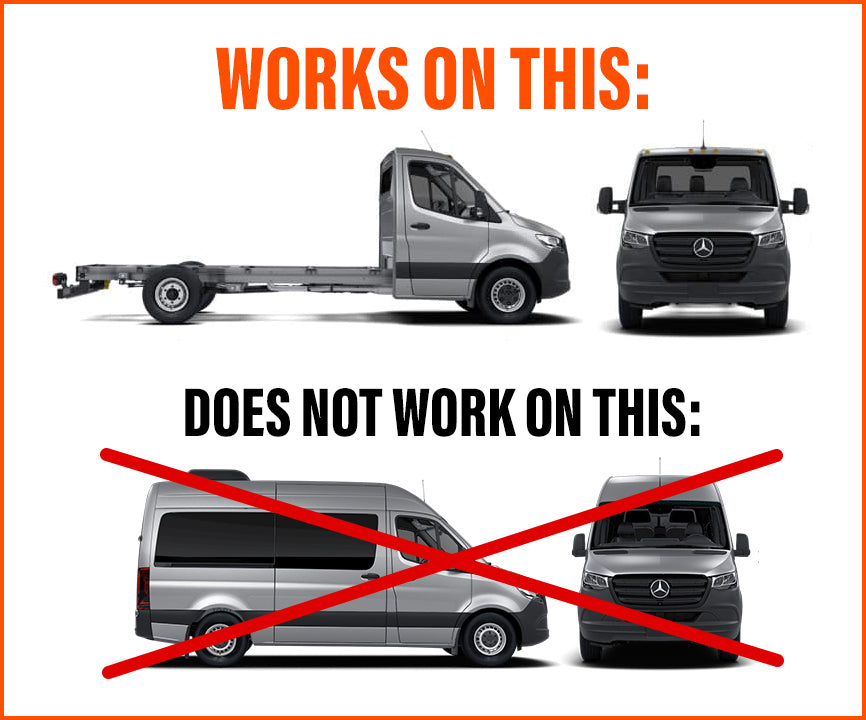

  • Fitment: Sprinter Class B/C chassis
  • Type: Electric screw-jack stabilizer (NOT a leveler)
  • Configuration: 2 legs
  • Leg Travel: ~16½"
  • System Weight: Under 80 lbs
  • Installation: Clamp-on box-frame brackets (no welding/drilling)
  • Power: 12V DC with 40A circuit breaker
  • Controller: Non-weather-resistant (install in protected area)
  • Lubricant: Dry film silicone or PTFE spray ONLY
  • Warranty: 1-year manufacturer warranty
