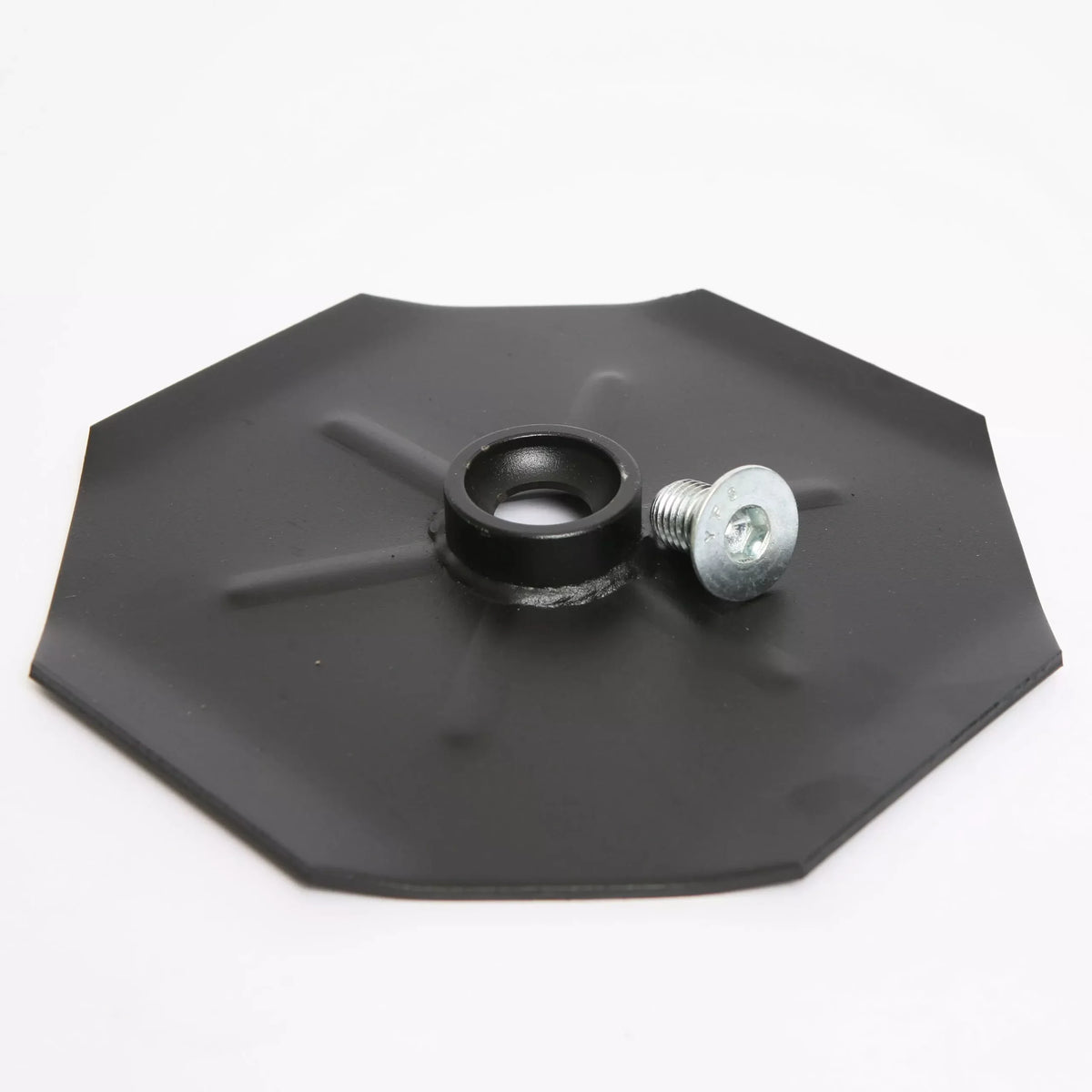

EQ Systems 10×10 Foot Pad #7849 | With Bolt | SL 14/16/24 No Leg Switch

Replace a worn, bent, or missing 10×10 inch foot pad on your EQ Systems hydraulic jack with the EQ Systems 10×10 Foot Pad with Bolt (Part 7849). Supplied with the bolt. Version for jack legs WITHOUT a leg switch. Available at The RV Surplus.

⭐ Fits These SL Jacks

• SL 14 (7614) — 2⅞" body plate mount, 18⅛" body (Obsolete — contact EQ Systems)
• SL 16 (7214) — 2⅞" body plate mount, 21⅛" body (was 20⅛" before 2023) — 12,000 lb capacity
• SL 24 (70073) — 2⅞" body plate mount, 28⅜" body (Obsolete — replaced by 70217)
• Bumper pull tongue jacks per the original catalog listing — verify against identification charts before ordering

⭐ Identifying the Right Pad

Measure your existing pad before ordering. An octagon pad is measured across the flats; a round pad across the diameter. Then confirm the jack:

• Body length = fixed outer body of jack, measured with jack retracted
• Plate/bracket position = measured from closed end of body; positive toward foot, negative past closed end

⚠️ Replace Damaged Pads Promptly (Leg-Switch Systems)

• Missing foot → won't operate the switch at all
• Bent or distorted foot → may not activate properly
• Foot bent upward → can damage or destroy the switch

Documents

• Jack Replacement Cylinder and Foot Identification Chart (PDF)
• Required Maintenance Items for EQ Hydraulic Jacks & Slide Systems (PDF)

Other Foot Pads

• 7×7 Foot Pad #70385 — SL 11/12/13 no leg switch
• 10×10 Foot Pad #7818 — SL 15 with screw
• 10×10 Foot Pad #7819 — SL 16 (7114) WITH leg switch
• 12×12 Foot Pad #7821 — SL 18/24 without leg switch
• 12×12 Foot Pad #7820 — SL 18/24 WITH leg switch

90-Day Warranty

Backed by EQ Systems' 90-day replacement part warranty. Check documentation for full terms.

Specifications

• Brand: EQ Systems
• Model: 10×10 Foot Pad with Bolt
• SKU: 7849
• Dimensions: 10" × 10" square
• Included: Bolt
• For: Jack legs WITHOUT leg switch
• Fits: SL 14 (obsolete), SL 16 (7214), SL 24 (obsolete 70073), bumper-pull tongue jacks
• Warranty: 90-day replacement part warranty
