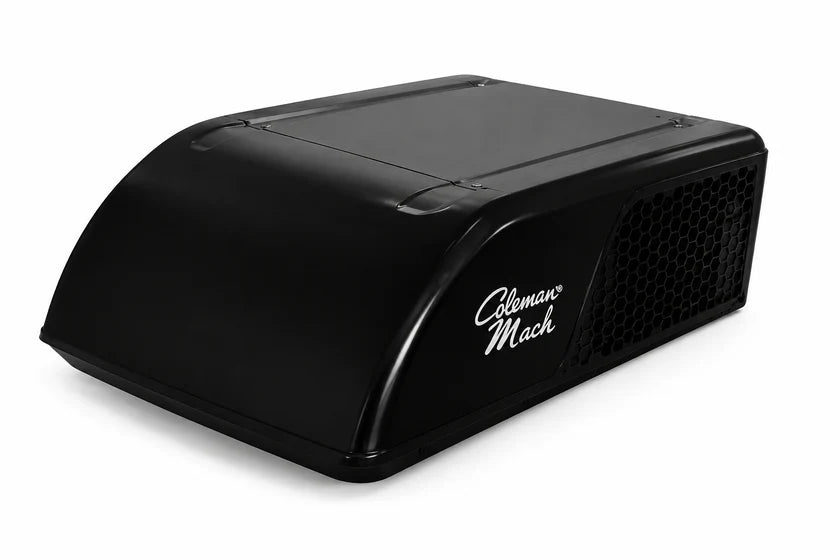

Coleman Mach 15 Heat Pump RV AC | 38004-067 | 15K BTU | Black

Upgrade your RV comfort with the Coleman Mach 15 Heat Pump RV Air Conditioner (Part #38004-067 / Legacy 38004-069) in black — 15,000 BTU cooling capacity plus integrated heat pump for year-round comfort. R-32 next-generation refrigerant, 320 CFM airflow, fits any standard 14"×14" roof opening. Updated 2026 black textured shroud design (direct replacement for legacy 38004-069).

Prefer Arctic White Instead?

Also available in arctic white as the Coleman Mach 15 Heat Pump RV AC (38004-064) — Arctic White. Same construction and features — arctic white textured shroud finish.

⭐ 15,000 BTU Cooling + Integrated Heat Pump

Powerful year-round comfort from a single rooftop unit:

• 15,000 BTU cooling capacity — high-output cooling for large RVs, motorhomes, and demanding heat conditions
• Integrated heat pump — supplemental electric heating without propane usage
• 320 CFM airflow — consistent, refreshing air movement throughout the RV

Prefer Low-Amp Cool-Only Power Saver?

For a cool-only Mach 15 with the Power Saver EZ low-amp compressor technology (meaningful for 30-amp service or generator power), see the Coleman Mach 15 Quiet Power Saver (38209-0640) — Arctic White. Cool-only (no heat pump), but draws just 11.2A vs the standard Mach 15's 14.9A.

⭐ 2026 Production Change — Updated Shroud Design

Important production note: Coleman has implemented a running production change to the Mach 15 Heat Pump rooftop AC line:

• New model: 38004-067 — features the updated 2026 black textured shroud design
• Legacy model: 38004-069 — being phased out
• Direct replacement: The 38004-067 is the direct successor to the 38004-069

Customers ordering either SKU may receive the new 38004-067 due to the production change. The compatibility, cooling capacity, fitment, functionality, and performance specifications remain equivalent — the primary change is the updated exterior shroud styling.

R-32 Next-Generation Refrigerant

Uses R-32 refrigerant — the next-generation low-GWP refrigerant that replaces R-410A in current Coleman Mach production:

• Approximately 70% lower global warming potential than R-410A
• Zero ozone depletion potential
• Improved energy efficiency in many operating conditions vs R-410A
• Meets 2025 EPA AIM Act refrigerant requirements

Note: R-32 is classified as A2L (mildly flammable) — service must be performed by a qualified technician using appropriate equipment.

Replaces Older R-410A Predecessor

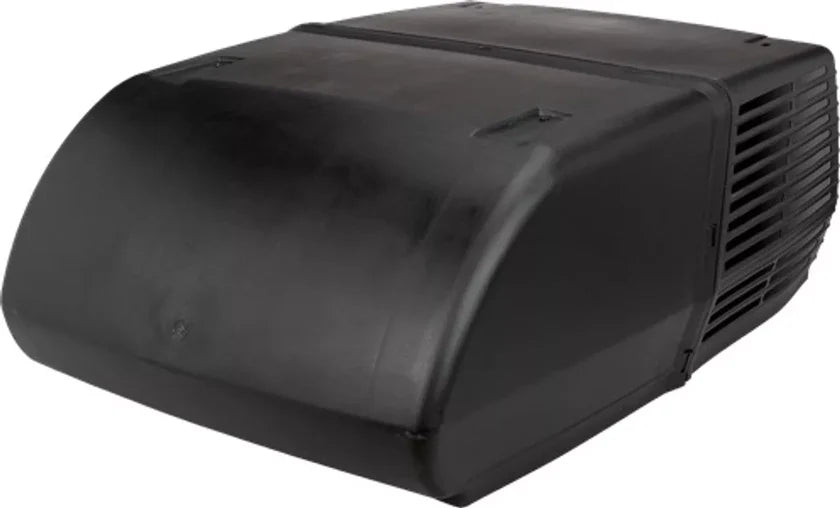

The 38004-067 (and legacy 38004-069) replaces the older R-410A generation Mach 15 Heat Pump:

• Replaces 48004-069 (R-410A predecessor)

If your existing Mach 15 Heat Pump carries the 48004-069 part number, this is the modern R-32 successor. Mounting footprint and ceiling assembly compatibility remain the same.

⭐ Universal 14" × 14" Roof Opening Fitment

Fits any 14" × 14" RV roof opening — the industry-standard AC roof opening size. Easy replacement for most existing rooftop AC installations without cutting sheet metal.

Ducted OR Non-Ducted Installation

Versatile installation flexibility — works with both ducted AND non-ducted systems. Suits varied RV configurations and preferences.

⭐ Pre-Installed Roof Compression Gasket

All new replacement RV air conditioner units come with a pre-installed roof compression gasket on the base of the unit. Provides a proper seal between the AC and the RV roof — ensures a secure and leak-resistant installation. No additional sealant or roof gasket required for the rooftop AC unit.

⚠️ Ceiling Assembly Required — Sold Separately

The 38004-067 is the upper (rooftop) unit only. A complete installation requires a compatible ceiling assembly (ducted or non-ducted, sold separately) based on your configuration.

Related Coleman Mach Air Conditioners

Other Coleman Mach models in the catalog:

• Coleman Mach 3 Plus RV AC (38203-066) — 13.5K BTU Textured White — mid-range choice
• Coleman Signature Mach 3 (13.5K BTU) available in Polished White, Arctic White, and Polished Black finishes
• Coleman Mach 10 (35024-0792) — 15K BTU Heat Pump with built-in condensate pump

Size and Weight

• Height: 13.8"
• Width: 26.1"
• Length: 38.0"
• Weight: 85 lbs

Cross-Reference Part Numbers

• Current SKU: 38004-067
• UPC: 755790008438
• Legacy SKU (being phased out): 38004-069
• R-410A Predecessor: 48004-069

Black Textured Finish

Updated 2026 black textured shroud design.

⚠️ Professional Installation Required

Installation involves rooftop mounting, weather sealing, 115V AC electrical wiring, control network wiring, ceiling assembly integration, and thermostat integration. Installation should be performed by a qualified RV service technician.

2-Year Factory Warranty

Genuine Coleman Mach OEM

Key Features

• Genuine Coleman Mach OEM Mach 15 rooftop AC with heat pump
• Current SKU: 38004-067 (2026 updated black textured shroud)
• Legacy SKU: 38004-069 (being phased out — 38004-067 ships as replacement)
• R-410A predecessor: 48004-069
• UPC: 755790008438
• 15,000 BTU cooling capacity
• Integrated heat pump for year-round comfort
• 320 CFM airflow
• R-32 next-generation refrigerant — 70% lower GWP vs R-410A
• Fits any 14" × 14" roof opening — universal RV AC opening compatibility
• Ducted OR non-ducted installation
• Pre-installed roof compression gasket — no additional sealant required
• Ceiling assembly required — sold separately
• Updated 2026 black textured shroud design
• Dimensions: 13.8"H × 26.1"W × 38.0"L, 85 lbs
• Backed by 2-year factory warranty

Specifications

• Brand: Coleman Mach / Airxcel
• Series: Mach 15
• Current Part Number: 38004-067
• UPC: 755790008438
• Legacy Part Number: 38004-069 (being phased out)
• R-410A Predecessor: 48004-069
• Type: RV Rooftop Air Conditioner with Heat Pump
• Cooling Capacity: 15,000 BTU
• Airflow: 320 CFM
• Heat Pump: Yes (integrated electric heating)
• Refrigerant: R-32 (Low-GWP, A2L class)
• Configuration: Ducted OR Non-Ducted
• Roof Opening Requirement: 14" × 14"
• Height: 13.8"
• Width: 26.1"
• Length: 38.0"
• Weight: 85 lbs
• Color/Finish: Black textured (updated 2026 shroud design)
• Roof Gasket: Pre-installed compression gasket included
• Ceiling Assembly: Required, sold separately
• Warranty: 2-year factory warranty
