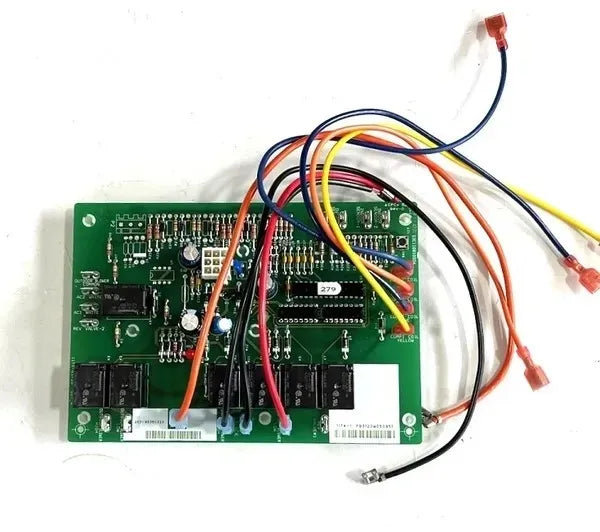

Coleman-Mach Air Conditioner Control Board | 5 Part Numbers

One board instead of a handful of relays. Coleman-Mach Control Boards consolidate several electrical functions onto a single device, simplifying wiring and improving reliability.

Fitment

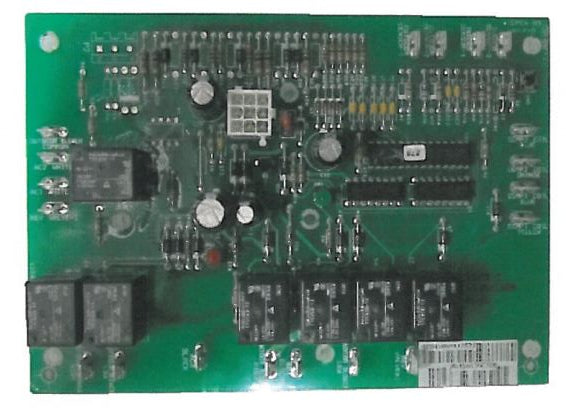

• 6535C3209 — 6535-series (two-ton central) units
• 6536C3209 — 6536-series units
• 8330-3612 — 8330-series ducted ceiling assemblies
• 9430-5501 — 9430-series ceiling assemblies
• 6636A3209 — two-stage PC board kit for 6636 / 6795 basement air conditioners

⚠️ Match Your Model

Coleman-Mach parts are model-specific. Find the model number on the data plate under the shroud (or on the ceiling assembly) and match it to the fitment list; Match the number on your old part or send us the model number. Disconnect shore power and the generator before opening the unit.

Key Features

• Genuine Coleman-Mach
• Consolidates electrical functions
• Limited 90-day supplier warranty

Specifications

• Brand: Coleman-Mach
• Type: Control Board
• Options: 6535C3209; 6536C3209; 8330-3612
