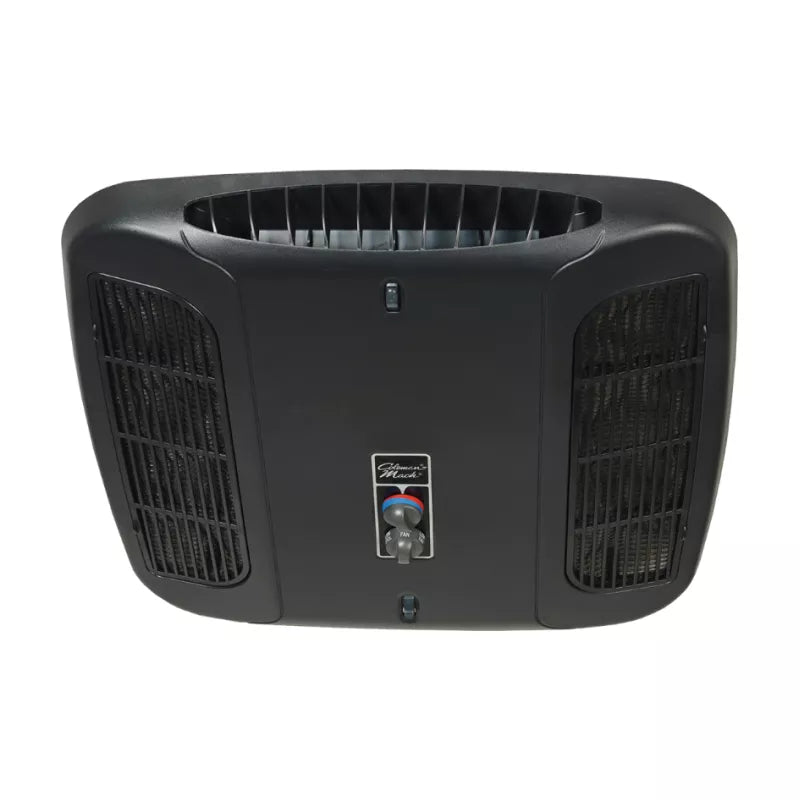

Coleman-Mach Non-Ducted Heat-Ready Ceiling Assembly | 9430A717

One ceiling assembly for any non-ducted Coleman-Mach. The 9430A717 isn't model-specific — it fits every non-ducted Coleman-Mach rooftop regardless of height or BTU — with high-efficiency air distribution in a 2"-deep low-profile box. Includes mounting frame, bolts, and duct collar, and it's wired to control an optional heat strip.

⚠️ Not for Heat Pumps

Cool-only assembly with heat-strip control; will not work with heat pump units. Heat strips: Mach 8 uses 47233-4551; all other Coleman-Mach units use 9233A4551. United RV lists this assembly as black; Coleman's description says white — confirm color before ordering. Replaces 9330F715 and 08-0059.

Key Features

• Fits any non-ducted Coleman-Mach — not model-specific
• Low-profile 19" x 20" x 2"
• Mounting frame, bolts, duct collar included
• Heat-strip ready
• Limited 2-year warranty

Specifications

• Brand: Coleman-Mach
• Part Number: 9430A717 (9430-717)
• Type: Non-Ducted Ceiling Assembly
• Size: 19" x 20" x 2"
• Replaces: 9330F715, 08-0059
