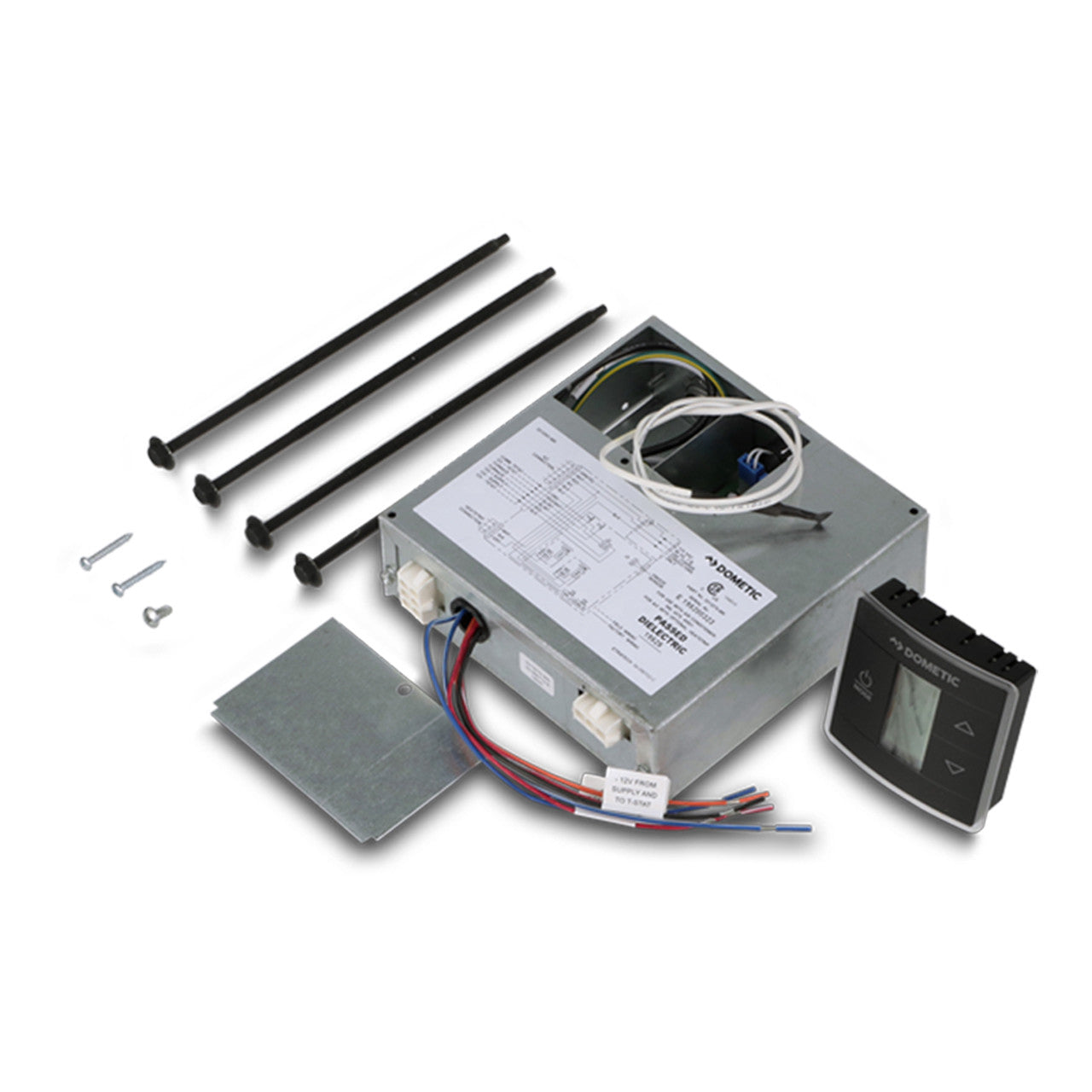

Dometic CT Thermostat Kit | 3316232.710 | Heat Strip | Black

Restore complete climate control to your RV with the Dometic Duo-Therm 3316232.710 Single Zone CT Thermostat Kit with Control Board (Cool/Furnace/HEAT STRIP, Black). Complete kit includes CT thermostat + matching control board — the heat strip variant that pairs with heat-strip-equipped Dometic ACs for single-zone cooling, furnace, and heat strip control.

Prefer White Instead?

Also available in white as the Dometic 3316232.700 CT Thermostat + Control Board Heat Strip Kit (White). Same components, white finish for traditional interiors.

⭐ HEAT STRIP Variant — Key Differentiator

This kit is the heat strip variant — adds heat strip control to the CT thermostat kit family. Distinguished from the standard Cool/Furnace kit (3316230.700 / 3316230.714) by the addition of heat strip mode support.

Verify your existing installation is a heat-strip-equipped Dometic AC before ordering. If your AC does not have a heat strip installed, order the Cool/Furnace-only kit (3316230.700 white or 3316230.714 black) instead.

Capacitive-Touch Interface

Instead of physical buttons, the CT Thermostat uses captive sensor technology:

• Three input areas — gentle taps for full climate control access
• Display lights up on touch — shows temperature, mode, and setpoint
• Large custom LCD display with blue LED backlight for low-light readability
• Three capacitive-touch graphic symbols — simple to understand and operate

Cool, Heat Strip, Furnace, and Fan Control

• Single-Zone Control — operates one Dometic air conditioner
• Cool Mode
• Heat Strip Mode — the key differentiator vs standard kit
• Furnace Mode
• Fan Mode — Low, High, Auto
• Manual or automatic operation
• Ducted or non-ducted rooftop AC compatible

⚠️ Furnace Control Requires Dometic A/C

Important operational note: this thermostat CANNOT control a furnace without a Dometic A/C in the system. If your setup uses a non-Dometic A/C or no A/C at all, the furnace control function will not operate.

Compatible Dometic Air Conditioners

Works with these Dometic AC units (heat-strip-equipped Brisk Air II variants):

• B57915
• B59516
• B59530

Cross-Reference Part Numbers

• Kit Part Number: 3316232.710
• Alt Part Number: 3316232.000

Installation Reference

Reference video: Dometic CT Thermostat Installation Video

⚠️ Professional Installation Recommended

Involves 12V DC electrical wiring and integration with the Dometic AC control system, including heat strip circuits. Installation should be performed by a qualified RV service technician.

1-Year Manufacturer Warranty

Genuine Dometic OEM

Key Features

• Genuine Dometic (Duo-Therm) OEM CT Single Zone thermostat kit — HEAT STRIP variant
• Kit part number: 3316232.710 (alt: 3316232.000)
• White color sibling available: 3316232.700
• Heat strip mode — key differentiator vs standard Cool/Furnace kits
• Capacitive-touch controls — no physical buttons
• Large custom LCD display with blue LED backlight
• Cool + Heat Strip + Furnace + Fan modes
• Single-zone control — operates one Dometic AC
• Black finish
• Compatible with heat-strip-equipped Brisk Air II variants (B57915, B59516, B59530)
• Backed by 1-year manufacturer warranty

Specifications

• Brand: Dometic (Duo-Therm)
• Kit Part Number: 3316232.710
• Alt Part Number: 3316232.000
• Type: CT Single Zone Thermostat + Control Board Kit (HEAT STRIP variant)
• Color: Black
• White Color Sibling: Dometic 3316232.700
• Interface: Capacitive-touch (3 input areas)
• Display: Large custom LCD with blue LED backlight
• Modes: Cool / Heat Strip / Furnace / Fan (Low, High, Auto)
• Zones: Single
• Operation: Manual or automatic
• AC Compatibility: Ducted and non-ducted rooftop AC (heat-strip-equipped)
• Furnace Control Requirement: Requires Dometic A/C in system
• Compatible Dometic ACs: B57915, B59516, B59530
• Warranty: 1-year manufacturer warranty
