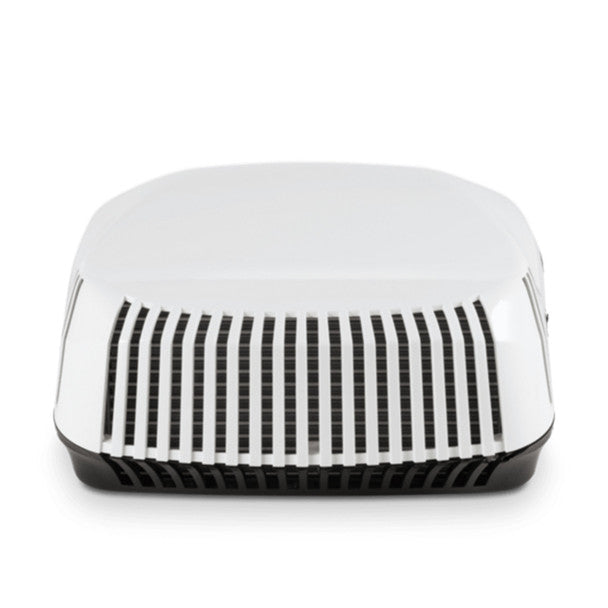

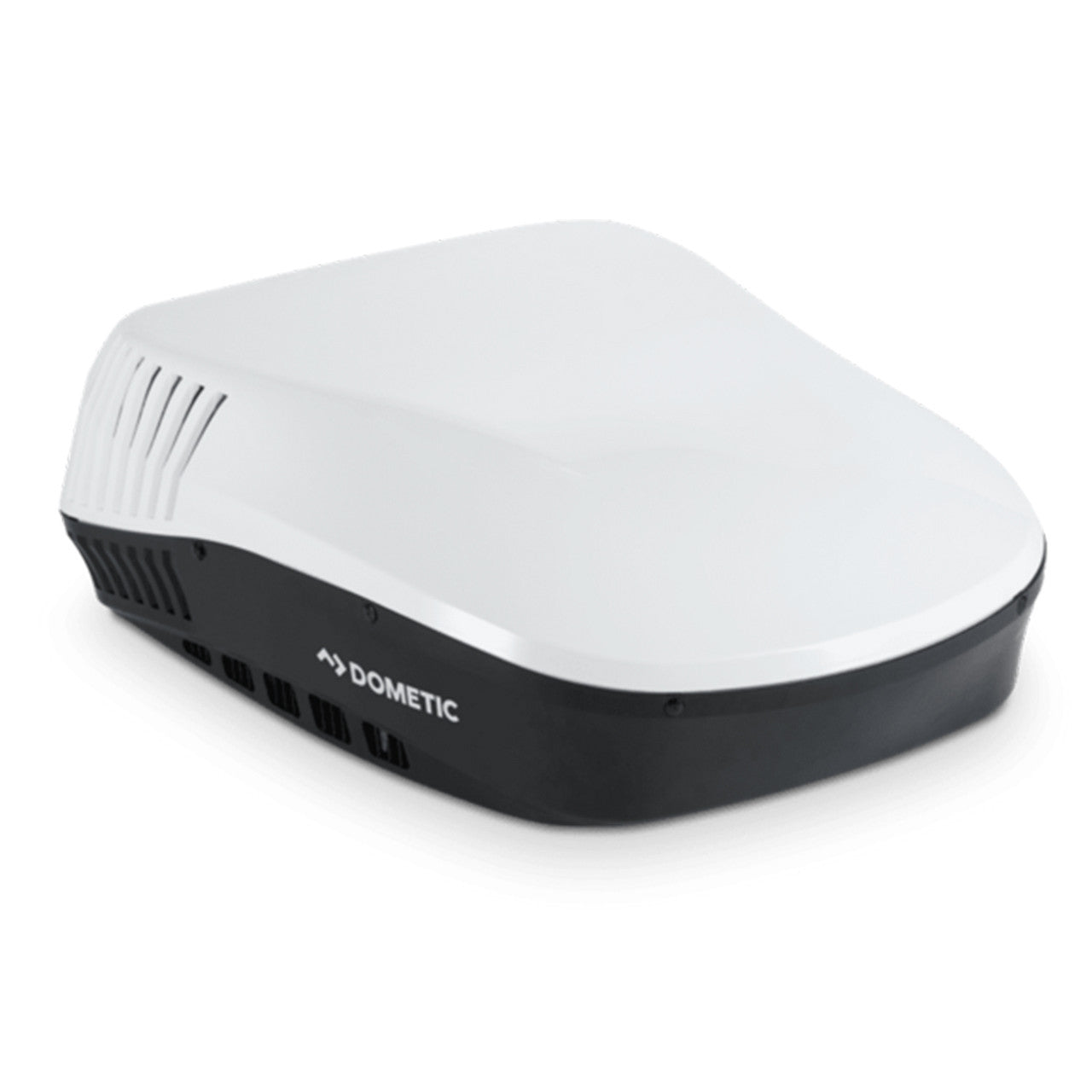

Dometic Blizzard NXT RV AC | 13.5K BTU | Single-Zone | Cooling | White

Cool your RV with the Dometic Blizzard NXT RV Air Conditioner (H541915AXX1C0) — 13,500 BTU of powerful cooling, single-zone control, cooling-only functionality, and Dometic's most refined rooftop AC design. Aerodynamic white shroud, industry-leading 350 CFM airflow, and R410A environmentally-friendly refrigerant.

Where This Variant Fits in the Blizzard NXT Lineup

The Blizzard NXT comes in multiple configurations. This variant is specifically:

• 13,500 BTU cooling capacity (vs 15K variants)
• Cooling only — NO heat pump
• Single-zone control — NOT multi-zone
• White finish

Comparable variants in the Blizzard NXT family:

• Need more cooling capacity? See the Dometic Blizzard NXT — 15K BTU, Single-Zone, Cooling Only, White (H541916AXX1C0)
• Need heat pump + multi-zone? See the Dometic Blizzard NXT — 15K BTU, Multi-Zone, Heat Pump, Black (H551816AXX1J0)

13,500 BTU Cooling

• 13,500 BTU nominal cooling capacity
• Cooling-only configuration (no heat pump)

Ideal for smaller RVs, mid-size trailers, or installations where 15K BTU would be oversized.

Industry-Leading 350 CFM Airflow

The Blizzard NXT stands out with its 350 CFM airflow system:

• High-output fan and motor combination
• Efficient air distribution across the evaporator coils
• Faster cooling down times
• Better temperature consistency even in extreme heat
• Improved energy performance

Single-Zone Control

Includes a pre-installed electronic board that supports Single-Zone control — pairs with compatible Dometic single-zone thermostats:

• Dometic CT 3316250.712 (Black)
• Dometic CT 3316250.700 (White)
• Micro-Air EasyTouch 351 (Black) — smart WiFi upgrade path
• Micro-Air EasyTouch 351 (White) — smart WiFi upgrade path

Aerodynamic Design

• Sleek modern styling that reduces wind resistance
• Improved fuel efficiency at highway speeds
• High-impact UV-stable injection-molded shroud — withstands extreme sun exposure
• Composite base pan engineered for durability
• Long-term durability under environmental extremes

Quiet Operation

Built-in vibration isolation minimizes compressor noise — meaningfully quieter than legacy rooftop AC designs.

Environmentally-Friendly R410A Refrigerant

Uses R410A refrigerant — releases heat more efficiently than older refrigerants and is environmentally friendly.

White Finish

Clean white finish complements traditional RV exterior color schemes.

⚠️ Cosmetic Note

The AC shroud may show small scuffs or scratches on its surface, and small gaps along the shroud edge are a normal result of the manufacturing process — not considered blemishes.

Physical Dimensions

• Length: 40"
• Width: 30"
• Height Above Roof: 14"
• Cut-Out Required: 14" × 14" roof opening
• Installed Weight: 92 lbs

Electrical Specifications

• Primary Power: 120V AC, 60 Hz
• Additional: 12V DC (for wall controls only)

⚠️ Professional Installation Required

Involves rooftop mounting, weather sealing, 120V AC electrical wiring, and integration with your RV's ductwork and thermostat system. Installation should be performed by a qualified RV service technician.

2-Year Manufacturer Warranty

Genuine Dometic OEM

Key Features

• Genuine Dometic Blizzard NXT RV rooftop air conditioner
• Part number: H541915AXX1C0
• 13,500 BTU cooling capacity
• Cooling only (no heat pump)
• Single-zone control — pre-installed electronic board
• Industry-leading 350 CFM airflow
• Aerodynamic design for reduced drag and improved fuel efficiency
• High-impact UV-stable injection-molded shroud
• Composite base pan
• Vibration isolation for quieter operation
• Environmentally-friendly R410A refrigerant
• White finish
• Dimensions: 40" L × 30" W × 14" H above roof
• Cut-out: 14" × 14"
• Installed weight: 92 lbs
• 120V AC / 60Hz + 12V DC for controls
• Backed by 2-year manufacturer warranty

Specifications

• Brand: Dometic
• Model: Blizzard NXT
• Part Number: H541915AXX1C0
• Type: RV Rooftop Air Conditioner (Cooling Only)
• Nominal Cooling Capacity: 13,500 BTU/hr
• Heat Source: None (cooling only)
• Airflow: 350 CFM
• Refrigerant: R410A (environmentally friendly)
• Thermostat Zones: Single-zone (electronic board pre-installed)
• Power Source: 120V AC, 60 Hz
• Additional Electrical: 12V DC (wall controls only)
• Length: 40"
• Width: 30"
• Height Above Roof: 14"
• Cut-Out Requirement: 14" × 14" roof opening
• Installed Weight: 92 lbs
• Color: White
• Shroud: High-impact, UV-stable injection-molded
• Base Pan: Composite
• Noise Reduction: Vibration isolation
• Cosmetic Note: Minor shroud scuffs/scratches and small edge gaps from manufacturing are normal
• Warranty: 2-year manufacturer warranty
