EQ Smart-Level Hydraulic Leveling System | Sprinter 3500 | 2018 & Older

EQ Smart-Level Hydraulic Leveling System | Sprinter 3500 | 2018 & Older

$3,962.50 USD
$3,962.50 USD
Sale Sold out
Shipping calculated at checkout.

Level your 2018-and-older Mercedes Sprinter 3500-based Class B+ or Class C motorhome with the EQ Smart-Level Hydraulic Leveling System — a complete 4-point automatic leveling kit with 13-inch stroke jacks, patented clamp-on bracket mounting (Pat. 12,319,247), and no cutting, drilling, or welding to the frame. Bluetooth-enabled control lets you level from your phone. Available at The RV Surplus.

Fitment critical: Verify compatibility before ordering. Email getlevel@eqsystems.us or call EQ Systems at 800-846-9659.

⭐ Patented Clamp-On Installation — Pat. 12,319,247

  • No cutting, drilling, or welding to the Sprinter frame rails
  • Ships with clamp-on and box-bolt brackets for jack legs
  • Dedicated bracket for hydraulic pump mounting
  • Pump mounts virtually anywhere in the coach

⭐ Bluetooth Auto-Level with iPhone / Android

  • Level from your phone — Bluetooth-enabled controls
  • One-touch push-button operation
  • Sequential leveling for precision along the vehicle's full length
  • Accuracy within 1/2 degree of the set null point
  • Field-adjustable null — set the exact level position you want

⭐ Safety and Convenience Features

  • Audible and visual prompts during leveling and at completion
  • Drive-off warnings if jacks are still deployed
  • Auto All Retract stows all legs quickly
  • Multiple manual override options
  • 12V DC system

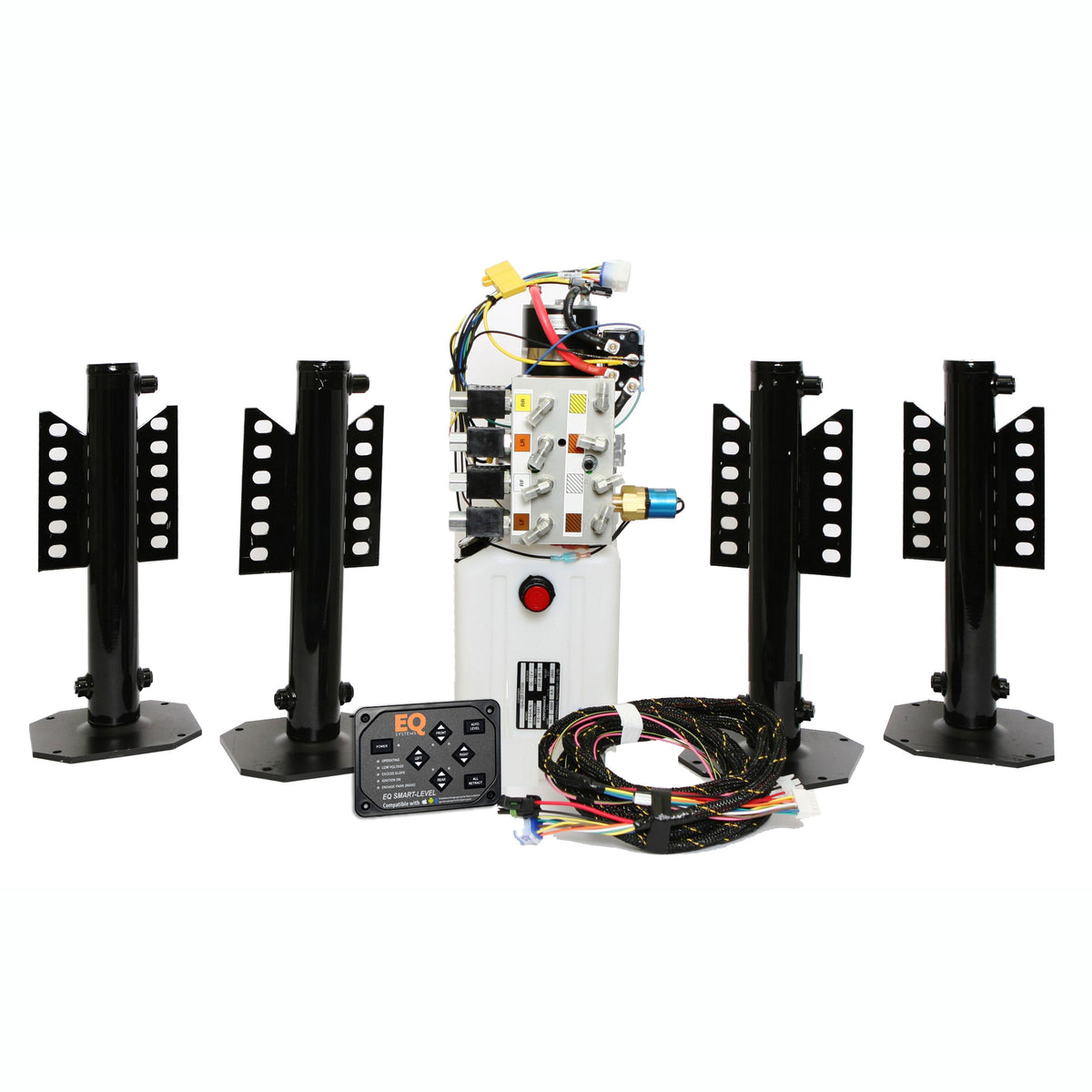

What's In The Kit

  • 13" stroke front and rear jacks (4 total)
  • Complete pump with manual override
  • EQ Smart-Level control system
  • All required harnesses and hoses
  • All mounting brackets and hardware

Hose Lengths and Fitment

Hoses ship at lengths listed in the fitment guide. If your pump/jack placement differs from standard, note desired hose lengths in the order or call EQ Systems at 800-846-9659 before ordering. Hoses available in 4-40 ft in 2-ft steps.

Click here for the Sprinter 2018 & Older fitment guide

Power Requirements

Load-test the battery before installing. EQ Systems requires a minimum of 150 amperes at 10.5 VDC for at least 30 seconds. Voltage at the control panel must not fall below 11V in operation; Auto-Level stops at 10.5V. Note: some lithium batteries cannot deliver the running amperage these pumps need.

After Installation

Set the null so the system knows the level position you want, then fill with Dexron III ATF to about one inch below the top of the reservoir with jacks retracted (level rises as jacks retract). Fit the vented breather cap in place of the shipping plug before running the system.

Documents

Compatible With Other Sprinter Model Years

Recommended Add-Ons

1-Year Warranty

Backed by EQ Systems' 1-year manufacturer warranty. Check your operation manual for full terms.

Specifications

  • Brand: EQ Systems
  • Model: EQ Smart-Level Hydraulic Leveling System
  • SKU: 8757UPS
  • Fitment: Mercedes Sprinter 3500 Cutaway Chassis, 2018 & Older (Class B+ or Class C)
  • Configuration: 4-point (front + rear jacks)
  • Jack Stroke: 13"
  • Patent: 12,319,247
  • Control: EQ Smart-Level (Bluetooth iOS/Android + push-button)
  • Leveling Accuracy: Within 1/2 degree
  • System Voltage: 12V DC
  • Power Requirement: 150A minimum at 10.5V for 30 seconds
  • Fluid: Dexron III ATF
  • Installation: Clamp-on bracket mounting (no cutting/drilling/welding)
  • Warranty: 1-year manufacturer warranty
