Furrion Chill Cube Variable Speed Air Distribution Box | 13.5K/15K

Pair your Furrion Chill Cube rooftop A/C with the Chill Cube Variable Speed Air Distribution Box with Remote (Part FACT11QV3-PS-AM, 2025066668, White) — the ceiling-mounted ADB that controls fan speed, operating mode, and temperature from a built-in keypad or the included remote. Works with both ducted and non-ducted Chill Cube configurations. Available at The RV Surplus.

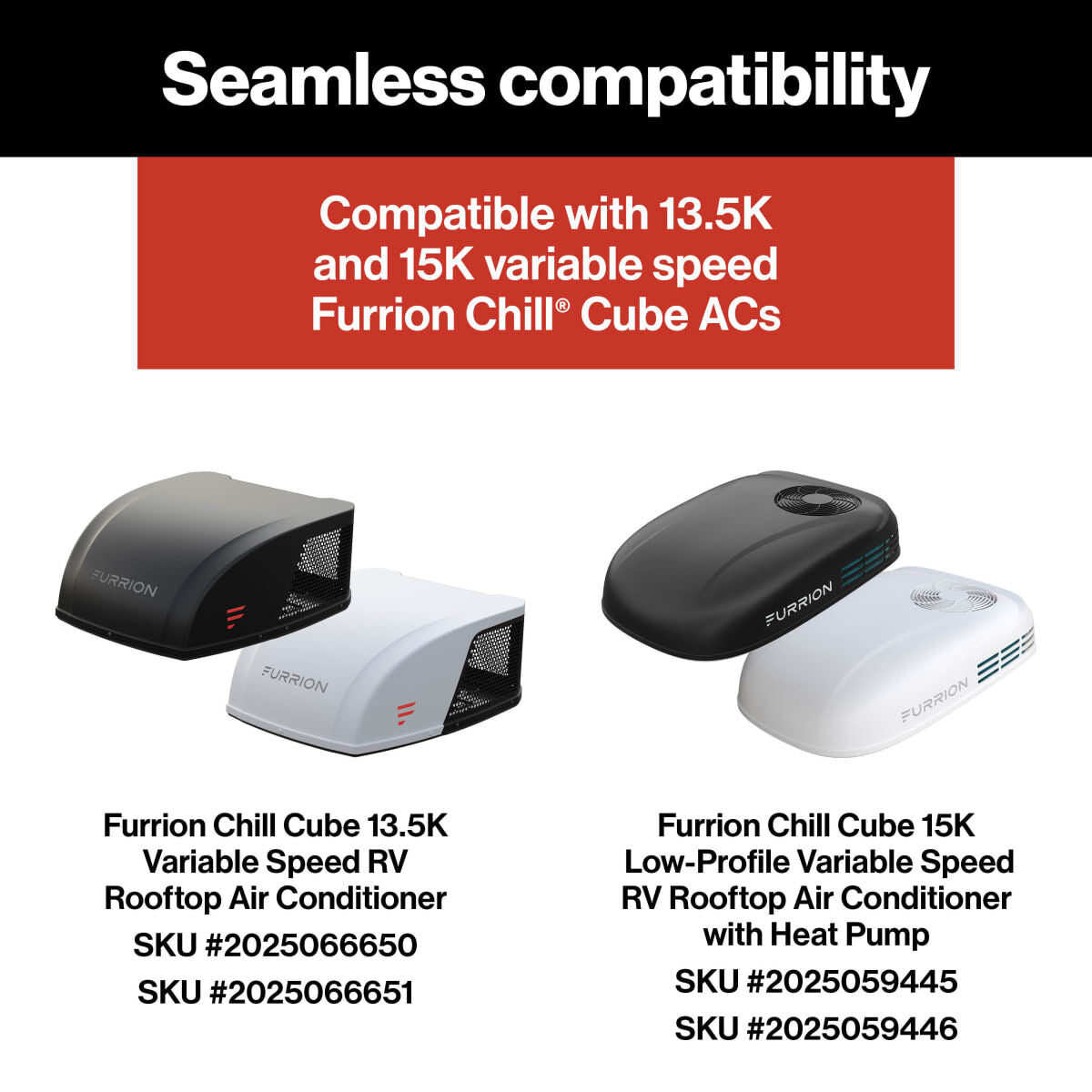

⚠️ CRITICAL — Compatibility

This air distribution box is for Furrion Chill Cube variable-speed systems ONLY:

• ✅ Compatible with 13.5K Chill Cube variable-speed systems
• ✅ Compatible with 15K Chill Cube variable-speed R32 systems (like the 15K Low-Profile Ducted Heat Pump)
• ❌ NOT compatible with the 15K Power Saver unit

Confirm your rooftop A/C model BEFORE ordering. A mismatched ceiling assembly won't communicate properly with the A/C and won't deliver the airflow or control the system was designed around.

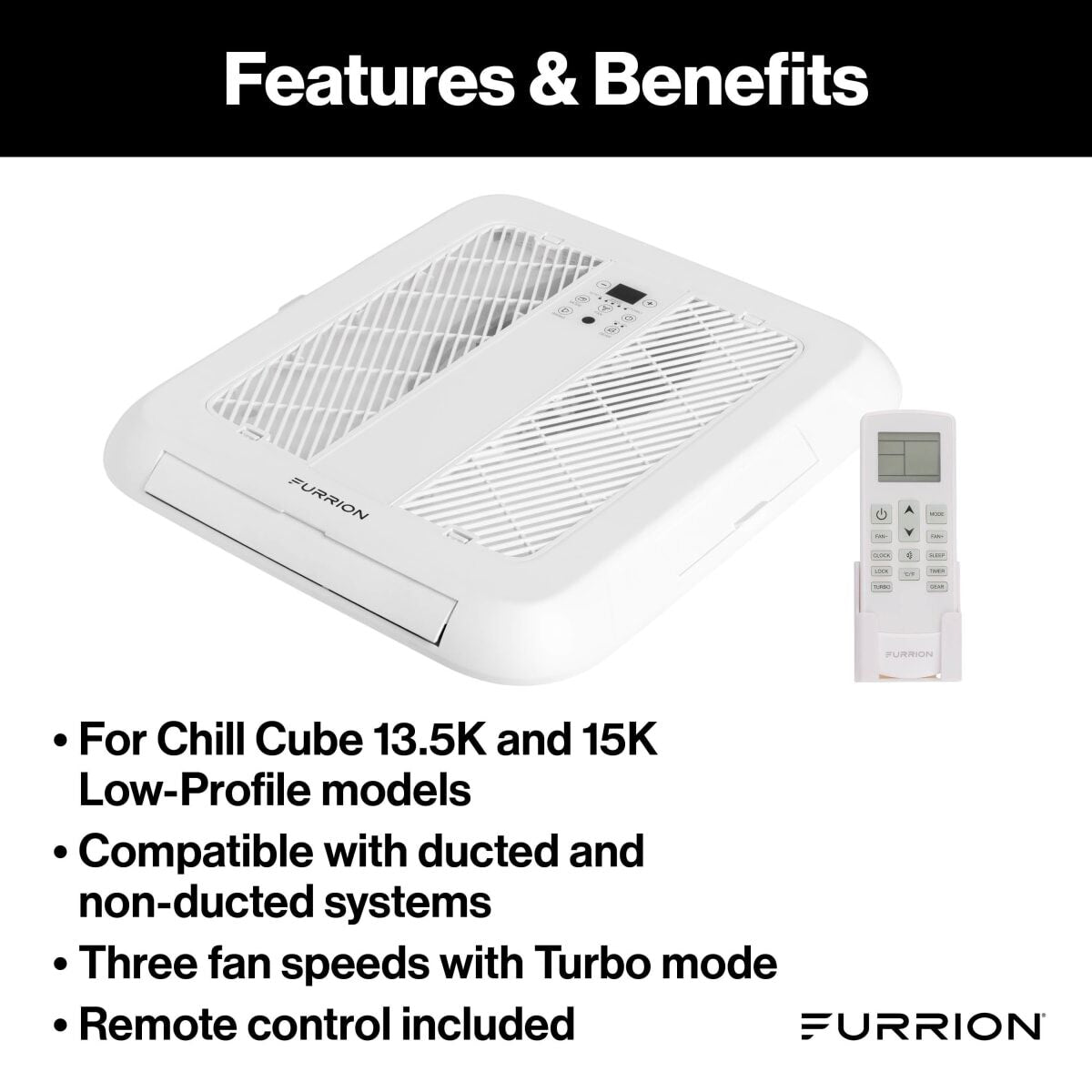

⭐ Works for Ducted AND Non-Ducted Setups

One ADB covers both configurations:

• Ducted — air routes through your coach's existing duct system to multiple registers
• Non-ducted — air blows directly through the ADB's own grilles into the main living area

Simplifies parts selection whether your coach is ducted or not.

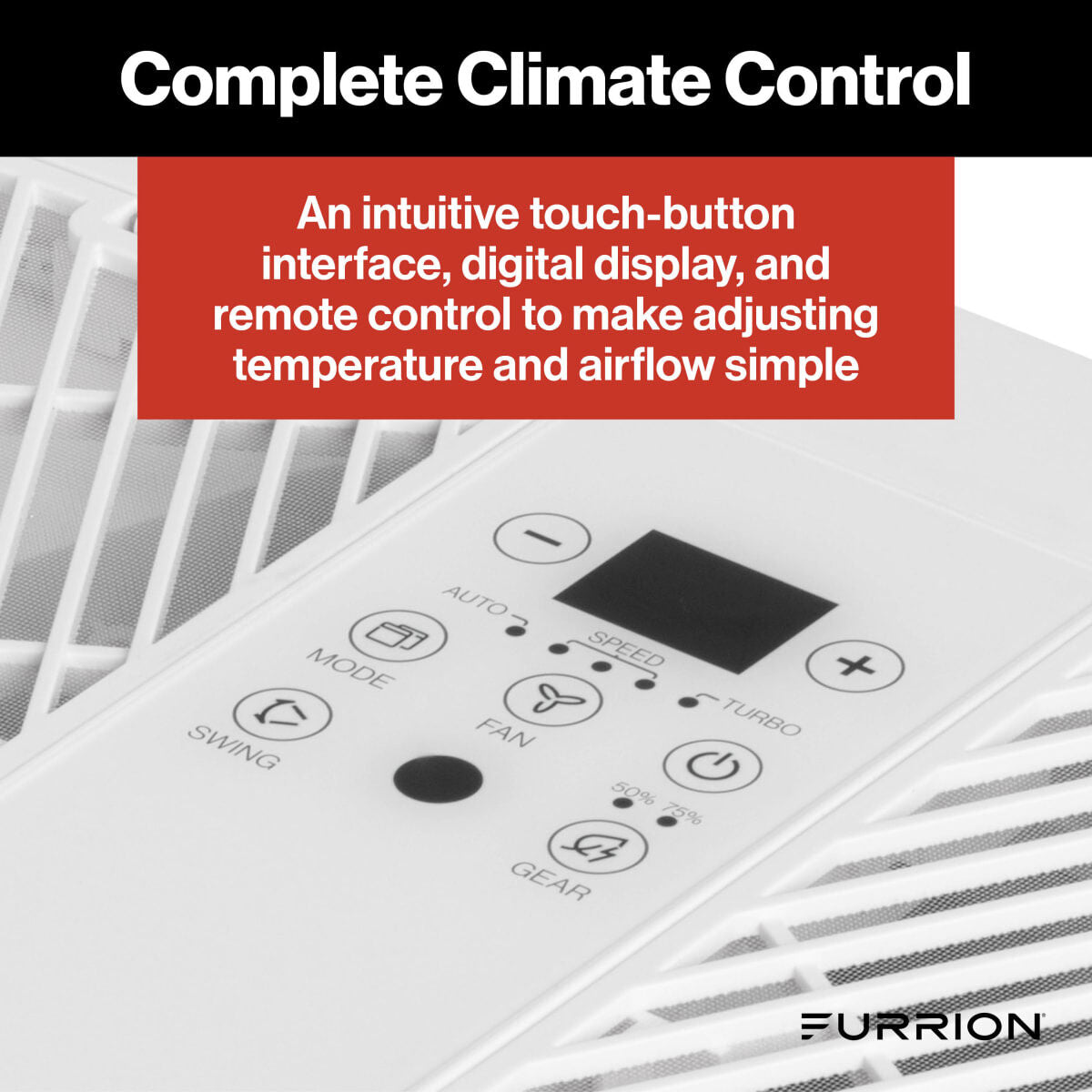

⭐ Dual Control — Keypad + Remote

• Built-in keypad on the ADB — direct control at the ceiling
• Included wireless remote — adjust from your seat or bed
• Full fan speed control — leverages the Chill Cube's variable-speed compressor for quieter, more consistent operation
• Operating mode selection — cooling, heat pump (on compatible units), fan-only

⭐ "Follow Me" Function — Localized Temperature Control

Traditional RV A/C thermostats sense temperature at the ceiling, where the ADB sits — which is often significantly hotter or cooler than where you're actually sitting.

The Follow Me function uses the temperature sensor in the remote to measure the air where you actually are:

• Set the remote on the dinette, nightstand, or recliner armrest
• System reads temperature at the remote's location
• Adjusts cooling or heating output to hold THAT spot at your target temperature
• Much better comfort than ceiling-only sensing

⭐ Clean, Low-Profile Appearance

• White housing matches typical RV ceilings
• Sits close to the ceiling for a finished look — just 1/2" deep
• No bulky thermostat on the wall — all controls at the ceiling or on the remote

⭐ Specifications at a Glance

⚠️ Installation

• Shut off 120V AC power at the breaker before touching the ADB wiring
• Install into the standard rooftop A/C ceiling opening with the matching A/C above
• Follow Furrion's installation guide for communication wiring between the ADB and rooftop unit
• Install the remote's batteries (not included in all cases — verify kit contents)

If you're not experienced with rooftop A/C electrical work, have a qualified RV technician handle the install.

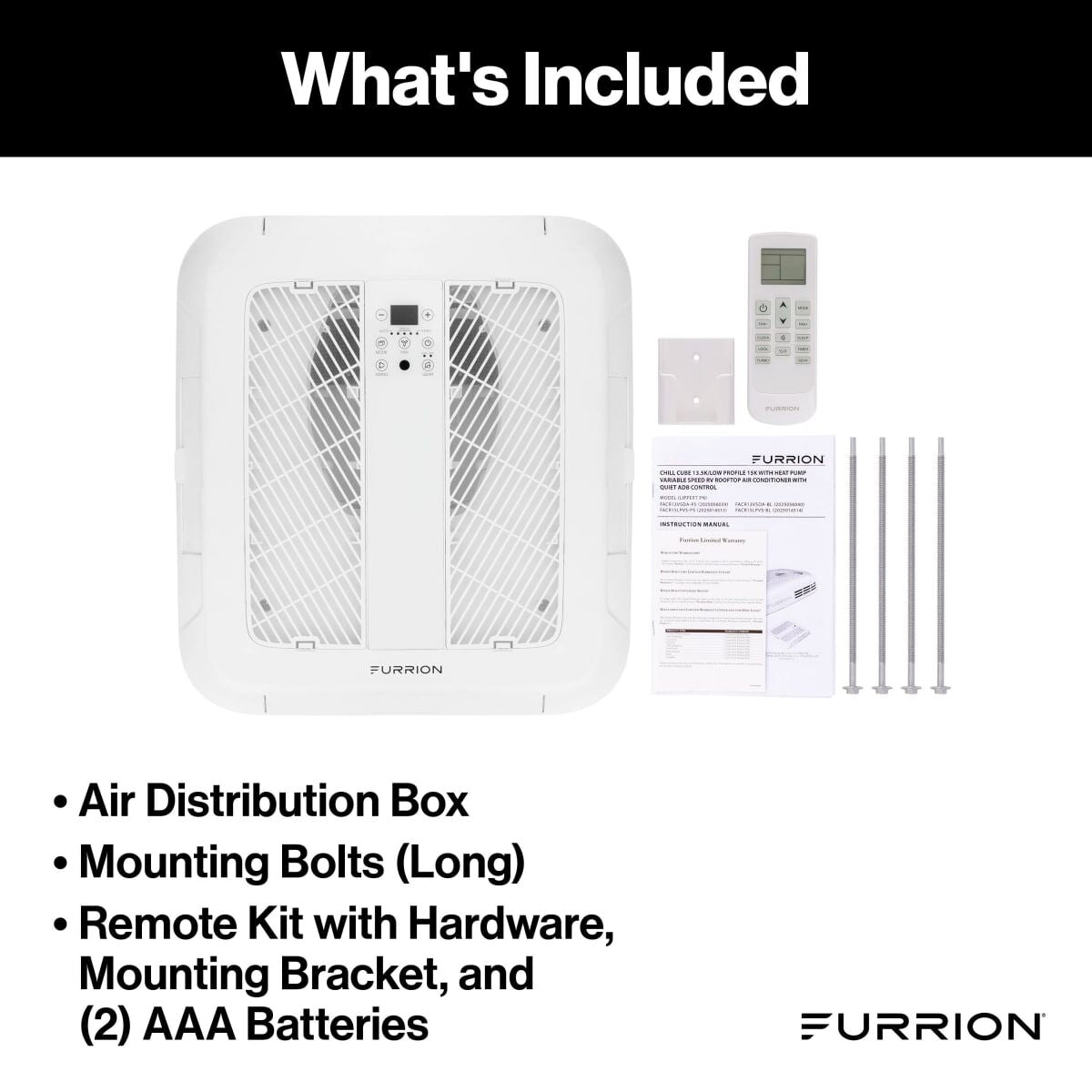

What's Included

• (1) Furrion Chill Cube variable-speed air distribution box, white
• (1) Wireless remote with Follow Me function

Specifications

• Brand: Furrion (a Lippert brand)
• Part Number: FACT11QV3-PS-AM, 2025066668
• Series: Chill Cube
• Type: Variable-speed air distribution box with remote
• Color: White
• Dimensions: 18-1/4" W × 18-1/4" L × 1/2" D
• Electrical Rating: 115V, 60Hz
• Control: Built-in keypad + wireless remote
• Special Features: Follow Me localized temperature sensing
• Compatible A/C Systems: Chill Cube 13.5K and 15K variable-speed (ducted and non-ducted)
• NOT Compatible With: 15K Chill Cube Power Saver unit
