Furrion 30K BTU RV LP Furnace | FFG30RA | Horizontal/Vertical

Heat your RV efficiently with the Furrion FFG30RA 30,000 BTU RV LP Furnace (Part #2022121949). Made by Suburban for Lippert under the Furrion name — identical to the retail Suburban SF-30VHQ / SF-30Q, but built with higher-quality metal construction. Ducted design with horizontal OR vertical installation flexibility for mid-size and large RVs.

Suburban-Built for Furrion — Higher-Quality Metal

These Furrion furnaces are made by Suburban for Lippert to be sold under the Furrion name. They are identical to their Suburban counterparts (SF-30VHQ / SF-30Q), but constructed with higher-quality metal. Never sold at retail, so information is limited beyond what we provide here and in the linked documentation.

⚠️ Condition Disclosure — New But No Retail Box

These units are new but do NOT come in manufacturer boxes — Furrion never produced these for retail sale, so no retail packaging exists. Units are:

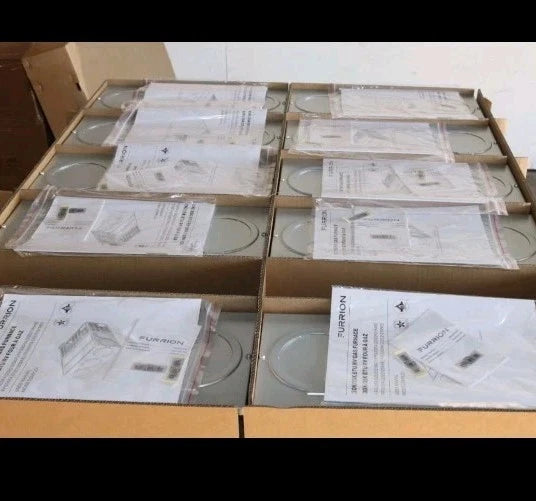

• Double-boxed for shipping to prevent damage

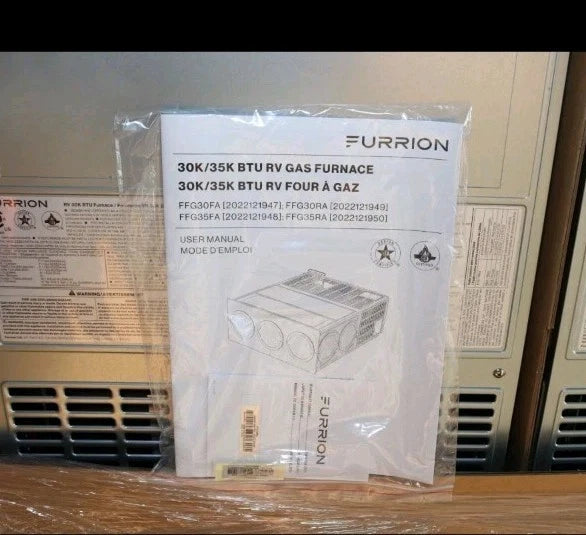

• Include vents, screws, and manual

Direct Replaces These Suburban Models

• SF-25FQ, SF25, SF25Q, SF25VHFQ, SF25QHT
• SF-30FQ, SF30, SF-30Q, SF30VHFQ, SF30QHT

Also Replaces Dometic and Atwood 30K BTU Furnaces

• Dometic DFMD furnaces (30K BTU)
• Atwood AFMD furnaces (30K BTU)
• Atwood/Dometic HydroFlame 30K BTU furnaces

⚠️ Important Fitment Notes When Replacing Dometic/Atwood Units

When replacing Dometic or Atwood furnaces with this Furrion unit, verify the following:

• Width difference: Dometic/Atwood furnaces are 1" LESS wide than Suburban/Furrion units — the opening must accommodate the wider Furrion body
• Gas line side: Dometic/Atwood have the gas line on the RIGHT; Suburban/Furrion gas line is on the LEFT (near the outer wall when viewed from the exterior)
• You must be able to accommodate BOTH of these differences during installation

Horizontal OR Vertical Installation

Standout feature: the SF-Q series can be installed horizontally OR vertically, giving flexibility to fit spaces that might otherwise be unused. Meaningful for mid-size and large RV floor plans where installation location is constrained.

Maximum Heating Performance

• 30,000 BTU/hr input — high-tier output for large coach heating
• Ducted design — even heat distribution throughout the RV
• 3 duct connections required, 4" diameter
• Required Return Air: 55 in²

Thermostat Compatibility

Compatible with any brand's 12V thermostat — no proprietary thermostat requirement.

Access Door Compatibility

Uses standard Suburban access doors:

• #6258APW (polar white)
• #6258AEB (black)

Fuel

Uses LP (propane).

Physical Specifications

• Dimensions: 7-5/8" × 17-5/8" × 20-3/16"
• Weight: 29 lbs

Electrical Specifications

• Voltage: 12V
• Amp Draw: 8A

Reference Documents

• Furrion Spec Sheet (PDF)
• Furrion Troubleshooting Guide / Service Manual (PDF)

Cross-Reference Part Numbers

• Furrion Part: FFG30RA
• SKU: 2022121949
• Suburban Equivalent: SF-30VHQ / SF-30Q

⚠️ Professional Installation Required

Installation involves LP gas connections, 12V DC electrical wiring, ductwork integration, and precise cutout dimensions (with special attention to fitment when replacing Dometic/Atwood units). Installation should be performed by a qualified RV service technician.

1-Year RV Surplus Parts Warranty

What's Included

• Furnace unit
• Vents
• Screws
• Manual

Key Features

• Genuine Furrion (Suburban-manufactured) RV LP furnace
• Part number: FFG30RA (SKU 2022121949)
• 30,000 BTU LP propane heating input
• Ducted design — 3 required 4" duct connections
• Horizontal OR vertical installation — flexibility for tight spaces
• Higher-quality metal than the retail Suburban equivalent
• Compatible with any 12V thermostat
• Uses Suburban access doors: #6258APW (white) or #6258AEB (black)
• Replaces: Suburban SF-25/SF-30 series, Dometic DFMD, Atwood AFMD, HydroFlame 30K BTU (verify Dometic/Atwood width + gas line differences)
• Never produced for retail — new but no manufacturer box (double-boxed for shipping)
• Includes vents, screws, manual
• Dimensions: 7-5/8" × 17-5/8" × 20-3/16" | Weight: 29 lbs
• 12V, 8A
• Backed by 1-year RV Surplus parts warranty

Specifications

• Brand: Furrion (Suburban-manufactured for Lippert)
• Model: FFG30RA
• SKU: 2022121949
• Suburban Equivalent: SF-30VHQ / SF-30Q
• Type: RV LP Furnace (Ducted)
• BTU Input: 30,000 BTU/hr
• Fuel: LP (Propane)
• Installation Orientation: Horizontal OR Vertical
• Ducts Required: 3 (4" diameter)
• Required Return Air: 55 in²
• Voltage: 12V DC
• Amp Draw: 8A
• Thermostat: Any brand 12V thermostat
• Compatible Access Doors: Suburban #6258APW (white), #6258AEB (black)
• Replaces: Suburban SF-25FQ/SF25/SF25Q/SF25VHFQ/SF25QHT, SF-30FQ/SF30/SF-30Q/SF30VHFQ/SF30QHT; Dometic DFMD; Atwood AFMD; Atwood/Dometic HydroFlame 30K BTU
• Fitment Notes (Dometic/Atwood Replacement): 1" wider than Dometic/Atwood; gas line on LEFT (Dometic/Atwood gas line on RIGHT)
• Dimensions: 7-5/8" × 17-5/8" × 20-3/16"
• Weight: 29 lbs
• Condition: New (no manufacturer box — double-boxed for shipping)
• Included: Furnace, vents, screws, manual
• Warranty: 1-year RV Surplus parts warranty
