Husky Towing A-Frame Manual Trailer Tongue Jack | 1K, 2K or 5K lb

Husky's A-frame tongue jacks bolt or weld through the jack hole of any A-frame coupler and come in top-wind and side-wind styles across 1,000, 2,000 and 5,000 lb ratings. Powder coat and zinc plating stand up to road salt, and the top-wind models accept a footpad for soft ground. Choose the capacity that covers your loaded tongue weight with margin.

Options

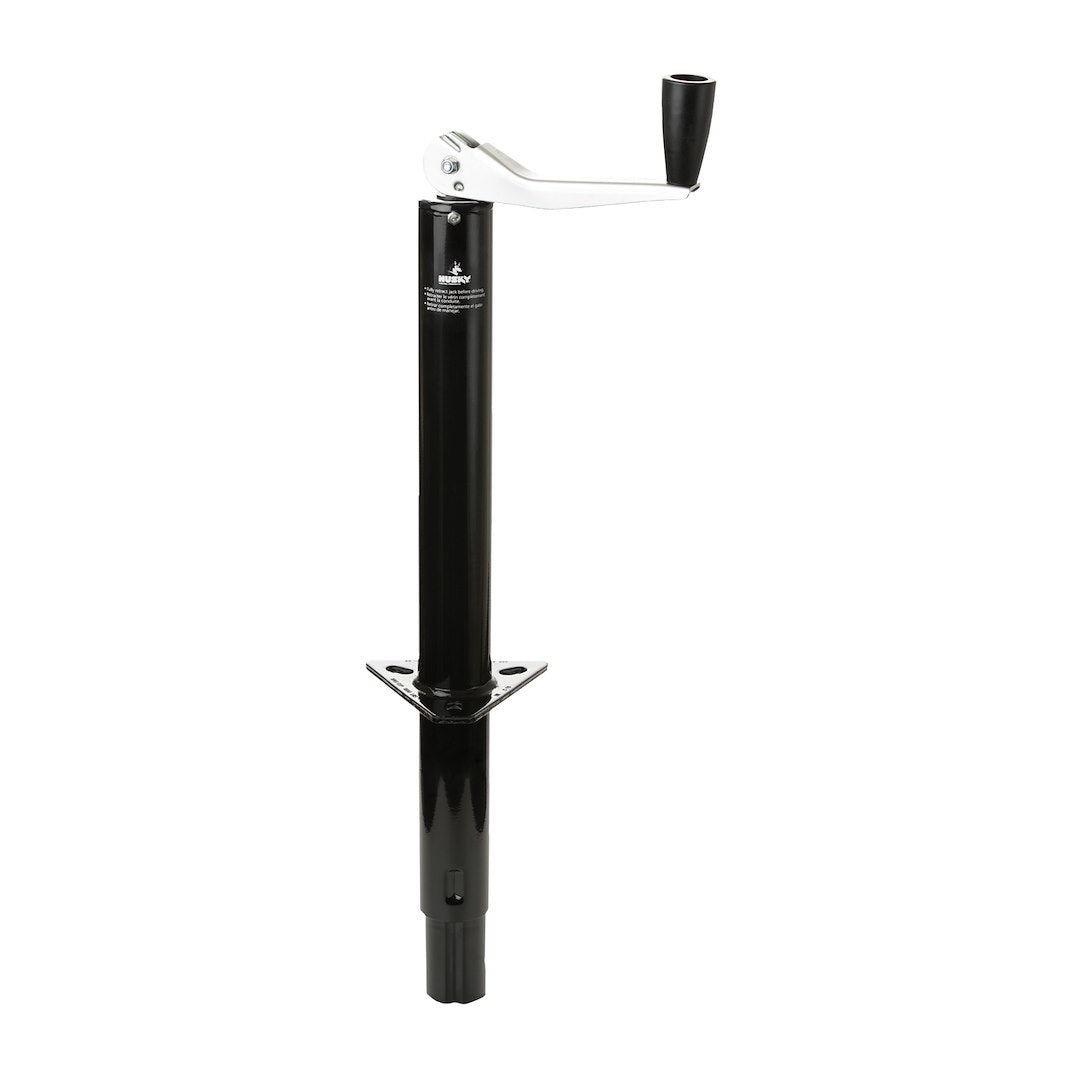

• 30774 — 1,000 lb | 14-7/8" Lift | Top-Wind

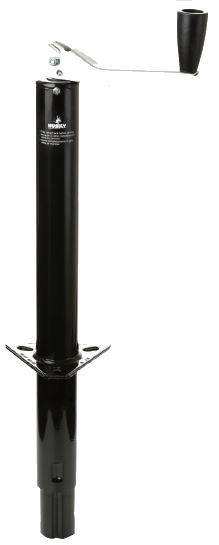

• 88126 — 1,000 lb | 14-7/8" Lift | w/ Footpad Mount

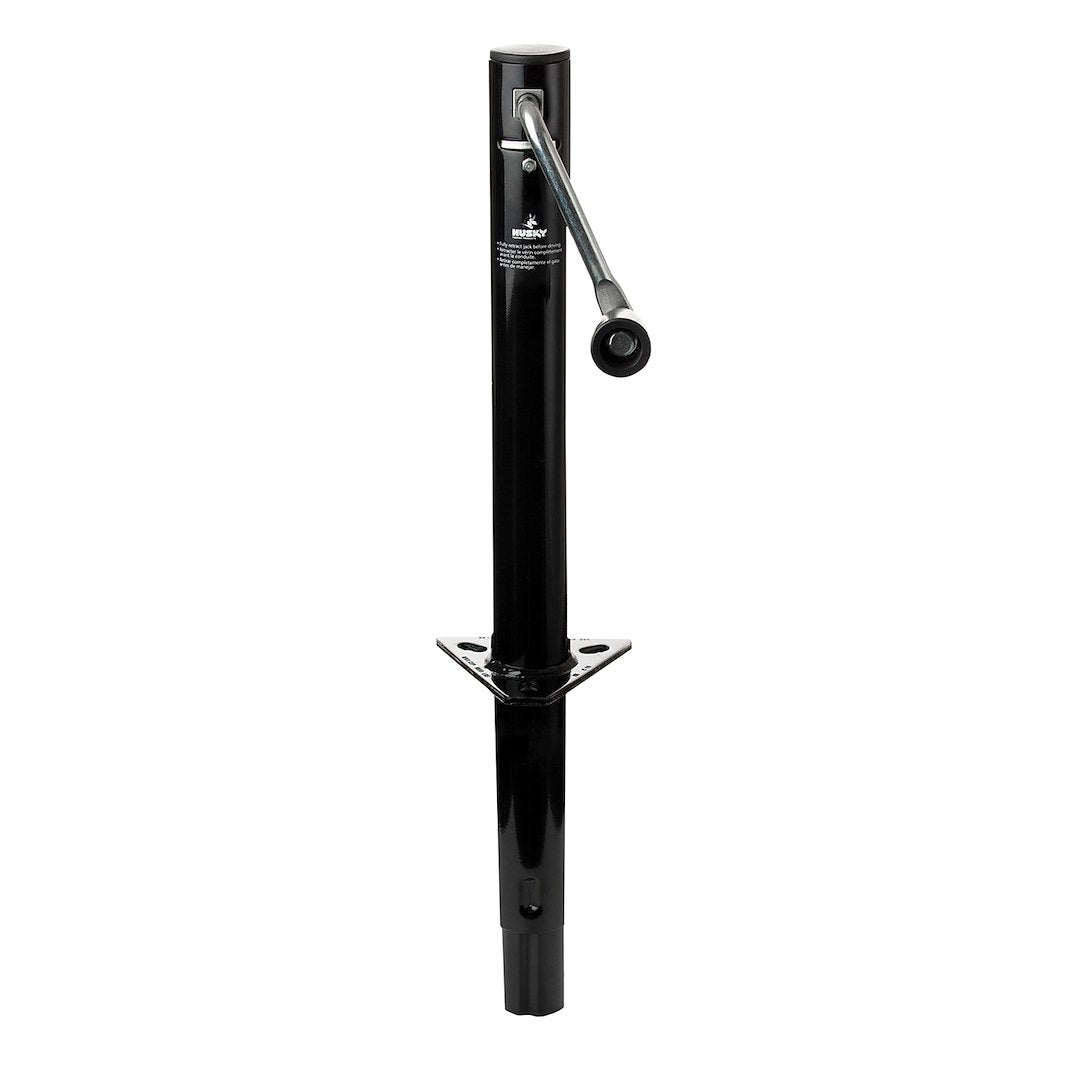

• 30781 — 1,000 lb | 14-13/16" Lift

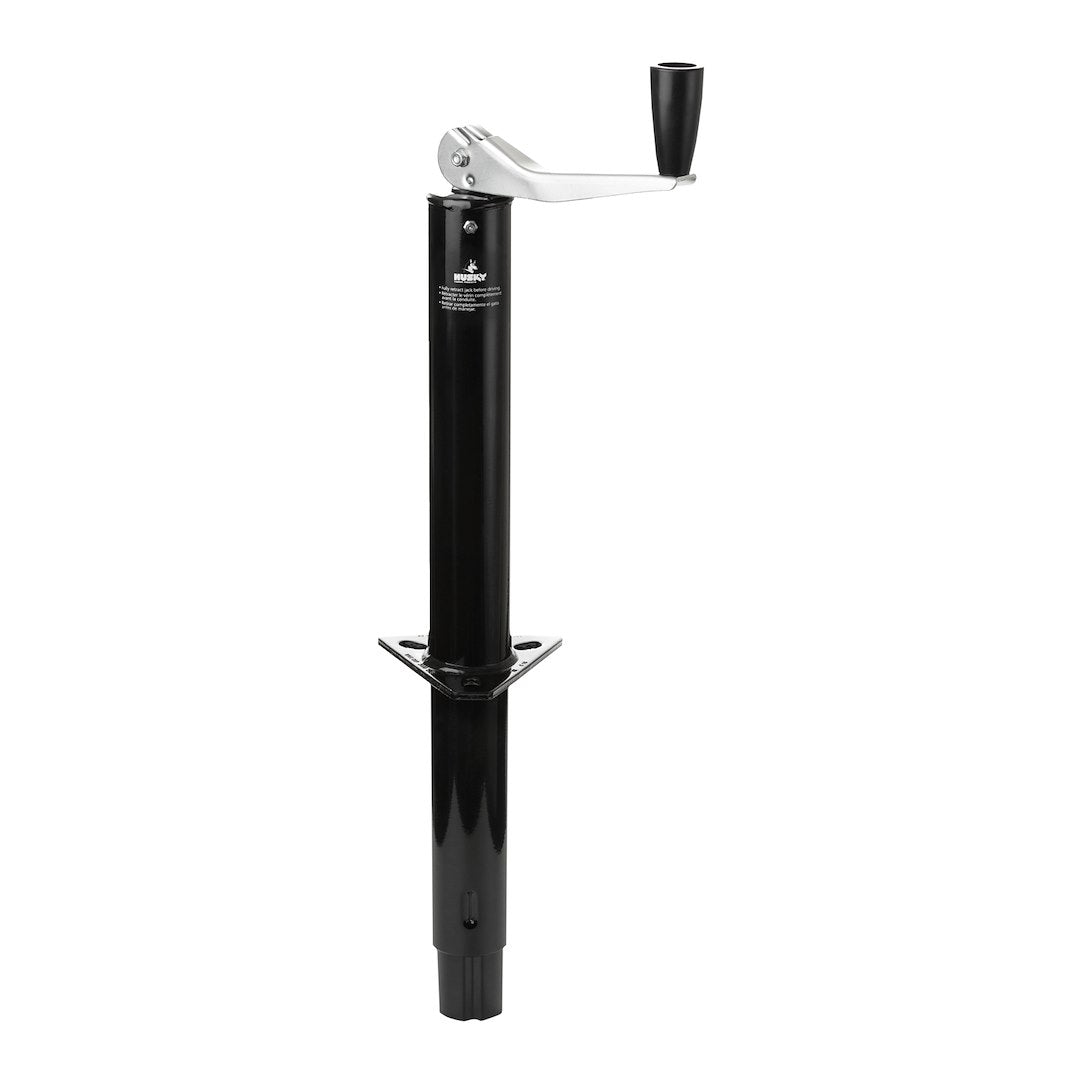

• 30775 — 2,000 lb | 14-1/4" Lift

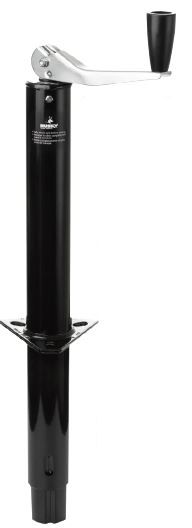

• 88127 — 2,000 lb | 14" Lift | Top-Wind

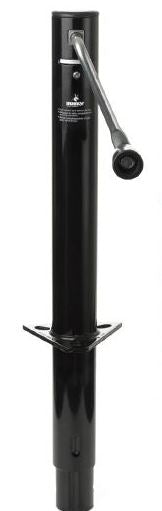

• 88130 — 2,000 lb | 14-3/8" Lift | Top-Wind

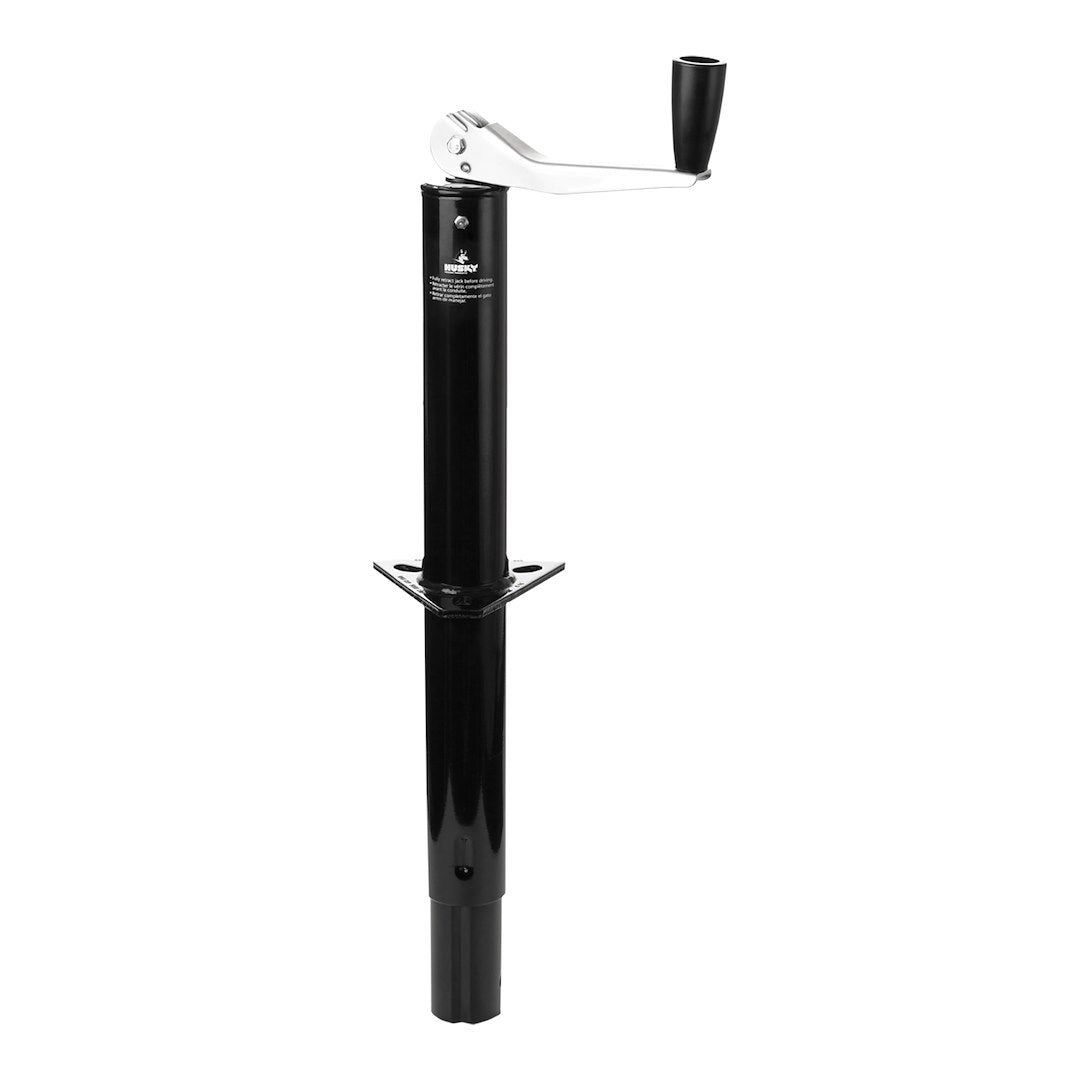

• 30780 — 5,000 lb | 14-13/16" Lift

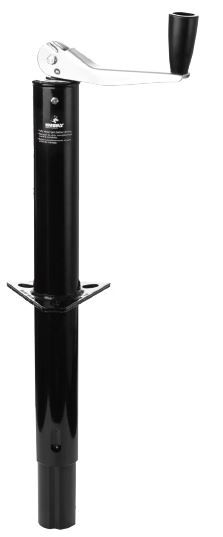

• 88128 — 5,000 lb | 14-1/2" Lift | Top-Wind

Extension Details (where published)

• 88126 — extends 23-3/8" below mount, 14-7/8" lift, retracts to 8-1/2"
• 88127 — extends 23-1/4" below mount, 14" lift, retracts to 9-1/4"
• 88130 — extends 23-1/2" below mount, 14-3/8" lift, retracts to 9-1/8"
• 88128 — extends 25-1/2" below mount, 14-1/2" lift, retracts to 11"

⚠️ Check your tongue weight: the jack rating must exceed your loaded tongue weight. Lift figures come from the manufacturer's listed titles; where Husky does not publish full extension specs we have not guessed. Add a Husky jack footpad or drop leg for soft ground.

Key Features

• Available in 1,000, 2,000 and 5,000 lb ratings
• Easy bolt-on or weld-on mounting through A-frame couplers
• Durable powder coat finish with zinc plating
• Top-wind models accept a footpad
• Limited 1-year warranty (88127 and 88128: limited lifetime)

Specifications

• Brand: Husky Towing
• Mount: A-frame coupler, bolt-on or weld-on
• Capacities: 1,000 / 2,000 / 5,000 lb
• Finish: Powder coat + zinc
• Warranty: Limited 1 year; lifetime on 88127/88128
