Lippert Trailer Axle Hub Grease Seal | Double Lip | 10 Options

The seal is the cheapest part in the hub and the one that lets water in when it's tired — Lippert says replace it every time you service the bearings. Double-lip design forms a barrier between the grease and the road. Three sizes are fully specified by bore and spindle diameter; the other three are sold by part number.

Options

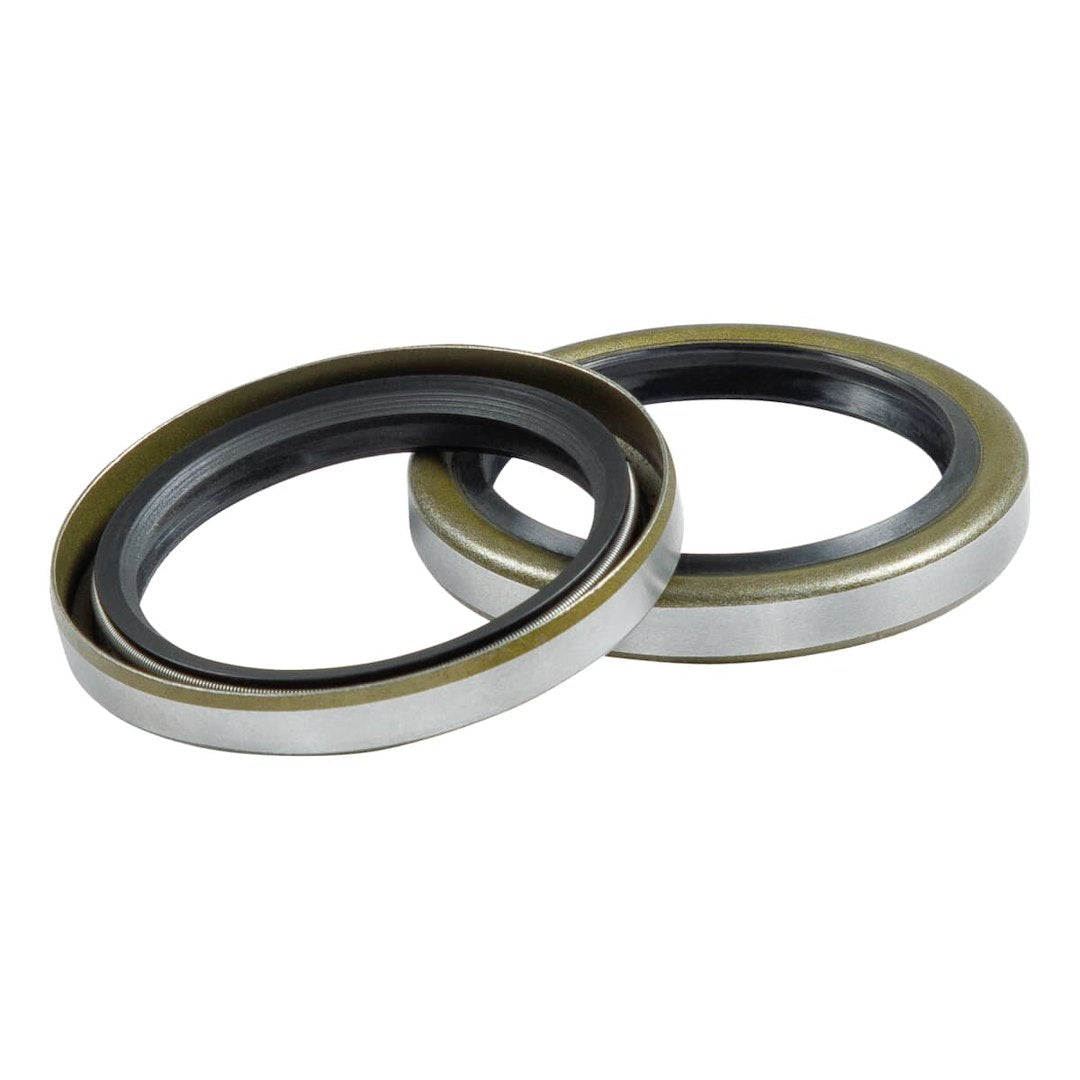

• 2023134653 — double-lip grease seal, 2,200 lb brake/idler hubs — 1.983" bore, 1-1/2" spindle, 1/4" wide

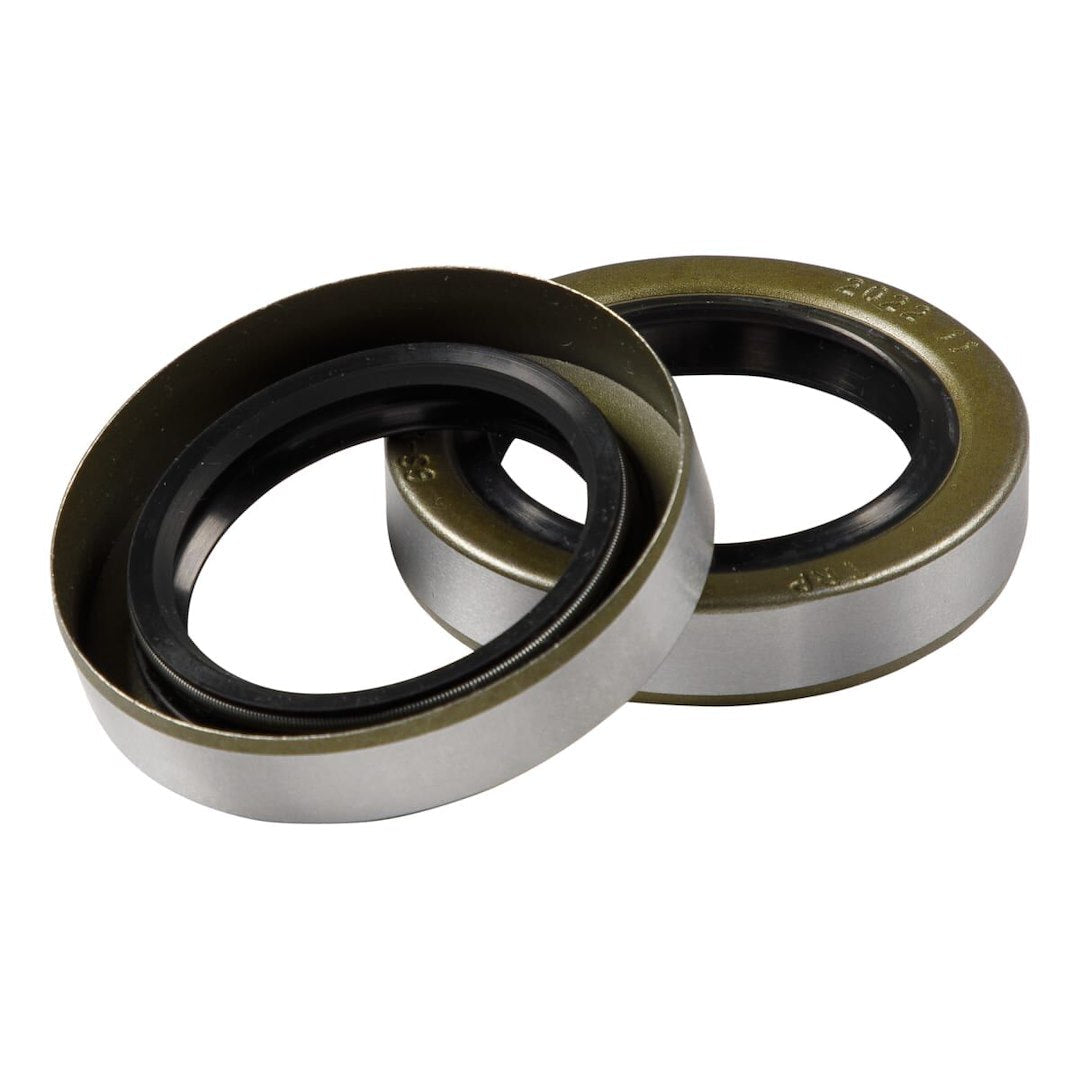

• 2023134654 — double-lip grease seal — 2.561" bore, 1.719" spindle, 1/2" wide (3,500 lb class)

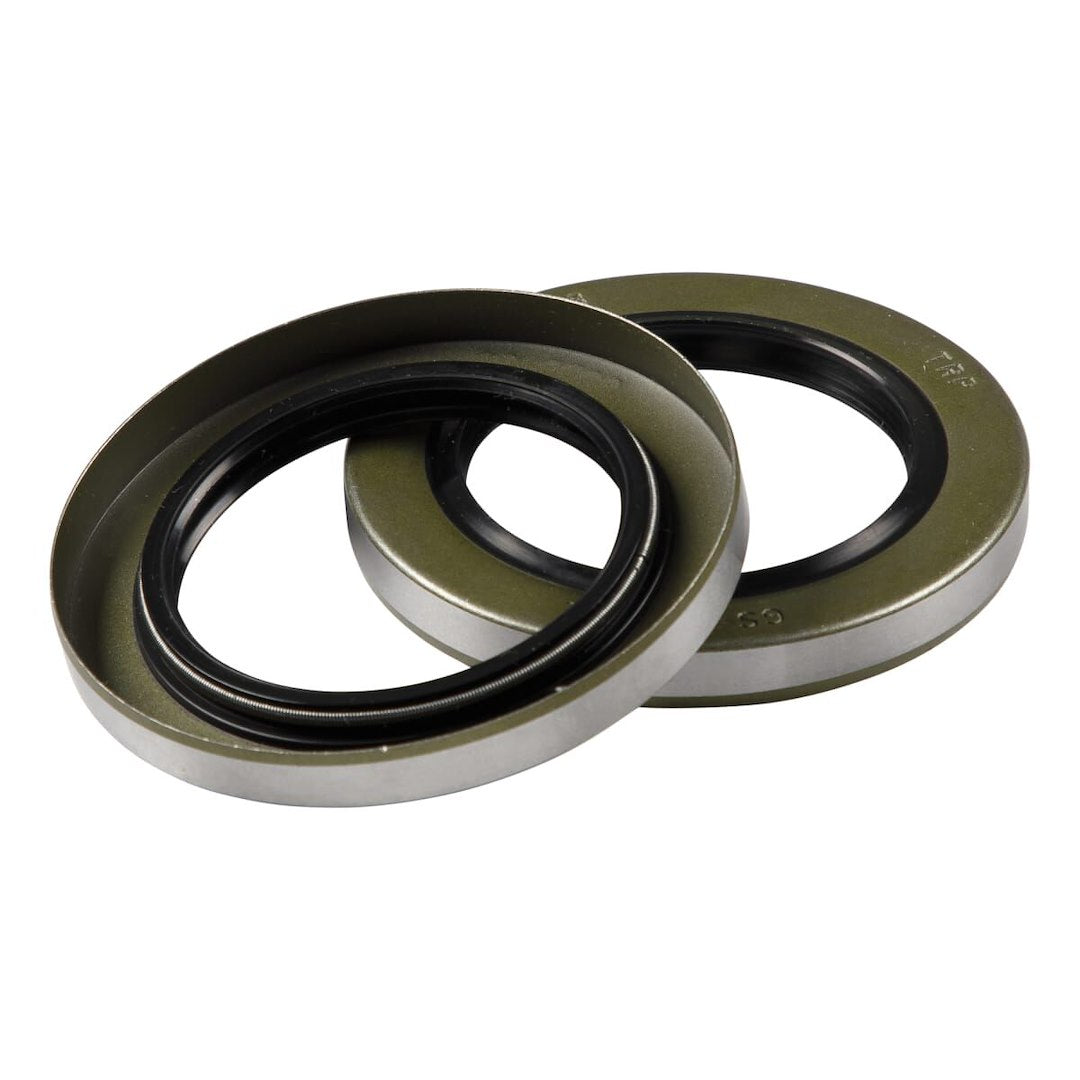

• 2023134655 — double-lip grease seal — 3.371" bore, 2-1/4" spindle, 3/8" wide (5,200–7,000 lb class)

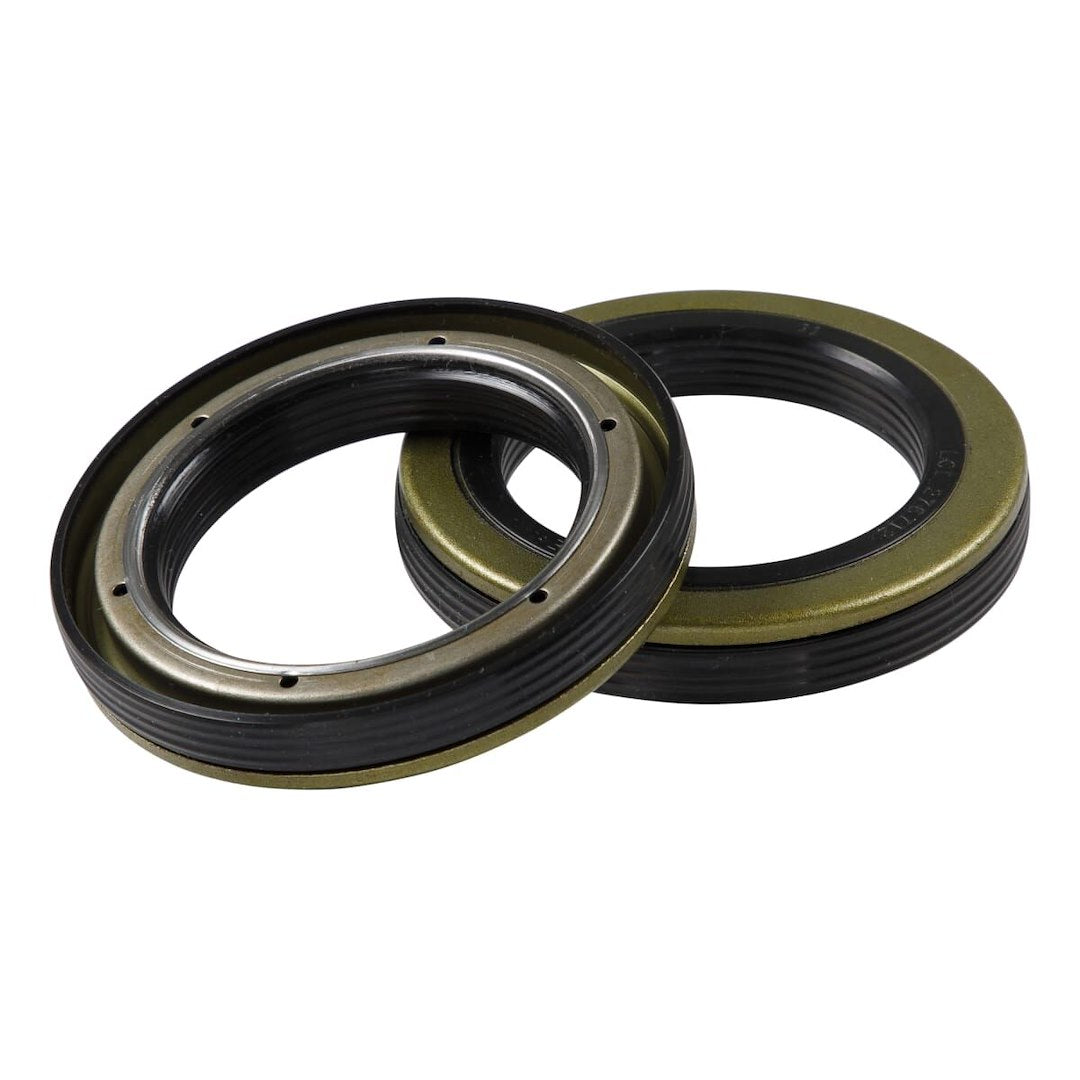

• 2023134018 — grease seal, size per part number

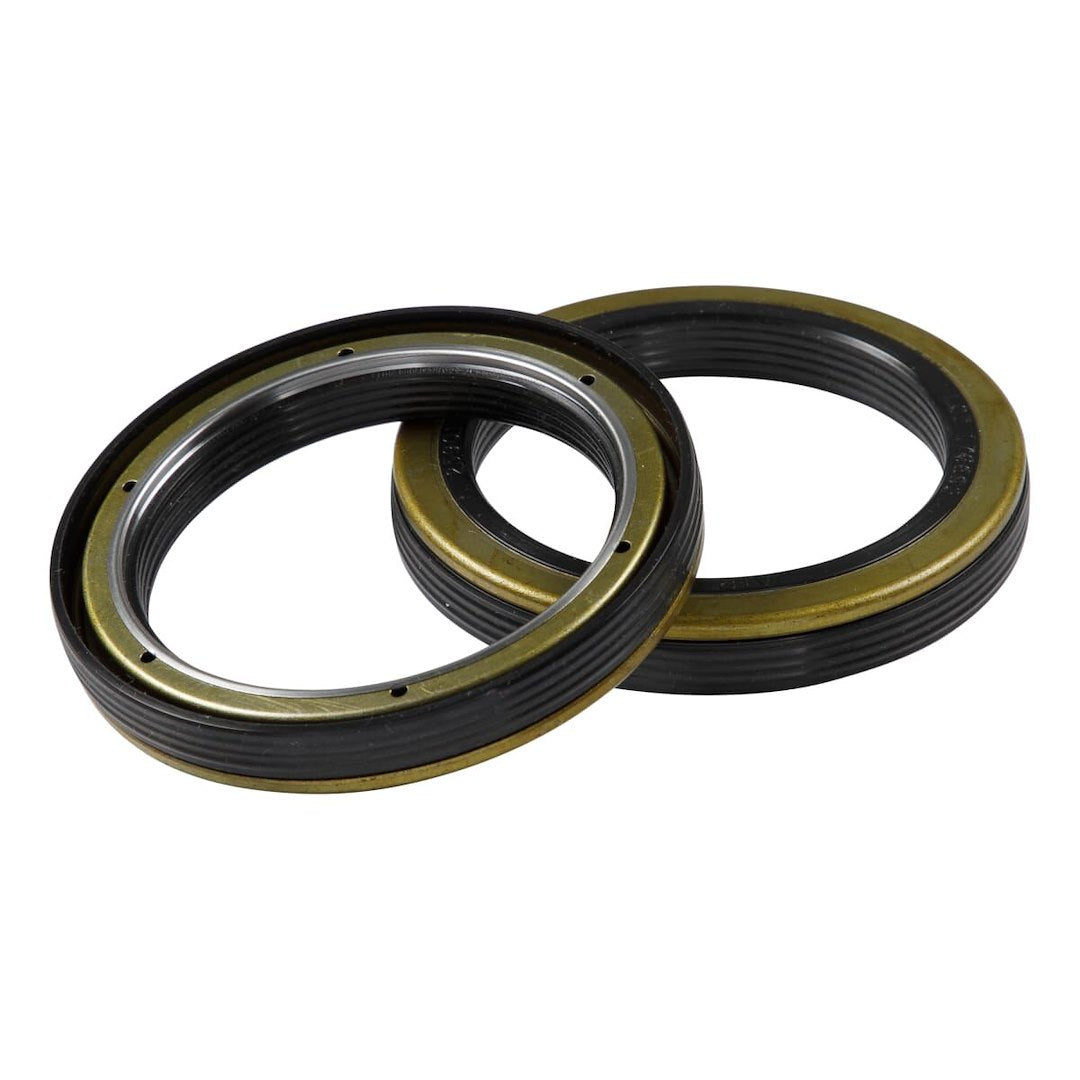

• 2023134019 — grease seal, size per part number

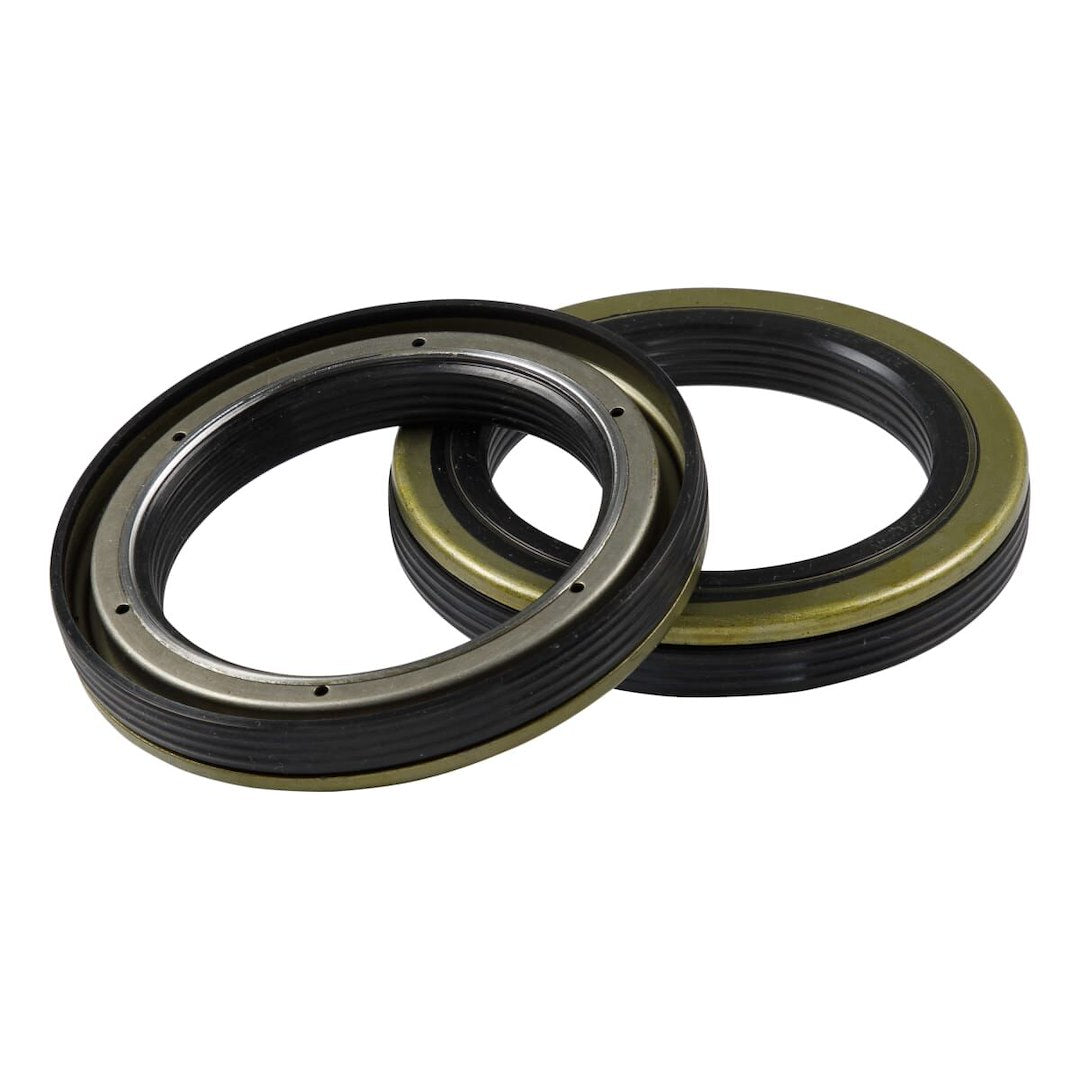

• 2023134020 — grease seal, size per part number
• 333954 — universal double-lip grease seal — fits Lippert, Dexter and Al-Ko hubs
• 333960 — universal double-lip grease seal — fits Lippert, Dexter and Al-Ko hubs
• 333961 — universal double-lip grease seal — fits Lippert, Dexter and Al-Ko hubs
• 333962 — universal double-lip grease seal — fits Lippert, Dexter and Al-Ko hubs

⚠️ Match the Part Number. Select the exact part number for your unit — these are sold by part number and are not interchangeable.

⚠️ Dimensions for 2023134018, 2023134019 and 2023134020 are not stated at the source — order by the number on your existing seal. Bearing kits: Lippert bearing kits.

Key Features

• Double-lip design seals out dirt, grime and water
• High-grade construction for extended life
• Universal — fits Lippert and competitor axles
• Replace whenever bearings are serviced
• Limited 1-year warranty

Specifications

• Brand: Lippert
• Sizes: 1.983 / 2.561 / 3.371" bore (see options)
