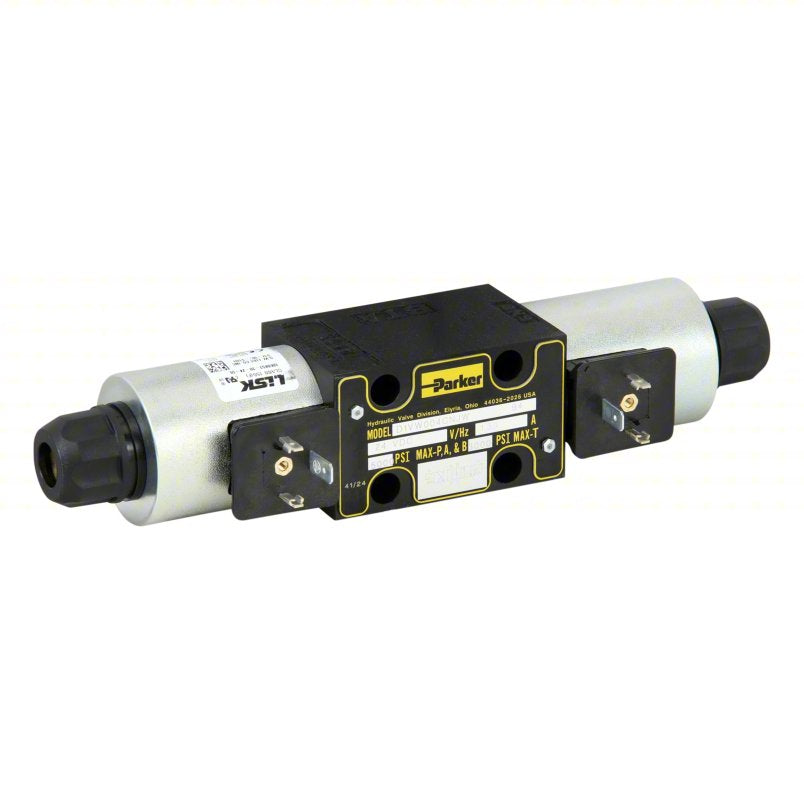

Parker D1VW004CNJW Hydraulic Directional Valve: 18.5 gpm Max Flow Rate, D03 NFPA Size, Three Positions, 24V DC
Parker D1VW004CNJW Hydraulic Directional Valve: 18.5 gpm Max Flow Rate, D03 NFPA Size, Three Positions, 24V DC
Regular price
$229.99 USD
Regular price
$249.99 USD
Sale price
$229.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
New unit in original box
Brand: PARKER
Manufacturer Part Number: D1VW004CNJW
Series: D1VW
Number of Ways: Four-Way
Number of Positions: Three Positions
Maximum Flow Rate: 318.5 gpm
Center Position: Float Center
NFPA Size: D03
Voltage: 24V DC
Maximum Pressure: 5,000 psi
Return Mechanism: Solenoid
Overall Height: 1.97 in
Overall Length: 9.2 in
Overall Width: 1.81 in
Maximum Tank Pressure: 3,000 psi
Includes Seals: Seals Included
Seal Material: NBR
Valve Type: Ball
Operating Temperature - Maximum: 140 °F
Operating Temperature - Minimum: -4 °F
Electrical Connection Type: DIN without Plug
Standards: ISO-4401; NFPA D03, UNSPSC40141608
Country of Origin: USA
- Product Description:
-
Solenoid-operated directional control valves operate hydraulic components remotely by electrically diverting fluid flow to the desired circuit.
