Progressive Industries 50 Amp Permanent Electrical Management System EMS-LCHW50

Get the most complete electrical protection available for your RV with the Progressive Industries EMS-LCHW50 50 Amp Hardwired Electrical Management System. This permanently installed EMS is far more than a surge protector — it's a microprocessor-controlled guardian that continuously monitors your shore power and automatically shuts off power the instant it detects any dangerous condition, protecting the expensive electronics, appliances, and systems throughout your coach.

High/Low Voltage Protection

Whenever AC power drops below 104 volts or rises above 132 volts, the EMS automatically shuts down power to the RV. It keeps monitoring, and once voltage returns to a safe range, the time delay counts down and power is automatically restored — protecting your gear from the brownouts and overvoltage conditions common at busy campgrounds.

Adjustable Time Delay for Your A/C Compressor

After a power interruption or detected fault, a built-in time delay protects your A/C compressor from damaging rapid cycling. The EMS offers two settings: 136 seconds (2:16) and 15 seconds. Check your air conditioner manual — if it has its own built-in delay, use the 15-second setting; if not, use the 136-second delay. (Factory setting is 15 seconds.)

5-Mode Surge Protection

The EMS-LCHW50 provides full 5-mode surge protection (L-N, L-N, L-G, L-L, and N-G) with a 3,580-joule rating, an 88,000A surge current rating, and a response time under 1 nanosecond. If the surge circuit is ever damaged protecting your rig, the display shows error code E-10 to let you know the unit needs service.

Comprehensive Fault Protection

The EMS guards against the full spectrum of electrical faults, each with its own clear error code:

• Reverse polarity — blocks power, displays E-1
• Open neutral — display stays dark, power blocked
• Open ground — blocks power, displays E-2
• AC frequency deviation (±9 Hz from 60 Hz) — shuts down power, displays E-7 (high) or low-frequency code
• Accidental 240V — instantly blocks/cuts power, displays voltage and E-3 (never bypass the EMS when this occurs)

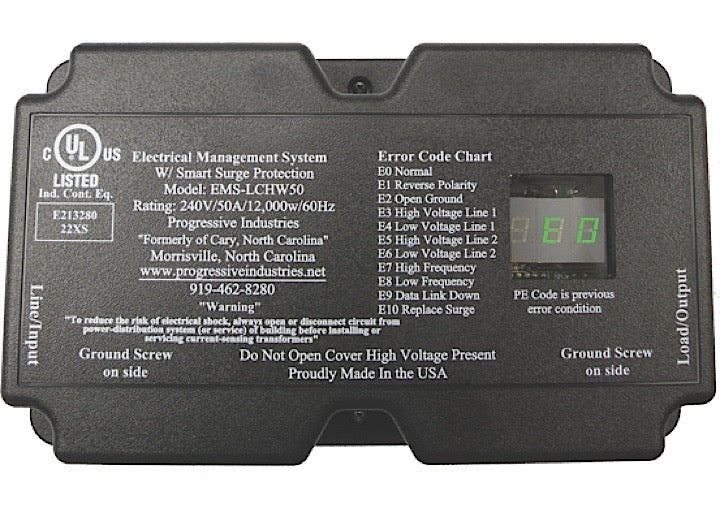

Informative Scrolling Display

The digital display continuously scrolls all your AC power information — voltage, current, frequency, error codes, and previous errors — with each reading shown for two seconds. The previous error code feature tells you exactly what caused a power interruption (read by putting a "P" in front of the "E" code), so you can diagnose recurring pedestal problems.

Built for Real-World Reliability

An enclosed blue jumper wire lets you bypass the computer circuit in the rare event of a computer failure, restoring AC power to the RV while still keeping surge protection active (other features are disabled in bypass mode). The modular design means replacement parts are simple plug-and-play, making any future repairs genuinely user-friendly. Proudly made in the USA and backed by a lifetime warranty.

Key Features

• High/low voltage protection — shuts down below 104V or above 132V
• Adjustable A/C compressor time delay — 136 or 15 seconds
• 5-mode surge protection — 3,580 joules, 88,000A, <1 ns response
• Reverse polarity, open neutral, open ground protection
• AC frequency protection (±9 Hz)
• Accidental 240V protection
• Scrolling display with voltage, current, frequency, and error codes
• Previous error code detection
• Bypass switch for computer failure (keeps surge protection active)
• Microprocessor controlled with modular, easy-replace design
• Permanent hardwired installation — theft- and weather-protected
• Made in the USA, backed by a lifetime warranty

Specifications

• Brand: Progressive Industries
• Model: EMS-LCHW50
• Type: Hardwired Electrical Management System (EMS)
• Installation: Permanent
• Amperage: 50 Amp
• Surge Protection: 3,580 joules, 5-mode, 88,000A, <1 ns response
• Voltage Cutoff: Below 104V / above 132V
• A/C Compressor Time Delay: 136 sec or 15 sec (selectable)
• Dimensions: 5" W x 9-1/2" L x 4-1/2" H
• Country of Origin: USA
• Warranty: Lifetime
