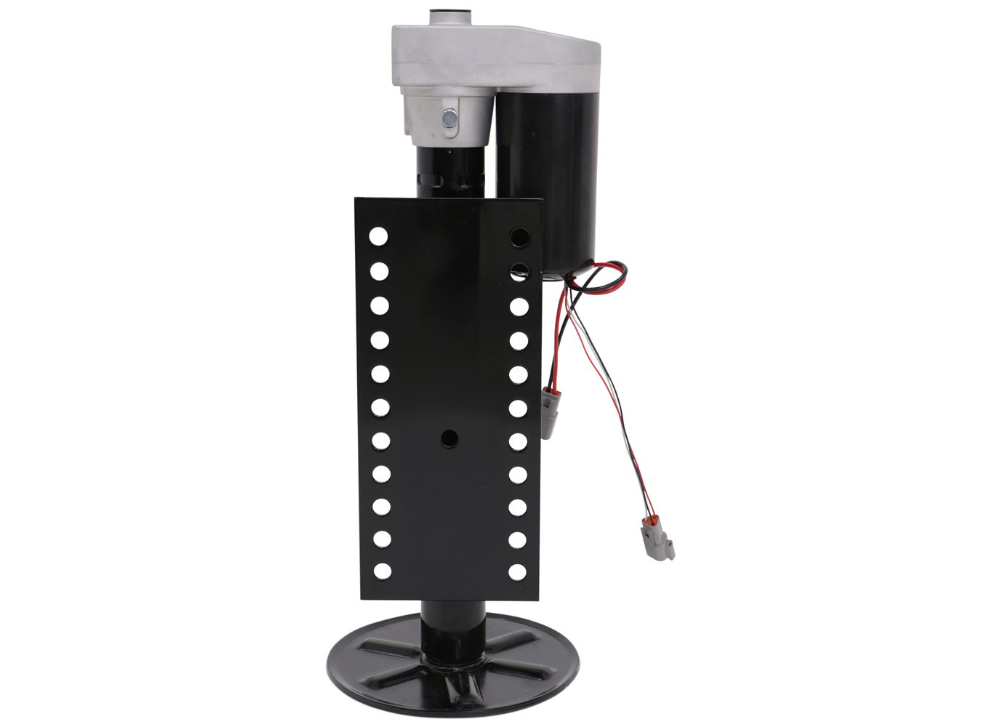

Lippert Ground Control 3.0 Right Rear Leg | 428493 | Short Stroke

Replace a failed right-side rear leg on your 6-point Lippert leveling system with the Lippert Ground Control 3.0 Replacement 22-1/2" Right Rear Leg — Short Stroke (Part #428493). Genuine Lippert OEM 5,000 lb capacity jack leg with mounting plate and attached foot plate. Direct replacement for LC675817 6-point electric leveling systems.

What This Replaces

This is a single right-side, short, REAR leg replacement for Lippert Ground Control 3.0 6-point automatic electric leveling systems (LC675817). Comes as a complete leg assembly ready for direct swap installation:

• Replaces 1 leg — order additional units if multiple legs need replacement
• Right-side rear position specific — verify your failed leg is right-side rear before ordering
• Short-stroke variant (22-1/2" retracted, 35" extended)
• Hall Effect Jack architecture

Left-Side Rear Leg Also Available

Need the left-side rear leg instead? See the Lippert Ground Control 3.0 Left Rear Leg (342610) — mirror-image companion for the opposite side.

⚠️ Position-Specific Fitment

Ground Control 3.0 6-point systems use different leg configurations by position — left/right, front/middle/rear. This specific leg is engineered for the right-side rear position on the LC675817 system. Verify your failed leg's exact position before ordering — installing the wrong position variant will result in fitment problems.

Companion Ground Control 3.0 Components

If you're diagnosing a broader Ground Control 3.0 system issue:

• Lippert Ground Control 3.0 Hall Effect Jack Motor (343758) — replaces individual failed motors within a leg
• Ground Control 3.0 Advantage 4-Point Controller (2021018954 / MPN 27451)
• Ground Control 3.0 Advantage 6-Point Controller (803279 / MPN 25055)

⚠️ NOT Compatible with Ground Control 2.0 or TT Systems

The Lippert leveling ecosystem includes multiple platforms that are NOT interchangeable:

• Ground Control 2.0 — different jack architecture
• Ground Control 3.0 — this listing's platform
• Ground Control TT — travel trailer platform

Verify your existing installation is a Ground Control 3.0 6-point system (LC675817) before ordering.

Performance Specifications

• Total Lift: 12-1/2"
• Retracted Height: 22-1/2"
• Extended Height: 35"
• Load Capacity: 5,000 lbs

What's Included

• Complete leg assembly
• Mounting plate
• Attached foot plate

⚠️ Direct-Ship from Lippert — Standard Lead Time Applies

This is a Lippert direct-ship item — expect standard Lippert lead time before shipment.

⚠️ Professional Installation Recommended

Leg replacement involves mechanical work under the RV, 12V DC electrical wiring, and integration with the Ground Control 3.0 leveling system. Installation should be performed by a qualified RV service technician unless you have prior experience with Lippert Ground Control components.

Genuine Lippert OEM

Key Features

• Genuine Lippert (LCI) OEM Ground Control 3.0 replacement leg
• Part number: 428493
• Position: Right-side rear
• Type: Short-stroke Hall Effect Jack
• For Lippert Ground Control 3.0 6-point system (LC675817)
• Left-side rear mirror companion: Lippert 342610
• 5,000 lb capacity
• 22-1/2" retracted, 35" extended (12-1/2" total lift)
• Includes mounting plate and attached foot plate
• NOT compatible with Ground Control 2.0 or TT systems
• Direct-ship from Lippert — standard lead time applies

Specifications

• Brand: Lippert (LCI)
• Series: Ground Control 3.0
• Part Number: 428493
• Type: Hall Effect Jack Replacement Leg (Short Stroke)
• Position: Right-side rear
• Compatible System: Ground Control 3.0 6-point electric leveling (LC675817)
• NOT Compatible With: Ground Control 2.0, Ground Control TT
• Total Lift: 12-1/2"
• Retracted Height: 22-1/2"
• Extended Height: 35"
• Load Capacity: 5,000 lbs
• Included: Complete leg assembly, mounting plate, attached foot plate
• Left-Side Rear Mirror Companion: Lippert 342610
• Shipping: Direct-ship from Lippert (standard lead time applies)
