Lippert 4-Point Leveling + Slide-Out Control Module | 2020003067

Restore control to your Lippert 4-point hydraulic leveling and slide-out system with the Lippert 2020003067 Control Module (Vendor Part #06-8294 / SKU 26095). Current production consolidated replacement controller for LCI 4-point systems configured without a rear sensor. Supersedes 6 legacy part numbers with plug-and-play fit using the existing LCI harness connector.

Supersedes 6 Legacy Part Numbers

The 2020003067 is the current consolidated replacement for these legacy LCI controller part numbers:

• 175226 — early production 4-point controller
• 364557 — mid-generation 4-point controller
• 365150
• 427964
• 677558 — updated 4-point controller
• 812821 — previous-generation 4-point controller (no rear sensor)

If your existing module carries any of these numbers on its label, the 2020003067 is the correct current replacement — one current part number covers all six legacy modules.

What This Controller Does

The control module is the central processing unit of your LCI hydraulic leveling and slide-out system:

• Reads input from the leveling touchpad
• Interprets jack position and system pressure data
• Sequences the hydraulic pump and solenoid valves
• Executes automatic and manual leveling routines

Common Failure Symptoms This Part Addresses

• Touchpad unresponsive or blank
• Jacks won't deploy or retract
• System powers on but auto-level won't run
• Persistent fault or error codes on the display
• One or more jacks not responding to commands

Direct Plug-In Fit — No Rewiring

Uses the existing LCI harness connector — no splicing, no rewiring, no reprogramming on compatible systems. Once connected, the module is ready to operate.

⚠️ Critical Fitment — 4-Point, No Rear Sensor

This module is ONLY for 4-point LCI hydraulic leveling systems WITHOUT a rear sensor. NOT compatible with:

• 6-point leveling systems
• Systems with a rear height sensor
• Systems using a separate slide-out controller

Installing this module on the wrong system configuration will result in leveling malfunctions.

Confirm Before You Order

• Check the part number on your existing controller label — should match one of the six superseded numbers above
• Count your jacks: exactly 4 jacks required
• Check for a rear sensor harness — if you have one, this module isn't compatible
• Contact LCI at 1-574-535-1125 with your system serial number if uncertain

Typical System Configuration This Fits

Designed for LCI electric-over-hydraulic leveling and slide-out systems installed on:

• Class A motorhomes
• Fifth wheels
• Travel trailers

Common LCI system families in this configuration include OneControl-compatible and older slide-out/leveling combo systems produced through the mid-2010s and later.

Installation Overview

The control module is typically mounted inside a compartment near the hydraulic pump assembly or on a bracket near the chassis. Replacement involves:

1. Disconnect 12V power (disconnect coach battery)
2. Disconnect the existing module's multi-pin harness connector
3. Remove the module from its mounting bracket (2-4 screws)
4. Transfer the bracket if needed, then mount the new module
5. Reconnect the harness
6. Test all four jacks individually before running auto-level

No programming or initialization is required on compatible systems. If your system uses OneControl integration, confirm firmware compatibility with LCI after installation.

⚠️ What's NOT Included

This part replaces the controller module ONLY. Not included:

• Touchpad / hand control
• Hydraulic pump, motor, or valves
• Jacks or jack hardware
• Wiring harness or mounting hardware

If your leveling system problem is traced to a failed pump, solenoid valve, or touchpad, this controller alone will not resolve those issues. Diagnose the specific failed component before replacing parts.

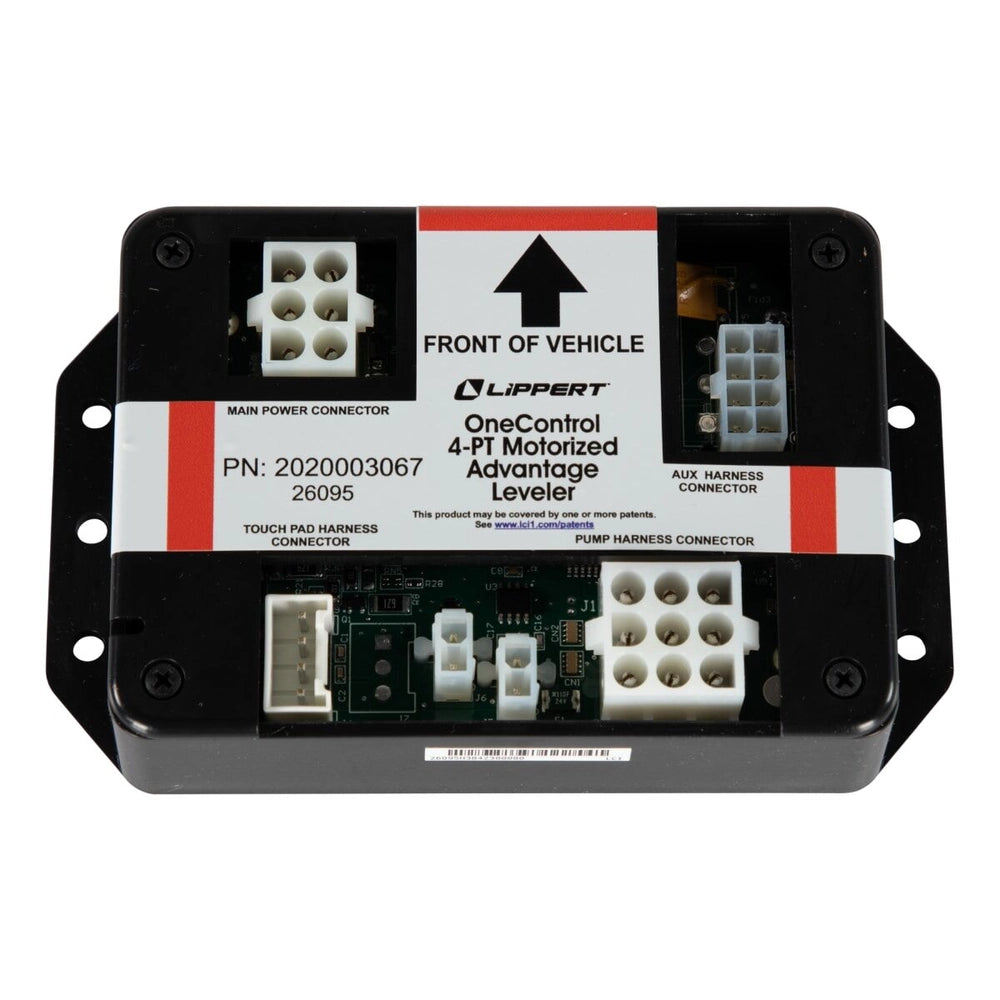

Part Identification

• Lippert Part Number: 2020003067
• Vendor Part Number: 06-8294
• SKU: 26095 (and 045-175226)

Weight

3 lbs

Electrical

• System Voltage: 12V DC (standard RV chassis)
• Connection Type: Multi-pin harness connector (existing LCI wiring harness)

⚠️ Professional Installation Recommended

Involves 12V DC electrical wiring and integration with the LCI hydraulic leveling and slide-out control system. Installation should be performed by a qualified RV service technician unless you have prior experience with LCI leveling system service. Always disconnect the coach battery before removing or installing the control module.

1-Year Limited Manufacturer Warranty

Genuine Lippert OEM

Key Features

• Genuine Lippert (LCI) OEM control module
• Part number: 2020003067 (Vendor 06-8294, SKU 26095)
• Supersedes 6 legacy part numbers: 175226, 364557, 365150, 427964, 677558, 812821
• For 4-point LCI hydraulic leveling + slide-out systems WITHOUT rear sensor
• Direct plug-and-play fit using existing LCI harness connector
• No rewiring, no programming required on compatible systems
• NOT compatible with 6-point systems or systems with rear sensor
• 12V DC standard RV chassis
• Weight: 3 lbs
• Controller module ONLY — no touchpad, pump, valves, jacks, or harness included
• Backed by 1-year limited manufacturer warranty

Specifications

• Brand: Lippert (LCI)
• Lippert Part Number: 2020003067
• Vendor Part Number: 06-8294
• SKUs: 26095, 045-175226
• Type: Control Module / Controller (Leveling + Slide-Out)
• Supersedes: 175226, 364557, 365150, 427964, 677558, 812821
• Leveling System Type: LCI Hydraulic (Electric-Over-Hydraulic)
• Jacks Supported: 4-point (four jacks)
• Rear Sensor: NOT supported (for systems WITHOUT rear sensor)
• Slide-Out Control: Included (per Lippert)
• Typical RV Types: Class A motorhomes, fifth wheels, travel trailers with LCI hydraulic leveling
• System Voltage: 12V DC
• Connection: Multi-pin harness (existing LCI wiring)
• Weight: 3 lbs
• Included: Control module only
• NOT Included: Touchpad, pump, motor, valves, jacks, harness, mounting hardware
• Warranty: 1-year limited manufacturer warranty
