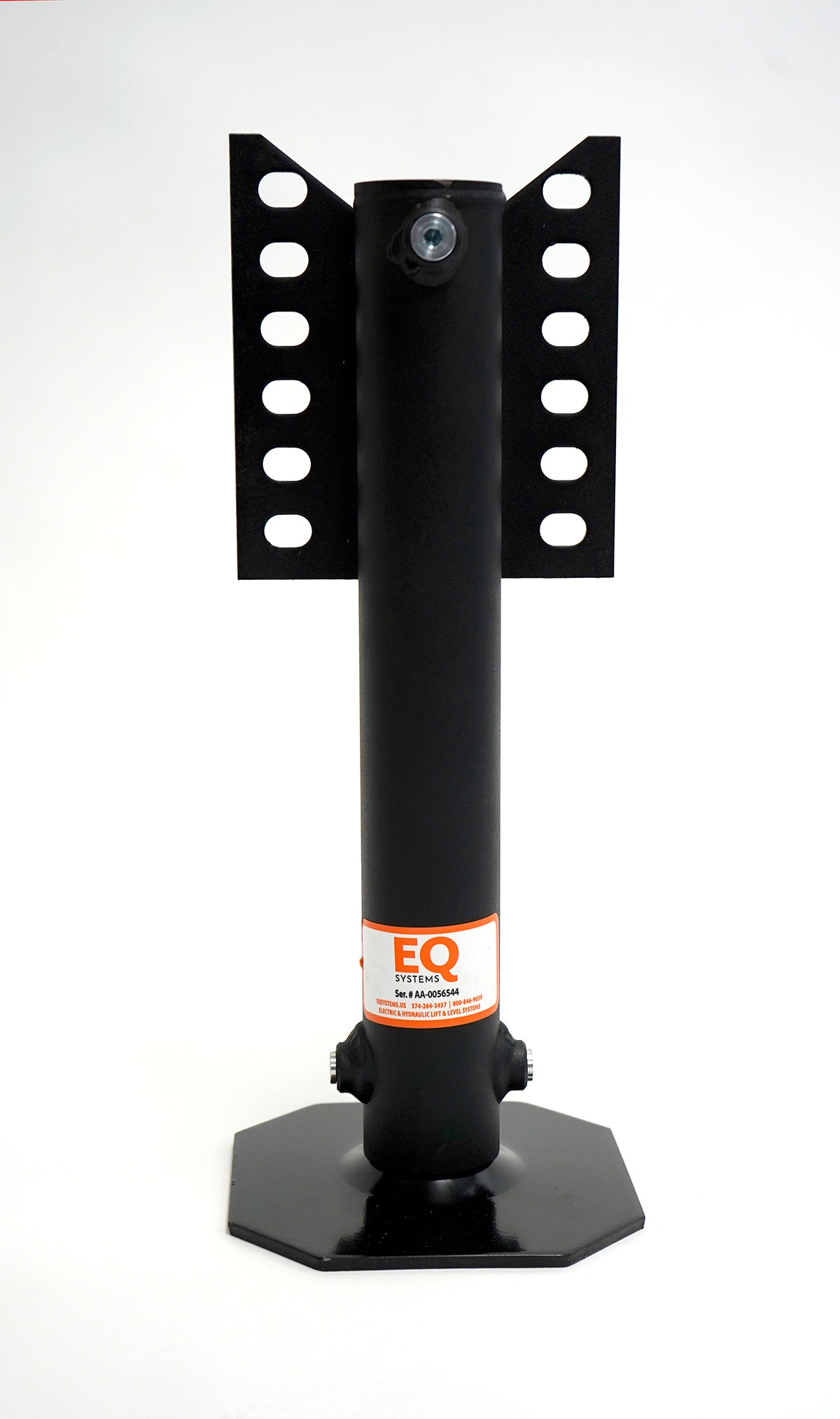

EQ Systems SL 13 HP Straight-Leg Hydraulic Jack | Part 7842 | 7,500 lbs | 13" Stroke | No Leg Switch

Replace or add an EQ Systems SL 13 HP Straight-Leg Hydraulic Jack (Part 7842) to your EQ Systems lifting or leveling system. 13" stroke, 7,500 lbs capacity, powder-coated for durability, and light for its capacity — well-suited to applications with limited ground clearance. This is the version WITHOUT a leg switch — for systems that report jack position another way or not at all. Available at The RV Surplus.

Fitment critical: Verify configuration before ordering. Call EQ Systems at 800-846-9659.

⭐ 7,500 lbs Lifting Capacity

• 13" stroke, 2" cylinder bore
• Retracted length: 15.98" | Extended: 30"
• Only 20 lbs — light for its lifting capacity
• Powder-coated finish

⭐ No Leg Switch (Standard Version)

• For systems that report jack position another way — or not at all
• If your control panel shows a jack-down light per leg, order the leg-switch version instead

⭐ Body Plate Mount

• 2⅜" body plate mount
• Body length: 16⅜"
• Plate position: -⅞" (from closed end of body)

Making Sure This Is Your Jack

Body length is the fixed outer body measured with the jack retracted. Plate position is measured from the closed end of the body — positive toward the foot, negative past the closed end. Measure both before ordering, because EQ Systems has built the same model in more than one configuration.

Part 7842 appears on more than one row of the identification chart:

• 17⅜" body at 0" plate position (Obsolete — contact EQ Systems if yours matches)
• 16⅜" body at -⅞" plate position (this listing)

Other SL 13 builds:

• Part 70381 — C-channel bracket mount, 16⅜" body at 7¼"
• Part 7842A — 16⅜" body at 2"
• Part 7842REV — 7842A build with a 10×10 foot

Service Parts for This Jack

• Replacement foot pad: part 70385 (7×7)
• Replacement cylinder: part 3142
• Replacement nut and bolt: part 3203

Documents

• Jack Replacement Cylinder and Foot Identification Chart (PDF)
• EQ Systems Class A and Class C System Guide (PDF)
• Required Maintenance Items for EQ Hydraulic Jacks & Slide Systems (PDF)

Other SL Series Jacks

• SL 13 LP (7842A) — low-profile version, 16⅜" body at 2" plate position
• SL 15 (7636A) — longer 15" stroke
• SL 16 (7214) — 16" stroke without leg switch
• SL 16 (7114) — 16" stroke with leg switch
• SL 18 (7134) — 18" stroke without leg switch
• SL 18 (7234) — 18" stroke with leg switch
• SL 24 (7848) — 24" stroke

90-Day Warranty

Backed by EQ Systems' 90-day replacement part warranty. Check documentation for full terms.

Specifications

• Brand: EQ Systems
• Model: SL 13 HP Straight-Leg Hydraulic Jack
• SKU: 7842
• Type: Replacement straight-leg jack (no leg switch)
• Lifting Capacity: 7,500 lbs
• Stroke: 13"
• Cylinder Bore: 2"
• Retracted Length: 15.98"
• Extended Length: 30"
• Weight: 20 lbs
• Mount Style: 2⅜" body plate mount
• Body Length: 16⅜"
• Plate Position: -⅞"
• Finish: Powder-coated
• Warranty: 90-day replacement part warranty
