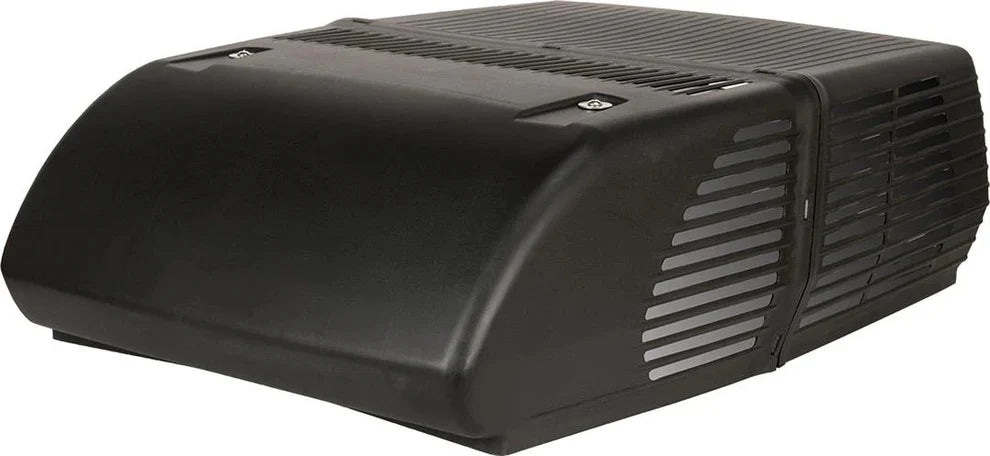

Coleman Mach 10 RV AC | 15K BTU | Heat & Condensate Pump | Black | 35024-0792

Upgrade your RV cooling with the Coleman Mach 10 RV Air Conditioner with Heat Pump — Black (Part #35024-0792). Genuine Coleman Mach OEM 15,000 BTU rooftop AC with integrated heat pump, R32 refrigerant, condensate pump, and 11" low-profile design. Fits any 14" × 14" opening — versatile ducted OR non-ducted installation.

⭐ 15,000 BTU Cooling — 310 CFM Airflow

Powerful cooling performance in a compact package:

• 15,000 BTU cooling capacity
• 310 CFM airflow — efficient air movement
• R32 refrigerant — enhanced efficiency and reduced environmental impact

⭐ Integrated Heat Pump

Heat pump function provides supplemental electric heating without propane usage — meaningful reduction in propane dependency during mild-weather heating.

⭐ Built-In Condensate Pump — Standout Feature

Standout feature vs standard rooftop ACs: integrated condensate pump actively pumps condensation down a discharge tube rather than letting it pool in the AC or on the roof. Meaningful benefits:

• Prevents water pooling on the AC housing or RV roof
• Reduces the risk of roof water damage over time
• Cleaner discharge management — condensate goes where you want it to go

Meaningful upgrade over passive-drain rooftop AC designs.

⭐ Low-Profile 11" Height

Slim profile — standing just over 11" tall — belies its superior cooling capacity. Meaningful for 5th wheels, taller units, or installations where roof clearance matters (low-clearance parking, garage storage, driveway constraints).

⭐ Universal 14" × 14" Roof Opening Fitment

Fits any 14" × 14" RV roof opening — the industry-standard AC roof opening size. Easy replacement for most existing rooftop AC installations without cutting sheet metal.

Ducted OR Non-Ducted Installation

Versatile installation flexibility — works with both ducted AND non-ducted systems. Suits varied RV configurations and preferences.

Companion Ceiling Assembly

If you need a ceiling assembly for a ducted cool-only installation, see the Coleman Mach RV Ceiling Assembly 8430A633 — Cool-Only Lateral Ducted. Note: the 8430A633 is cool-only — for a heat pump installation like this Mach 10, verify a compatible heat pump-capable ceiling assembly is used.

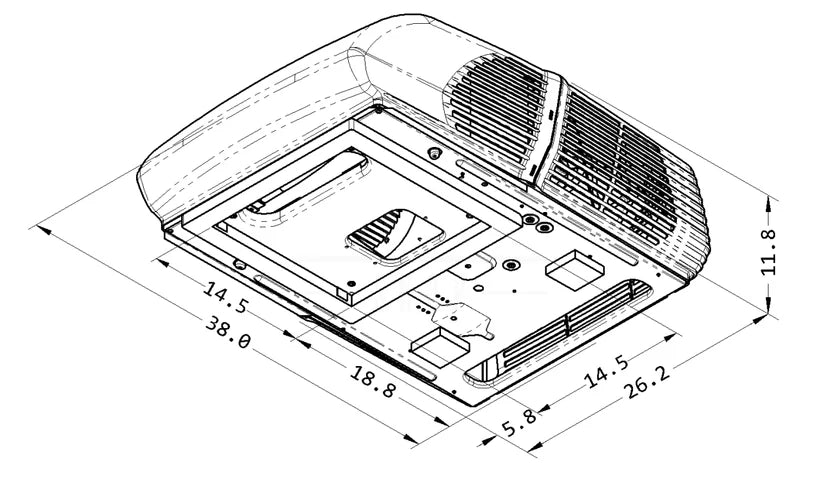

Size and Weight

• Height: 11.8"
• Width: 26.1"
• Length: 38.0"
• Weight: 82 lbs

Cross-Reference Part Numbers

• Part Number: 35024-0792

Black Finish

⚠️ Professional Installation Required

Installation involves rooftop mounting, weather sealing, 120V AC electrical wiring, control network wiring, thermostat integration, and condensate pump discharge line routing. Installation should be performed by a qualified RV service technician.

2-Year Manufacturer Warranty

Genuine Coleman Mach OEM

Key Features

• Genuine Coleman Mach OEM Mach 10 rooftop AC with heat pump
• Part number: 35024-0792
• 15,000 BTU cooling capacity
• 310 CFM airflow
• Integrated heat pump for efficient electric heating
• R32 refrigerant
• ⭐ Built-in condensate pump — pumps condensation down a discharge tube (no roof pooling)
• Low-profile 11" height — meaningful for 5th wheels, taller units, and low-clearance installations
• Fits any 14" × 14" roof opening — universal RV AC opening compatibility
• Ducted OR non-ducted installation
• Black finish
• Dimensions: 11.8"H × 26.1"W × 38.0"L, 82 lbs
• Backed by 2-year manufacturer warranty

Specifications

• Brand: Coleman Mach
• Series: Mach 10
• Part Number: 35024-0792
• Type: RV Rooftop Air Conditioner with Heat Pump (Low-Profile)
• Cooling Capacity: 15,000 BTU
• Airflow: 310 CFM
• Heat Pump: Yes (integrated electric heating)
• Refrigerant: R32
• Condensate Pump: Built-in (pumps condensation down discharge tube)
• Configuration: Ducted OR Non-Ducted
• Roof Opening Requirement: 14" × 14"
• Height: 11.8"
• Width: 26.1"
• Length: 38.0"
• Weight: 82 lbs
• Color: Black
• Warranty: 2-year manufacturer warranty
