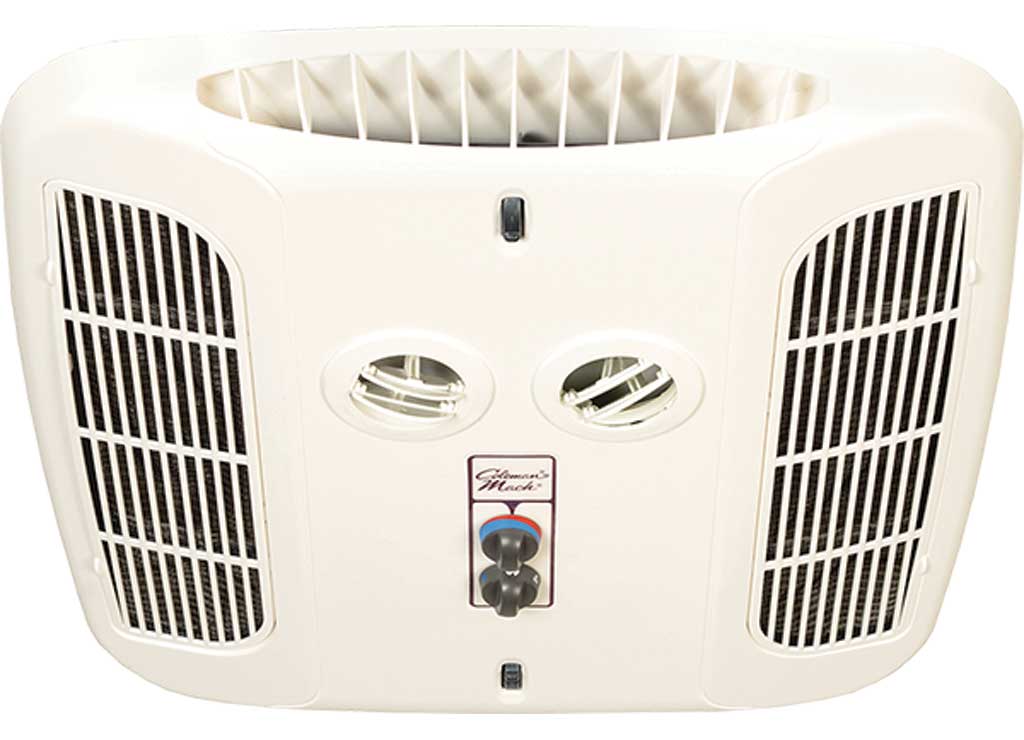

Coleman Mach AC Deluxe Ceiling Assembly | 9430E7153 | Non-Ducted | White

Coleman Mach AC Deluxe Ceiling Assembly | 9430E7153 | Non-Ducted | White

$295.00 AUD
$295.00 AUD
Sale Sold out
Shipping calculated at checkout.

Distribute cool air throughout your RV with the Coleman Mach 9430E7153 Deluxe ChillGrille Heat-Ready Non-Ducted Ceiling Assembly in white. This manual-control ceiling assembly is the simple, reliable choice for non-ducted Coleman Mach AC installations — featuring omnidirectional ChillGrille louvers for targeted airflow, low-profile Euro styling, and pre-wiring for an optional electric heat strip whenever you want to add supplemental heat.

Manual Control — No App, No Bluetooth, No 12V Power Supply

Unlike the Bluetooth ceiling assemblies in the Coleman Mach lineup, the Deluxe ChillGrille is entirely manual. Temperature and fan speed are adjusted with control knobs on the horizontal surface of the assembly — accessible without reaching overhead or pulling out your phone. The result:

  • No app to install or configure
  • No Bluetooth pairing or smart device hassle
  • No 12V power supply circuit required — operates on standard 115V AC only
  • Simpler wiring than Bluetooth assemblies
  • Reliable, time-tested operation — no firmware to update, no apps to crash

For owners who want a no-fuss, straightforward ceiling assembly that just works, the ChillGrille is the right pick. (If you want app-based control, see the Bluetooth ceiling assemblies in the alternatives section below.)

ChillGrille Omnidirectional Louvers

The Deluxe ChillGrille's defining feature is its omnidirectional louver system. Each louver is independently adjustable:

  • Open the louvers to direct cool air downward in any direction — toward the bed, seating area, driver's zone, or galley
  • Close the louvers to redirect air forward and aft through integrated flow dampeners for even room-wide distribution

That dual-mode airflow gives you targeted comfort when you want it and even distribution when you don't.

Electric Heat Strip Ready

The 9430E7153 is pre-wired for electric heat strip use — letting you add supplemental electric heat now or in the future without replacing the ceiling assembly. The heat strip itself is sold separately, and the correct part number depends on your rooftop unit:

  • Mach 8 Series: Heat Strip #47233-4551 (sold separately)
  • All Other Coleman Mach Units (Mach 1, Mach 3, Mach 15, Roughneck): Coleman Mach 38203-4551 Heat Strip (also listed as 9233A4551 — sold separately)

Verify your rooftop unit model before ordering a heat strip — the two heat strips are not interchangeable.

Broad Coleman Mach AC Compatibility

The 9430E7153 works with the full range of Coleman Mach non-ducted rooftop air conditioners:

  • Mach 1
  • Mach 3
  • Mach 8
  • Mach 15
  • Roughneck

If you have any of these Coleman Mach rooftop units in a non-ducted setup, the Deluxe ChillGrille is the right ceiling assembly.

Low-Profile Euro Design — Only 2 Inches Thick

The contemporary Euro-style design is only 2 inches thick, maximizing overhead clearance inside the RV. The styling also covers the imprint left by earlier ceiling assembly housings — so replacing an older assembly with this one results in a clean cosmetic finish without showing the old footprint.

Tool-Free Filter Maintenance

The pop-out retainer grilles provide tool-free access to the washable air filter — pop them out, remove the filter, rinse and dry it, and reinstall. No tools required, no parts to replace, no recurring filter costs over the life of the unit.

Part Number Cross-References

This same Deluxe ChillGrille assembly is referenced under multiple part numbers depending on the supplier or catalog:

  • 9430E7153
  • 9430D7153 (the current production replacement — same assembly with same features and footprint)
  • 72-0727

All three part numbers refer to the same product. If your existing assembly shows any of these part numbers, this is the correct replacement.

Considering Other Ceiling Assemblies?

The Deluxe ChillGrille is the right pick for manual control with the omnidirectional louver system. If you want a different control style or different airflow design, we also carry:

What's Included

  • (1) Deluxe ChillGrille Non-Ducted Ceiling Assembly
  • Washable air filter
  • Installation documentation

Sold Separately

  • Mounting hardware
  • Electric heat strip (38203-4551 for most Coleman Mach units, or 47233-4551 for Mach 8)

Key Features

  • Deluxe ChillGrille omnidirectional louvers — direct air in any downward direction
  • Flow dampeners — forward and aft distribution when louvers closed
  • Manual control knobs on horizontal surface — no app, no Bluetooth, no smart device required
  • No 12V power supply needed — operates on 115V AC only
  • Electric heat strip ready — supports optional heat strip (sold separately)
  • Low-profile Euro styling — only 2" thick, maximizes headroom
  • Covers prior ceiling assembly imprints for a clean finish
  • Pop-out filter retainer grilles — tool-free filter access
  • Washable filter — no recurring replacement cost
  • Broad rooftop compatibility — Mach 1, Mach 3, Mach 8, Mach 15, Roughneck
  • For non-ducted installations
  • Cross-references: 9430E7153, 9430D7153, 72-0727 (same assembly)
  • White finish
  • Estimated install time: ~1 hour
  • 1-year manufacturer warranty (upgradable to 2-year when purchased with a Coleman Mach AC)

Specifications

  • Brand: Coleman Mach / Airxcel
  • Part Number: 9430E7153 (also 9430D7153 and 72-0727)
  • Product Line: Deluxe ChillGrille
  • Assembly Type: Non-Ducted Ceiling Assembly (Air Distribution Box)
  • Function: Cool Only & Heat Strip Ready
  • Control Type: Manual — control knobs on horizontal surface
  • Smart / Bluetooth: Not compatible
  • Power Requirement: 115V AC — no 12V power supply required
  • Heat Strip Ready: Yes (electric heat strip sold separately)
  • Mach 8 Heat Strip P/N: 47233-4551 (sold separately)
  • All Other Units Heat Strip P/N: 38203-4551 / 9233A4551 (sold separately)
  • Compatible Rooftop Units: Mach 1, Mach 3, Mach 8, Mach 15, Roughneck
  • Airflow System: ChillGrille omnidirectional louvers + flow dampeners (forward & aft)
  • Dimensions: 19" L × 20" W × 2" Thick
  • Weight: 8 lbs
  • Color: White
  • Estimated Install Time: ~1 hour
  • Warranty: 1-year manufacturer warranty (upgradable to 2-year when purchased with a Coleman Mach AC)
