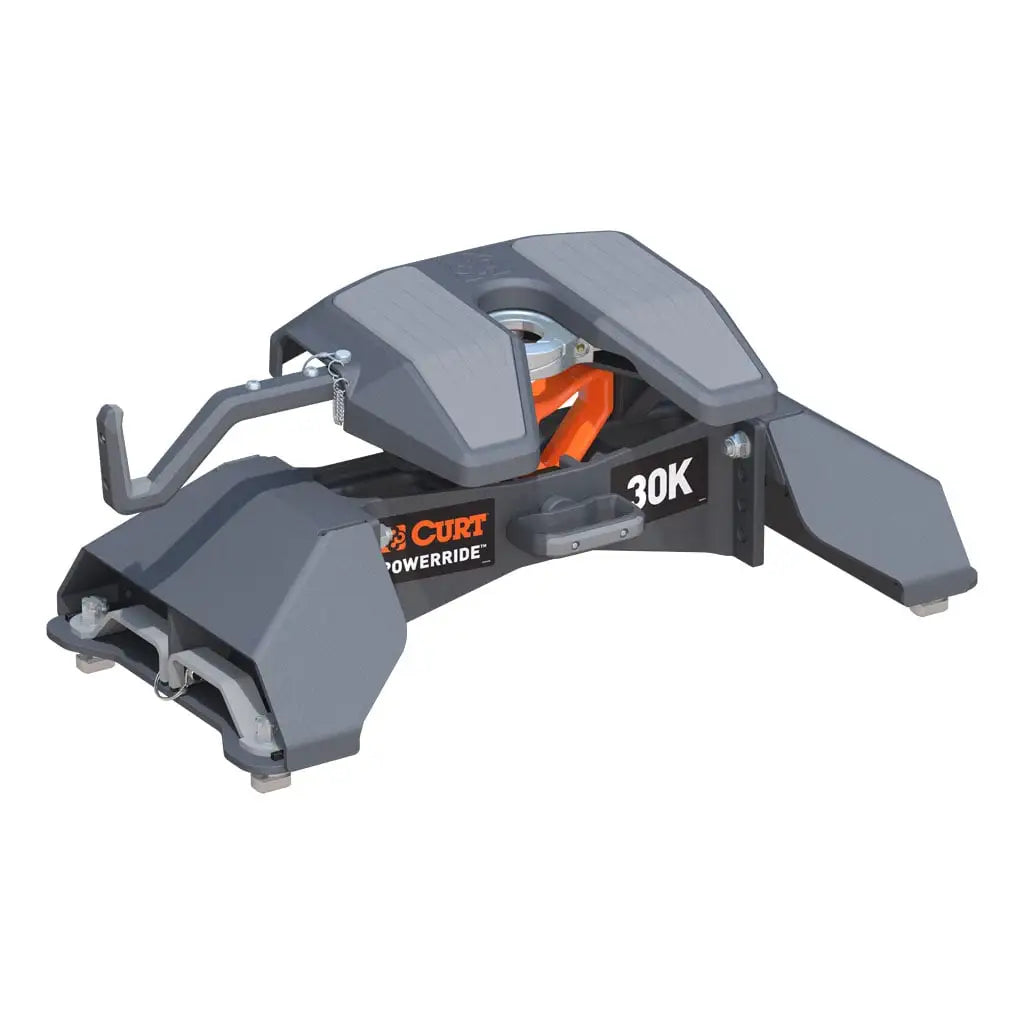

CURT PowerRide 30K 5th Wheel Hitch | 16594 | Ford F-250/F-350/F-450 SD 8' Bed Puck | 30K

Equip your Ford F-250, F-350, F-450 Super Duty puck-equipped truck for flagship 30K 5th wheel towing with the CURT PowerRide 30K 5th Wheel Hitch (Part #16594). CURT's flagship 30K hitch — grease-free operation, multi-directional head, self-resetting handle, 4" height adjustment — direct-fit to your factory puck system with CURT OEM heavy-duty puck legs. Includes PowerRide head (#16315) plus Ford-specific 30K-rated puck-system legs. Drops into your factory puck holes with quarter-turn anchors — no drilling, no rails, no under-bed brackets, no welding or fabrication. Backed by CURT's limited lifetime warranty.

The CURT PowerRide 30K — Flagship 5th Wheel Hitch

The CURT PowerRide 30K is CURT's flagship 5th wheel hitch — engineered for professional-grade towing performance with a suite of modern features that traditional heavy-duty hitches don't offer. Meaningful highlights:

• 30,000 lb gross trailer weight (GTW) — handles the largest 5th wheel trailers, luxury RVs, and heavy commercial trailers
• 7,500 lb vertical load capacity — 500 lb more than A30 (7,000 lb) — meaningful headroom for the heaviest pin weights
• ⭐ GREASE-FREE — Integrated polyethylene wear plates — no more messy grease application; smooth operation, extended plate longevity, and wear indicators to track hitch life
• ⭐ Multi-directional cast yoke head — tilts in multiple directions (not just front-to-back like A-Series), reducing strain on truck and delivering smoother ride
• ⭐ Ergonomic self-resetting handle — accessible from the side of the truck bed, self-resets after uncoupling
• ⭐ Fast one-pin head removal — hitch breaks down into smaller, lighter pieces for easier install/removal/storage
• ⭐ Strategic grip points — ergonomic moving and handling
• ⭐ 4" height adjustment — greater versatility vs typical 3" adjustment options
• ⭐ Patented interlocking jaws — full kingpin contact for coupling security
• ⭐ 3-position color-coded coupling indicator — red / yellow / green — visible from the truck cab
• Cast steel main body — dependable strength
• Premium textured dark grey Teridium finish — long-lasting rust resistance
• No welding or fabrication required for installation
• Tested to SAE J2638 safety standards
• Backed by CURT's limited lifetime warranty (one-year finish, one-year parts)

⭐ Direct Puck System Fit for Ford F-250/F-350/F-450 SD

Standout install benefit: drops directly into the Ford F-250/F-350/F-450 SD factory puck system. Meaningful benefits:

• No drilling, no rails, no under-bed brackets
• No welding or fabrication required
• Quarter-turn anchoring — install/remove in seconds
• Adjustable anchors eliminate chucking noise between legs and puck platform
• Full truck bed access when not towing
• Fast one-pin head removal — hitch breaks down into smaller pieces for easier storage
• Strategic grip points — ergonomic lifting and handling

Vehicle Fit

• Vehicle: Ford F-250, F-350, F-450 Super Duty
• Bed length: 8' (long bed only — required for 30K clearance)
• Requirement: Factory puck system (towing prep package) required — select F-250/F-350/F-450 Super Duty model years with factory puck system — verify against CURT application data
• Puck legs included: Ford Super Duty puck-system legs (30K)
• Hitch head included: PowerRide #16315

All PowerRide 30K Puck-Fit Options

PowerRide is uniquely available in direct-fit puck configurations for all three major truck platforms — Ford, Ram, and GM Heavy Duty:

• #16594 — Ford F-250/F-350/F-450 SD ($1595.95) ⬅ THIS UNIT
• #16593 — Ram 2500/3500 ($1849.95)
• #16592 — Silverado/Sierra 2500/3500 HD ($1787.95)

Prefer Universal Industry-Standard Rail Mount?

• #16315 — Hitch Head Only ($1099.95)
• #16320 — Industry-standard (rails sold separately) ($1348.95)
• #16321 — Rails included ($1591.95)

Replacement Legs

Need replacement or spare PowerRide legs? See #16908 — Replacement PowerRide 5th Wheel Legs in the mounting foundation catalog.

PowerRide vs A30 — Which 30K Should You Choose?

Both PowerRide and A30 are 30,000 lb 5th wheel hitches from CURT. Meaningful differences to help you choose:

• ⭐ GREASE-FREE (PowerRide) vs Grease plate (A30) — PowerRide's integrated polyethylene wear plates eliminate messy grease application; A30 uses a traditional grease plate
• Vertical Load: PowerRide 7,500 lb vs A30 7,000 lb — PowerRide has 500 lb more headroom for heavy pin weights
• Head Design: PowerRide multi-directional tilt vs A30 fully articulating torsion — different articulation approach; PowerRide's multi-directional design allows tilt in more axes
• Height Adjustment: PowerRide 4" vs A30 3" — greater versatility for different trailer/truck combinations
• Finish: PowerRide Teridium Grey vs A30 Carbide Black
• Puck-Fit Availability: PowerRide available for Ford, Ram, AND Chevy/GMC HD; A30 only for Chevy/GMC HD
• Sidewinder Compatibility: A30 requires a wedge for Sidewinder pin boxes; PowerRide compatibility varies — check with CURT for specific setup
• Wear Indicator Plates: PowerRide includes visible wear indicators; A30 does not

Choose PowerRide if: You value grease-free operation, want the highest vertical capacity (7,500 lb), or need the modern multi-directional head design. Also the only 30K puck-fit option for Ford or Ram trucks.

Choose A30 if: You prefer the traditional heavy-duty A-Series design with grease plate, or want the carbide black finish over teridium grey.

Load Ratings

• Gross Trailer Weight (GTW): 30,000 lb
• Vertical Load Capacity: 7,500 lb

Weight capacities are limited to the lowest-rated towing component (head + legs + puck system + trailer coupler).

Cross-Reference Part Numbers

• Part Number: 16594
• UPC: 612314052387
• Components: PowerRide hitch head #16315 + Ford Super Duty puck-system legs (30K)

⚠️ Professional Installation Recommended

The PowerRide puck-fit assembly is heavy. Puck-system installation is easier than traditional rail-mounted hitches (no welding, no fabrication, no drilling), but still involves multi-component assembly. Installation should be performed by a qualified installer.

Limited Lifetime Warranty

Backed by CURT's limited lifetime warranty (one-year finish, one-year parts).

Genuine CURT OEM

Key Features

• Genuine CURT OEM PowerRide 30K 5th Wheel Hitch
• Part Number: 16594
• UPC: 612314052387
• ⭐ Grease-free operation — integrated polyethylene wear plates
• ⭐ Multi-directional cast yoke head
• ⭐ Ergonomic self-resetting handle
• ⭐ Fast one-pin head removal
• ⭐ 4" height adjustment range
• ⭐ Direct puck system fit — no drilling, no rails, no welding
• Vehicle-specific fit: Ford F-250, F-350, F-450 Super Duty
• Bed: 8' (long bed only)
• Puck legs included: Ford Super Duty puck-system legs (30K)
• Gross trailer weight: 30,000 lb
• Vertical load capacity: 7,500 lb (500 lb more than A30)
• Finish: Premium textured dark grey Teridium
• Backed by CURT's limited lifetime warranty

Specifications

• Brand: CURT
• Part Number: 16594
• UPC: 612314052387
• Product Line: PowerRide 30K (CURT Flagship)
• Type: 5th Wheel Hitch (Puck System Direct-Fit)
• Head Included: PowerRide #16315
• Puck Legs Included: Ford Super Duty puck-system legs (30K)
• Vehicle Fit: Ford F-250, F-350, F-450 Super Duty
• Bed Length: 8' (long bed only)
• Year Range: select F-250/F-350/F-450 Super Duty model years with factory puck system — verify against CURT application data
• Gross Trailer Weight (GTW): 30,000 lb
• Vertical Load Capacity: 7,500 lb
• Main Body Construction: Cast steel
• Head Design: Multi-directional cast yoke
• Wear Plates: Integrated polyethylene (grease-free) with wear indicators
• Jaw Design: Patented interlocking dual jaws
• Handle: Ergonomic single-throw, self-resetting
• Coupling Indicator: 3-position color-coded
• Head Removal: Fast one-pin system
• Height Adjustment: 4" range
• Anchoring: Quarter-turn, adjustable
• Installation: No welding or fabrication required
• Safety Standard: SAE J2638 tested
• Finish: Premium textured dark grey Teridium
• Warranty: Limited lifetime (one-year finish, one-year parts)
