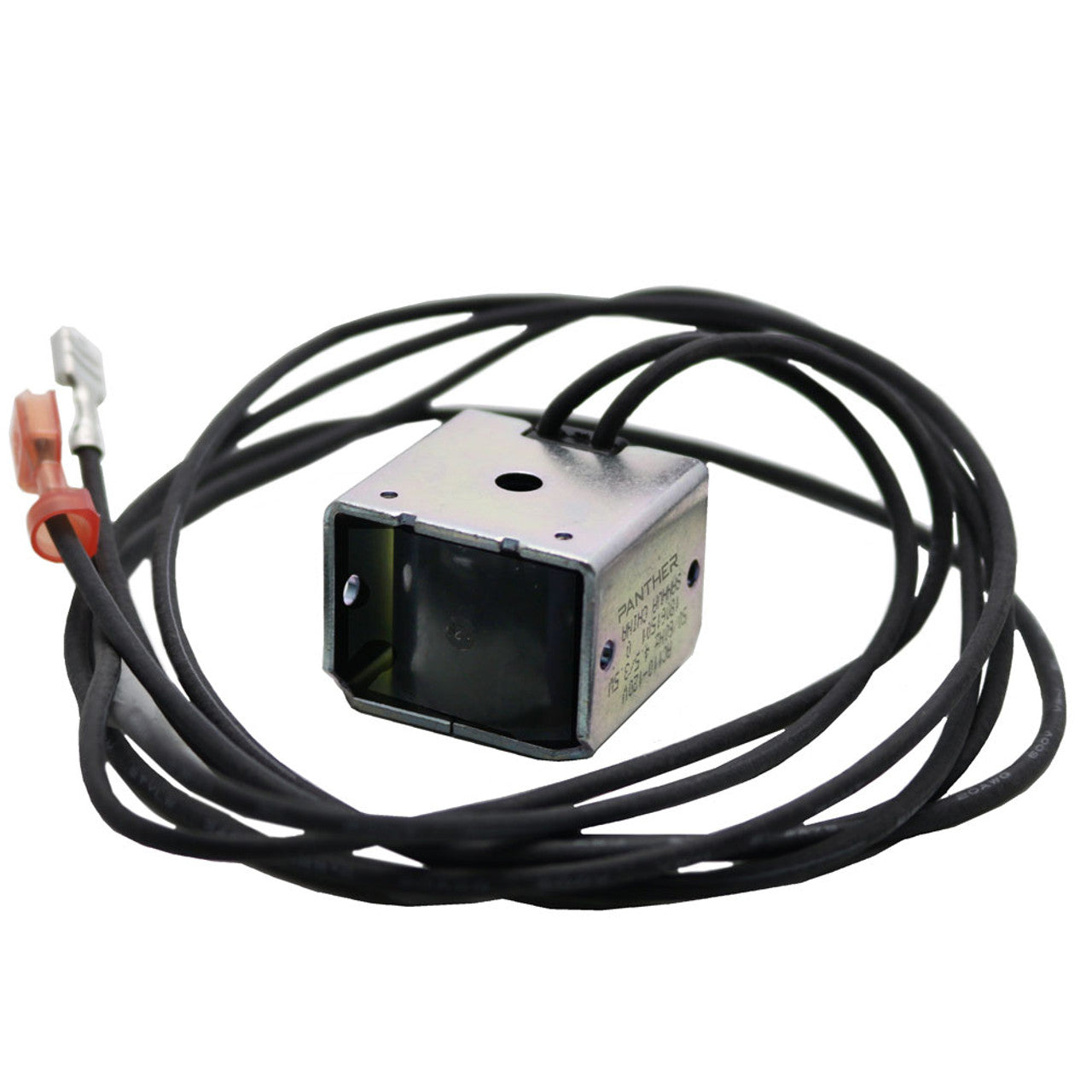

Dometic Duo-Therm Solenoid Coil Harness | 3310714.005 | OEM

Restore reliable solenoid operation on your Dometic RV air conditioner with the Dometic Duo-Therm 3310714.005 OEM Solenoid Coil Harness. Genuine Dometic OEM solenoid coil kit — direct replacement for coil number 3109864.003 (later version). Compatible across Brisk II, Penguin II, and Blizzard NXT AC platforms.

What This Does

The solenoid coil is a critical control component in the AC refrigeration system. When the coil fails, symptoms typically include improper valve operation, refrigerant flow issues, or heat pump mode failures on units equipped with reversible cycles.

Direct Replacement for Later-Version Coil 3109864.003

Direct drop-in replacement for the later-version coil part number 3109864.003. If your existing coil carries this part number, the 3310714.005 is the current OEM replacement.

⚠️ Replacing an Earlier-Version Coil? Modification Required

Important installation note: if you're replacing the earlier version coil (3105504.009) AND wire harness (3105505.014), the small screw hole will need to be enlarged so that the stud on the valve assembly will fit. Plan for this modification during installation.

Compatible AC Models

Direct replacement for the solenoid coil on these Dometic AC units:

Dometic Brisk II:

• B59146, B59186, B59196

Dometic Penguin II:

• 650015, 651815, 651816, 651916

Dometic Blizzard NXT:

• H551916

Verify your existing AC model matches one of these before ordering.

Physical Specifications

• Solenoid Box Dimensions: 1-9/16"L × 1-1/4"W × 1-1/16"
• Harness Cord Length: 28"

Cross-Reference Part Numbers

• Part Number: 3310714.005
• Later-Version Coil Replaced: 3109864.003
• Earlier-Version Coil (requires hole modification): 3105504.009 with harness 3105505.014

⚠️ Professional Installation Recommended

Installation involves 12V DC electrical wiring and integration with the AC refrigeration system's valve assembly. If replacing an earlier-version coil, screw hole enlargement is required. Installation should be performed by a qualified RV service technician unless you have prior experience with Dometic AC service.

Limited 2-Year Manufacturer Warranty

Genuine Dometic OEM

Key Features

• Genuine Dometic OEM Duo-Therm solenoid coil harness
• Part number: 3310714.005
• Direct replacement for later-version coil: 3109864.003
• ⚠️ Requires hole enlargement if replacing earlier-version coil 3105504.009 / harness 3105505.014
• Compatible with Brisk II: B59146, B59186, B59196
• Compatible with Penguin II: 650015, 651815, 651816, 651916
• Compatible with Blizzard NXT: H551916
• 28" harness cord length
• Backed by limited 2-year manufacturer warranty

Specifications

• Brand: Dometic (Duo-Therm)
• Part Number: 3310714.005
• Type: Solenoid Coil Harness
• Direct Replaces: Later-version coil 3109864.003
• Also Replaces (with modification): Earlier-version coil 3105504.009 with wire harness 3105505.014 (small screw hole must be enlarged for valve assembly stud)
• Compatible Brisk II Models: B59146, B59186, B59196
• Compatible Penguin II Models: 650015, 651815, 651816, 651916
• Compatible Blizzard NXT Model: H551916
• Solenoid Box Dimensions: 1-9/16"L × 1-1/4"W × 1-1/16"
• Harness Cord Length: 28"
• Warranty: Limited 2-year manufacturer warranty
