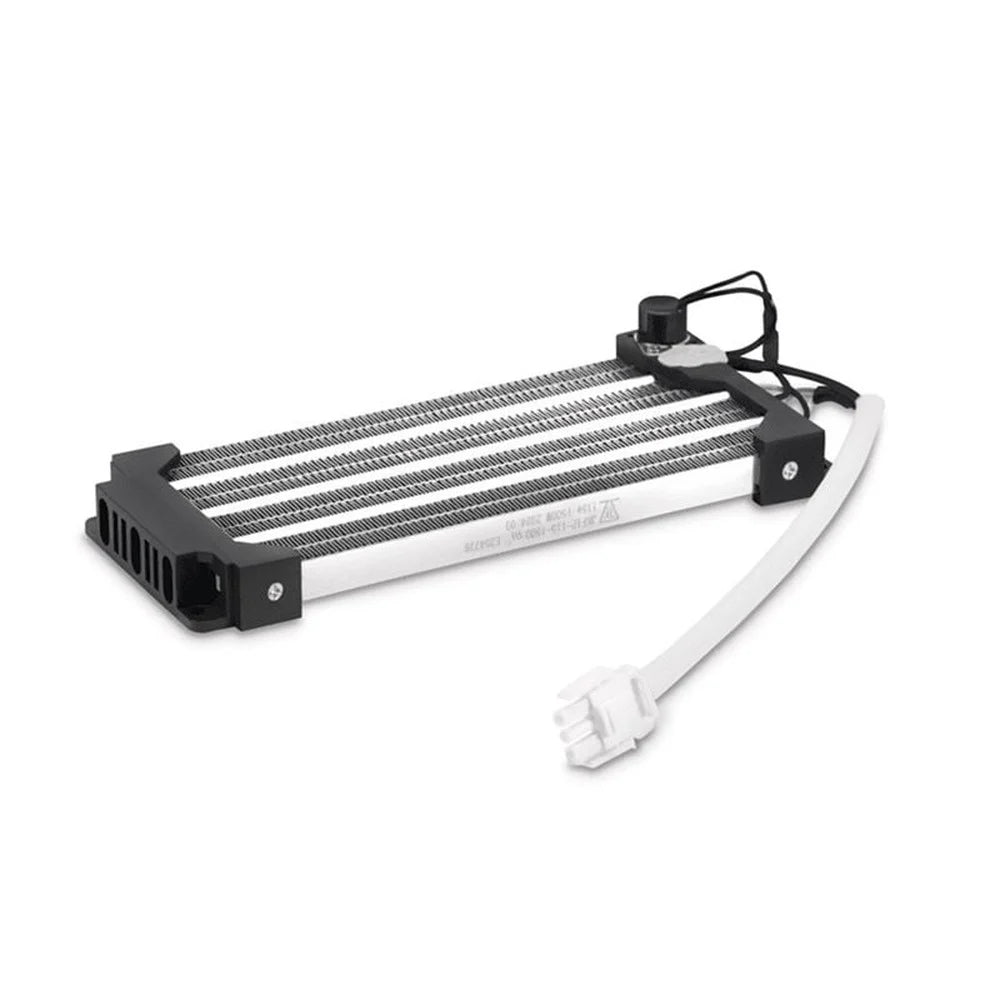

Dometic 9620017649 Ceramic Heat Strip Kit | 5000 BTU | Non-Ducted AC

Add supplemental electric heat to a non-ducted Dometic rooftop A/C with the Dometic Ceramic PTC Heat Strip Kit (Part 9620017649) — a 5000 BTU / 1500-watt ceramic heater that installs into a compatible Dometic ceiling assembly and runs off 120V shore power. Also known as AP-269-PTC.HTR-AS-B. Available at The RV Surplus.

⭐ Why Fit an A/C Heat Strip

• Take the chill off without firing the propane furnace — big win on cool evenings and shoulder-season trips
• Runs on 120V AC shore power — no LP consumption, no furnace cycling
• Extends your camping season — shoulder-season comfort without carrying extra propane
• Ceramic PTC element — self-regulating, safer than resistive coils
• Distributed through your existing A/C air path — same registers, same fan

⚠️ Supplemental Heat — Not a Furnace Replacement

5000 BTU is not enough to heat a full-size RV in truly cold weather. This is a supplemental / shoulder-season solution. When outside temperatures drop into the low 30s or below, you'll still want your propane furnace running as primary heat, especially to keep holding tanks and plumbing above freezing.

⭐ Fitment — Non-Ducted Units Only

For non-ducted Dometic rooftop air conditioners with a compatible ceiling assembly:

• Dometic FreshJet 3 Series
• Dometic FreshJet 5 Series
• Dometic Brisk II Series
• Dometic Penguin II Series

Installs into a CDADB (Comfort Deluxe Air Distribution Box) ceiling assembly — verify your ceiling assembly matches before ordering.

⚠️ Ducted Systems Take a Different Kit

This kit is for non-ducted A/Cs only. If your Dometic rooftop feeds through a ducted ceiling and floor registers throughout the coach, you'll need the ducted-version heat strip kit — not this one.

⚠️ Electrical Load — Confirm Capacity

• 1500 watts / ~12.5 amps at 120V in addition to whatever the A/C compressor draws
• On 30-amp service, plan your electrical loads carefully when running heat + other appliances
• On 50-amp service, no practical issue
• Generator use: confirm your generator has the headroom for A/C + heat strip startup surge

What's Included

• (1) Dometic Ceramic PTC Heat Strip Kit (Part 9620017649 / AP-269-PTC.HTR-AS-B)
• Mounting hardware and instructions

Dometic Manufacturer Warranty

Backed by Dometic's standard air conditioner accessory warranty. Register with Dometic after install to activate.

Specifications

• Brand: Dometic
• Part Number: 9620017649
• Alternate Part Number: AP-269-PTC.HTR-AS-B
• Type: Ceramic PTC Heat Strip Kit
• Heating Output: 5000 BTU
• Power: 1500 watts
• Voltage: 120V AC (115V rated)
• Current Draw: ~12.5 amps
• Installation: Non-ducted Dometic rooftop A/Cs
• Compatible A/Cs: FreshJet 3, FreshJet 5, Brisk II, Penguin II
• Compatible Ceiling Assembly: CDADB
