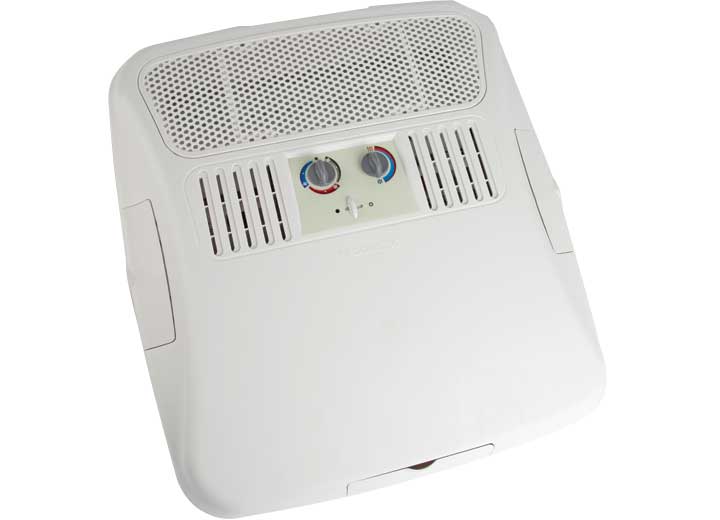

Dometic Heat Pump Air Distribution Box | 3314853.000 | Non-Ducted

Complete your Penguin II Heat Pump or FreshJet 5 Mechanical Heat Pump installation with the Dometic Air Distribution Box for Non-Ducted Heat Pump Air Conditioners (Part #3314853.000 / 9105304489). Genuine Dometic OEM ADB with manual controls — designed for Penguin II 650015/650016 low-profile heat-ready systems AND compatible with FreshJet 5 Mechanical Heat Pump units.

What This Does

The ADB is the ceiling-mounted interface for non-ducted heat pump AC installations. It houses:

• Manual control knobs for temperature and fan operation
• Heat pump operation controls
• Air outlet vents for coach airflow
• Filter mounting (washable filter sold separately)

⭐ Heat Pump Configuration

Important differentiator from other Dometic ADBs: this unit is specifically engineered for heat pump AC systems — provides the control interface for both cooling AND electric heat operation.

Compatible AC Systems

Works with:

• Dometic Penguin II 650015 / 650016 low-profile heat-ready AC systems
• Dometic FreshJet 5 Mechanical Heat Pump units, including the FreshJet 5 Mechanical Heat Pump — Black (FJX5557MHPBKCS)

Non-Ducted Installations Only

Engineered specifically for non-ducted AC systems — air is distributed directly through the ADB into the living space rather than through overhead ducts.

⚠️ NOT Heat Strip Ready

Important compatibility note: this ADB is NOT heat strip ready. Uses the AC's integrated heat pump function for heating rather than a separate heat strip. If your installation requires heat strip support, this is not the correct ADB.

⚠️ Washable Filter NOT Included

Washable filter is sold separately.

Manual Controls — No Remote

Direct-operation ADB with manual controls at the ceiling assembly. No remote control — operation is done at the ADB itself.

Electrical Specifications

• Control Voltage: 12V DC
• Voltage Rating: 110V AC

What's Included

• Air Distribution Box (3314853.000)
• Mounting hardware

What's NOT Included

• Washable filter (sold separately)
• Remote control (not applicable — manual controls only)

Grill Type

Chill grill design.

Cross-Reference Part Numbers

• Part Number: 3314853.000
• Alt Reference: 9105304489

⚠️ Professional Installation Recommended

Installation involves ceiling mounting, integration with the AC unit's heat pump control system, and 12V DC control wiring. Installation should be performed by a qualified RV service technician.

Genuine Dometic OEM

Key Features

• Genuine Dometic OEM heat pump air distribution box
• Part number: 3314853.000 (Alt: 9105304489)
• Non-ducted configuration
• Heat pump function — cooling AND heat control
• Manual controls at the ceiling assembly (no remote)
• Compatible with: Dometic Penguin II 650015/650016 low-profile heat-ready ACs AND FreshJet 5 Mechanical Heat Pump units
• Chill grill design
• NOT heat strip ready
• Control voltage: 12V DC
• Voltage rating: 110V AC
• Includes mounting hardware
• Washable filter NOT included

Specifications

• Brand: Dometic
• Part Number: 3314853.000
• Alt Reference: 9105304489
• Type: Air Distribution Box (Non-Ducted, Heat Pump)
• Configuration: Non-Ducted
• Function: Heat Pump
• Control Type: Manual (at ceiling assembly)
• Grill Type: Chill
• Heat Strip Ready: No
• Remote Control: No
• Control Voltage: 12V DC
• Voltage Rating: 110V AC
• Compatibility: Dometic Penguin II 650015/650016 low-profile heat-ready ACs, FreshJet 5 Mechanical Heat Pump units
• Included: ADB, mounting hardware
• NOT Included: Washable filter
