Lippert Power Tongue Jack | 285318 | 3,500 lb | A-Frame | Black

Retire the manual crank with the Lippert Power Tongue Jack — Black (SKU 285318). Push-button electric tongue jack for A-frame RVs and travel/utility trailers — lowers and raises with a single button press, so you can spend more time enjoying your trip and less time cranking. 3,500 lb lift capacity with 18" stroke.

What This Does

Replaces the traditional manual crank on your trailer's A-frame tongue with a push-button electric jack that:

• Lifts and lowers your trailer at the touch of a button
• Includes LED lights for nighttime operation
• Includes manual override crank as a backup if power fails

Performance Specifications

• Lift Capacity: 3,500 lbs

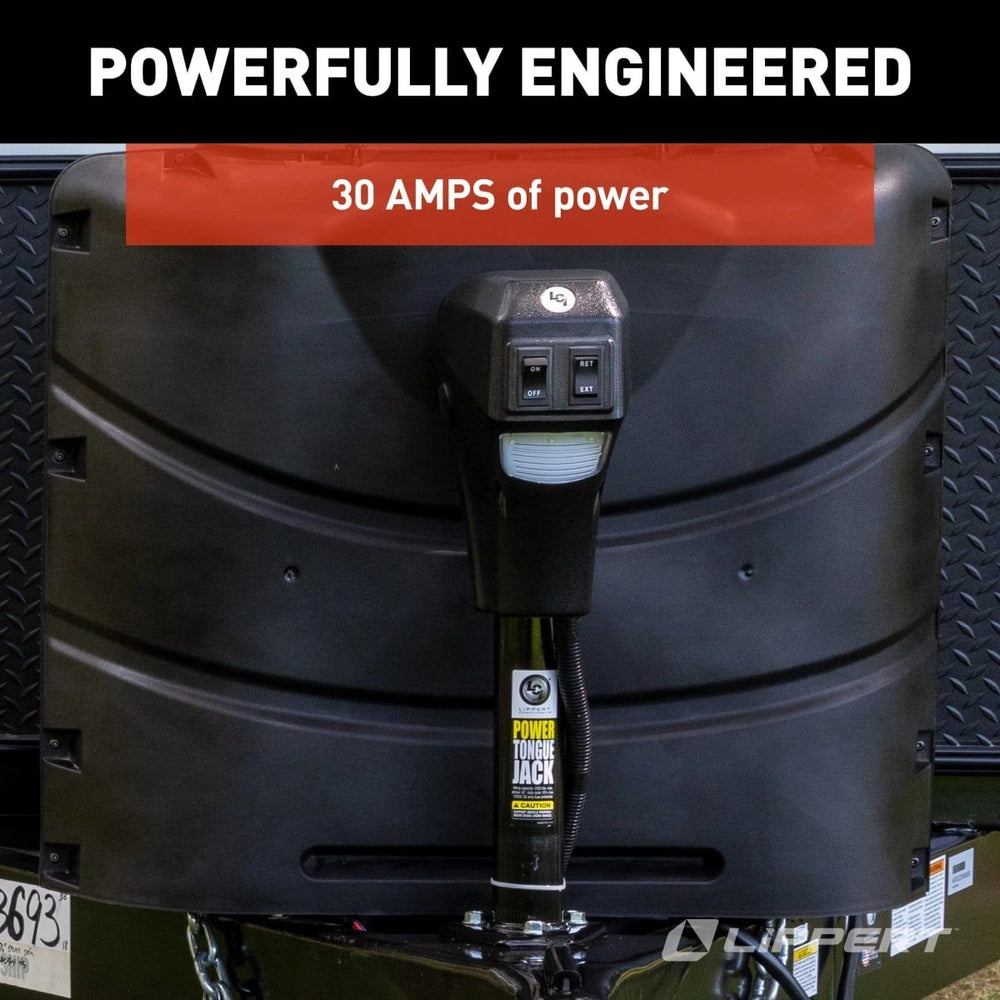

• Power: 30 A
• Stroke: 18" (extends from 10.75" retracted to 28.75" extended)
• Footpad: 5.4" diameter

For A-Frame Trailers

Designed specifically for A-frame RVs and travel or utility/cargo trailers. Verify your trailer has an A-frame tongue configuration before ordering.

Durable Textured Casing

Textured casing helps protect the jack body from damage during road use, gravel exposure, and typical trailer wear.

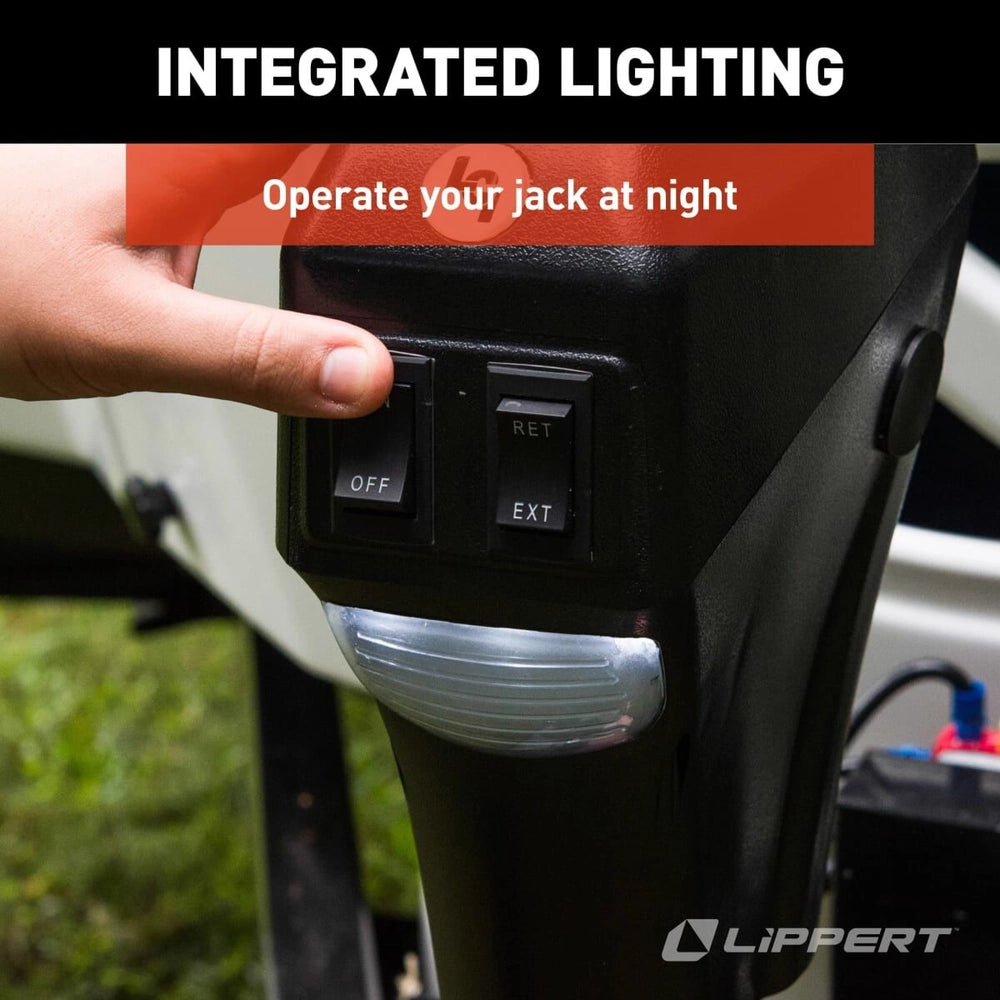

LED Lights + Manual Override Crank

• LED lights for nighttime hitching/unhitching
• Manual override crank included — backup operation if the power fails

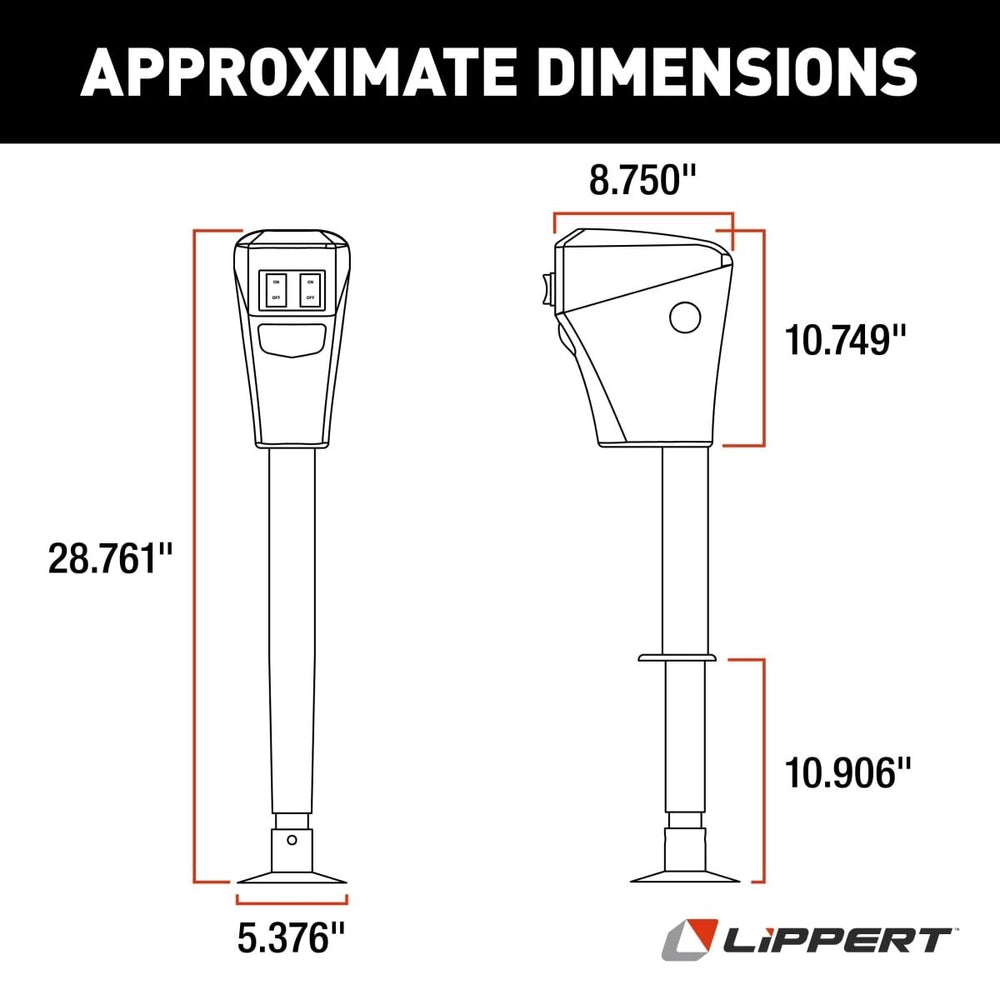

Physical Dimensions

• Retracted Height: 10.75"
• Extended Height: 28.75"
• Stroke: 18"
• Footpad Diameter: 5.4" (5-3/8")

Shipping Dimensions

36" L × 13" W × 8" H | 28 lbs

Supersedes These Earlier SKUs

• 1167441
• 116744
• 181794
• 671418
• 1817941

What's Included

• Jack body
• 5-3/8" diameter foot pad
• Hand crank (manual override)
• 2-1/2" clevis pin
• Hairpin cotter pin
• #6-24 × 1" mounting bolts (3)

Cross-Reference Part Numbers

• SKU: 285318
• Manufacturer Reference: 1817941
• UPC: 848150002044

Country of Origin

China

Black Finish

⚠️ Direct-Ship from Lippert — Standard Lead Time Applies

This is a Lippert direct-ship item — expect standard Lippert lead time before shipment.

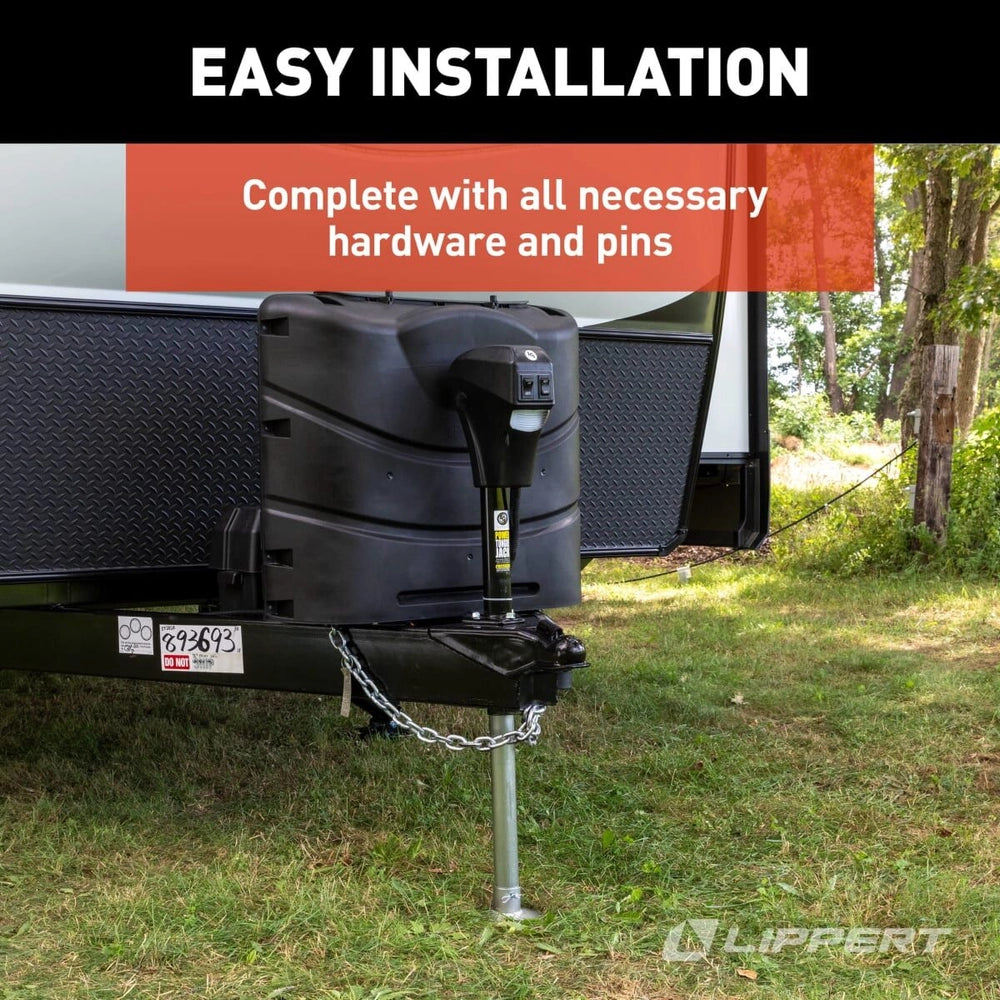

⚠️ Professional Installation Recommended

Installation involves 12V DC electrical wiring and mounting to the A-frame trailer tongue. Installation should be performed by a qualified RV service technician unless you have prior experience with tongue jack installation.

1-Year Warranty

Genuine Lippert OEM

Key Features

• Genuine Lippert (LCI) OEM power tongue jack
• SKU: 285318
• Manufacturer Reference: 1817941
• Push-button electric operation — no more manual cranking
• 3,500 lb lift capacity
• 30 A power
• 18" stroke (10.75" retracted to 28.75" extended)
• 5.4" footpad
• LED lights for nighttime use
• Manual override crank included
• Durable textured casing
• For A-frame RVs and travel/utility/cargo trailers
• Bolt-on mounting to existing trailer tongue
• Black finish
• Supersedes: 1167441, 116744, 181794, 671418, 1817941
• Direct-ship from Lippert — standard lead time applies
• Made in China
• Backed by 1-year warranty

Specifications

• Brand: Lippert (LCI)
• SKU: 285318
• Manufacturer Reference: 1817941
• UPC: 848150002044
• Type: Power Tongue Jack (A-Frame)
• Style: Tongue (A-Frame)
• Application: A-Frame RVs, travel trailers, utility/cargo trailers
• Lift Capacity: 3,500 lbs
• Amp Draw: 30 A
• Stroke: 18"
• Retracted Height: 10.75"
• Extended Height: 28.75"
• Footpad Diameter: 5.4" (5-3/8")
• Features: LED lights, manual override (hand crank included)
• Casing: Textured (damage-resistant)
• Mounting: Bolt-on
• Color: Black
• Shipping Dimensions: 36" × 13" × 8"
• Shipping Weight: 28 lbs
• Included: Jack body, 5-3/8" foot pad, hand crank, 2-1/2" clevis pin, hairpin cotter pin, 3× #6-24 × 1" mounting bolts
• Supersedes: 1167441, 116744, 181794, 671418, 1817941
• Country of Origin: China
• Shipping: Direct-ship from Lippert (standard lead time applies)
• Warranty: 1-year
