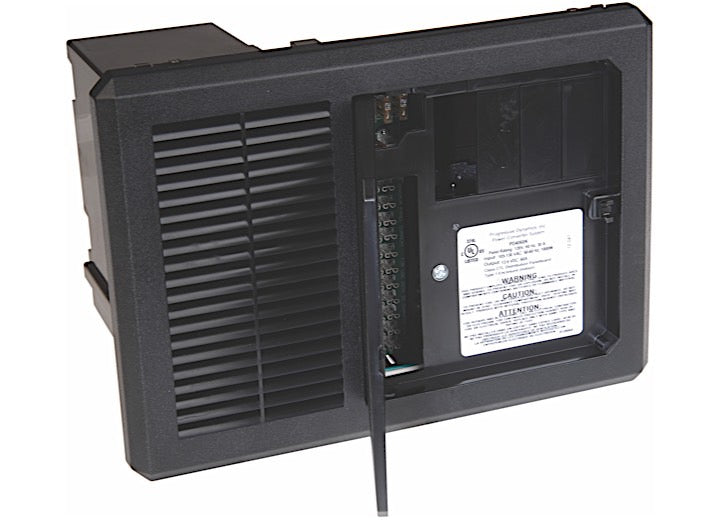

Progressive Dynamics 4000 Series PD4060KV RV Converter w/ Charge Wizard and AC/DC Distribution Panel - 60 Amp

Simplify your RV's power systems with the Progressive Dynamics PD4060KV 4000 Series RV Converter with Charge Wizard and AC/DC Distribution Panel. This 2-in-1 unit combines a 60-amp smart converter/charger with a complete AC/DC distribution panel — consolidating two components into one compact unit that delivers serious charging power without the bulk of a full-size distribution panel.

2-in-1 Design Saves Space and Install Time

What sets the PD4060KV apart from a basic converter is the integrated distribution panel — combining two components into a single unit:

• AC/DC distribution panel — provides power to AC and DC applications throughout your RV
• 60A smart converter/charger — uses shore power to quickly charge batteries while providing continuous power to your 12V loads

Fewer separate components, less wiring complexity, less wall space — the right choice for mid-size RVs and trailers that need more than 45A but don't need a full-size panel.

Lithium AND Lead-Acid Compatible

The PD4060KV is engineered to handle modern multi-chemistry battery setups:

• Lithium-ion (LiFePO4) — uses a custom high-voltage charging profile for full, quick charge
• Flooded Lead Acid — multistage charging
• AGM — multistage charging
• Gel — multistage charging

That means whether you're running lead-acid today or upgrading to lithium tomorrow, this converter handles both — no need to replace your converter when you upgrade your batteries.

Intelligent Charge Wizard Multistage Charging

For lead-acid batteries (FLA, AGM, gel), Progressive Dynamics' patented Charge Wizard technology automatically monitors battery voltage and begins charging when needed — running multistage charging that delivers faster recharge while extending battery life compared to older single-stage chargers. For lithium batteries, the unit uses a separate high-voltage output profile designed specifically for LiFePO4 chemistry.

Comprehensive Distribution

The integrated distribution panel includes:

• AC distribution: Up to 6 branch circuits rated at 30 amps (using tandem breakers)
• DC distribution: (2) 30-amp fuses and (10) 20-amp fuses

Please note: AC breakers and DC fuses are sold separately.

Drop-In Replacement for Many Brands

The PD4060KV is a direct cross-reference replacement for several common 55-amp class converter/charger units, making it a straightforward upgrade option if your existing unit has failed:

• WFCO: WF-8955PEC
• Parallax: 7355, 8355, 7155
• Powermax: PPC-55

Built-in Safety Features

Multiple layers of protection safeguard the converter and your RV's electrical system, with heat-resistant polymer construction built for long-term durability in RV environments.

UL Listed & Made in USA

The PD4060KV is UL listed and proudly made in the USA — backed by a 2-year limited manufacturer warranty.

Considering Other Progressive Dynamics All-In-One Units?

We carry the full Progressive Dynamics all-in-one converter/panel range:

• Progressive Dynamics PD4045KV (45A, 4000 Mini) — same compact form factor with 45A output, for smaller RVs and trailers
• Progressive Dynamics PD4560AV (60A, 4500 Series) — same 60A converter capacity as this unit, but in a full-size 4500 Series panel (12 AC + 18 DC fuses) for larger installations
• Progressive Dynamics PD4590AV (90A, 4500 Series) — larger full-size panel with 90A output for fifth wheels and toy haulers

Key Features

• 2-in-1 design — AC/DC distribution panel + 60A converter/charger
• Compact size — same form factor as the 45A version, more power
• Multi-chemistry compatible — Lithium (LiFePO4), Flooded Lead Acid, AGM, Gel
• Custom high-voltage charging profile for lithium batteries
• Charge Wizard multistage charging for lead-acid batteries
• AC distribution: Up to 6 branch circuits (30A using tandem breakers)
• DC distribution: 2×30A + 10×20A fuse holders
• Direct replacement for WFCO WF-8955PEC, Parallax 7355/8355/7155, Powermax PPC-55
• Hardwired installation
• Heat-resistant polymer construction
• Built-in safety features
• UL listed
• Made in USA
• AC breakers and DC fuses sold separately
• Backed by a 2-year limited manufacturer warranty

Specifications

• Brand: Progressive Dynamics
• Series: 4000 Series
• Model: PD4060KV
• Type: 2-in-1 RV Converter/Charger with AC/DC Distribution Panel
• Application: 12V battery systems
• Rated Power Output: 810W
• Converter Output: 60 amps
• AC Distribution: Up to 6 branch circuits at 30A (tandem breakers)
• AC Distribution Rating: 120 VAC
• DC Distribution Fuses: (2) 30A, (10) 20A
• Converter Input: 105–130 VAC
• Converter Output (No Load): 13.6 VDC
• Converter Output (Full Load): >12.6 VDC
• Battery Chemistry Support: Lithium (LiFePO4), Flooded Lead Acid, AGM, Gel
• Cross-Reference Replacement For: WFCO WF-8955PEC; Parallax 7355, 8355, 7155; Powermax PPC-55
• Installation: Hardwired
• Construction: Heat-resistant polymer
• Operating Temperature: 32°F to 122°F
• Storage Temperature: -4°F to 176°F
• Overall Dimensions: 12-1/4" L x 8-3/4" H x 7-1/4" D
• Rear Cutout: 10-3/4" L x 7-1/4" H
• Weight: 6.7 lbs
• Not Included: AC breakers, DC fuses
• Regulatory: UL listed
• Country of Origin: USA
• Warranty: 2-year limited manufacturer warranty
