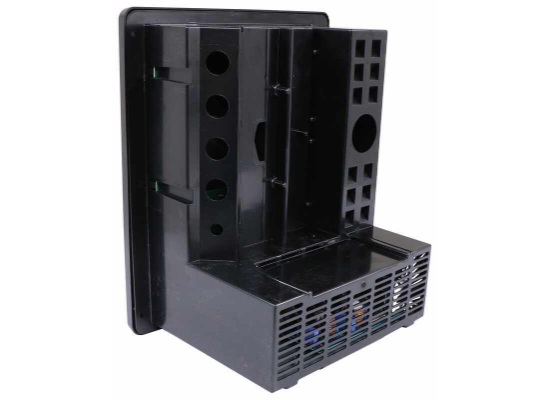

Progressive Dynamics 4500 Series RV Converter w/ Charge Wizard and AC/DC Distribution Panel - 60 Amp PD4560AV

Simplify your RV's power systems with the Progressive Dynamics PD4560AV 4500 Series RV Converter with Charge Wizard and AC/DC Distribution Panel. This 2-in-1 unit combines a 60-amp smart converter/charger with a full-size 4500 Series AC/DC distribution panel — delivering serious distribution capacity with mid-range charging power for RVs that need the larger panel without the full 90A converter output.

2-in-1 Design — Full-Size Panel + Smart Converter

The PD4560AV combines two components into a single unit:

• AC/DC distribution panel — supplies AC and DC distribution to your RV's electrical system
• 60A smart converter/charger — converts AC shore power into DC power to charge your battery bank and run 12V loads

Fewer separate components, less wiring complexity, faster installation. The result is a complete power control center that lives in a single accessible box.

AC Distribution — 240 VAC / Up to 12 Branch Circuits

The AC section is rated for 240V at 50 amps with space for up to 6 breakers — and supports up to 12 branch circuits when using tandem breakers. That's the same large-format AC capacity as the 90A PD4590AV, just paired with a smaller converter.

DC Distribution — 18 Fuse Holders with Lever Lock Connectors

The DC section includes 18 branch fuse holders:

• (4) 30-amp fuse holders
• (14) 20-amp fuse holders

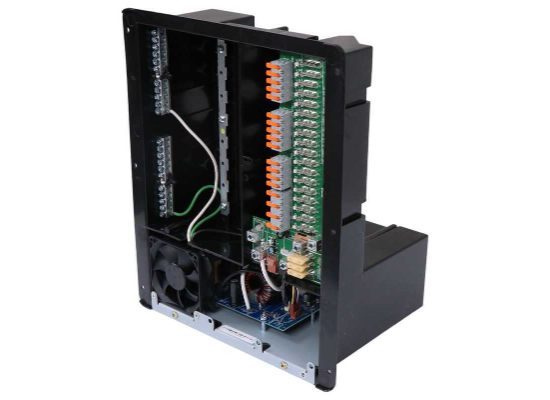

One of the standout features: lever lock connectors make wiring dramatically faster and more secure. Simply open the lever, insert the wire, and close — no fiddly screw terminals, no wire pull-out worries. Real time-saver during installation.

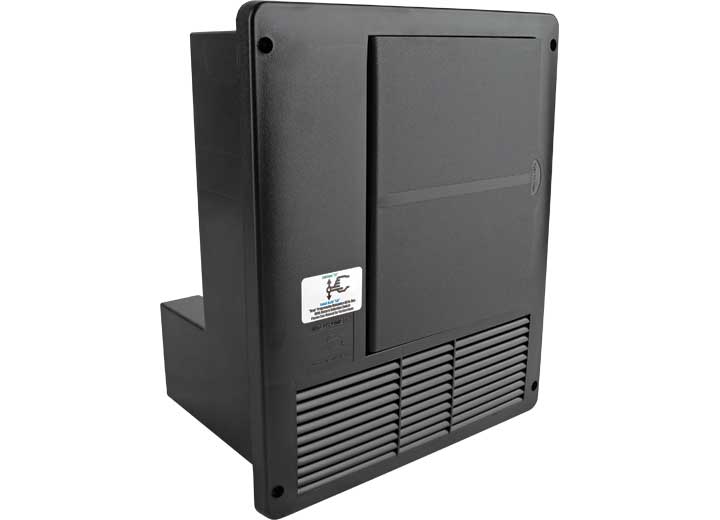

Please note: AC breakers and DC fuses are sold separately. Once installed, the breakers and fuses are accessible by opening the door on the front of the box, which includes a blank label for listing your connections.

Lithium AND Lead-Acid Compatible

The PD4560AV includes an output mode switch that lets you choose between lithium and lead-acid charging profiles — so whatever batteries are in your RV today (or whatever you upgrade to tomorrow), the converter delivers the most efficient charging profile.

Lithium Mode — Designed for LiFePO4

In lithium mode, the unit uses a higher output voltage for fast, complete charging. The profile extends battery life by using the appropriate charging curve, and it's compatible with your battery's internal Battery Management System (BMS) — helping manage the charge cycle by monitoring battery state and balancing cell voltage.

Lead-Acid Mode — Charge Wizard 4-Stage Charging

In lead-acid mode, Progressive Dynamics' Charge Wizard automatically switches voltages as your battery bank charges. This accelerates charging while extending battery life. Compatible with flooded lead-acid, AGM, and gel batteries. The four charging stages:

• Boost — full rated load for quicker recharge time. This is where most of the charging happens, taking the battery to 90% capacity.
• Normal — controlled voltage as the battery reaches capacity to safely complete the charge.
• Storage — kicks in after 30 hours of unused full-charge state; maintains lower voltage to compensate for self-discharge, reducing battery stress, gassing, and water loss.
• Equalization — prevents acid stratification and sulfate buildup during extended storage. Especially helpful for batteries that go unused for long periods.

⚠️ Important Installation Note

If your RV already has a stock converter charger, it will need to be removed to ensure the PD4560AV operates properly. Don't try to run both — the result is unreliable charging behavior.

Comprehensive Safety Features

Multiple layers of protection safeguard both the converter and your batteries:

• Reverse polarity protection — protects the converter if batteries are hooked up incorrectly
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Variable-speed cooling fan — proportional to internal temperature; quiet at low loads, ramps up only when needed

UL Listed & Made in USA

The PD4560AV is UL listed and proudly made in the USA — backed by a 2-year limited manufacturer warranty.

Considering Other Progressive Dynamics All-In-One Units?

We carry the full Progressive Dynamics all-in-one converter/panel range:

• Progressive Dynamics PD4045KV (45A, 4000 Mini) — compact panel (6 AC + 12 DC), 45-amp output for smaller RVs and trailers
• Progressive Dynamics PD4060KV (60A, 4000 Series) — same 60A converter capacity as this unit, but in a compact 4000 Series panel (6 AC + 12 DC) for installations where space is tight
• Progressive Dynamics PD4590AV (90A, 4500 Series) — same full-size 4500 Series panel (12 AC + 18 DC) as this unit, with higher 90-amp converter output for larger fifth wheels and toy haulers

Just Need the Converter Section?

If your PD4560-series Power Control Center has a failed converter section but the rest of the panel is fine, the Progressive Dynamics PD4560CSV Replacement Converter Section is the drop-in repair part — same 60A Charge Wizard converter with Lithium/Lead-Acid switch, designed to slide into your existing panel without rewiring the entire distribution box.

Key Features

• 2-in-1 design — full-size 4500 Series AC/DC distribution panel + 60A converter/charger
• AC distribution: Up to 12 branch circuits, rated for 240V at 50A (with tandem breakers)
• DC distribution: 4×30A + 14×20A fuse holders (18 total)
• Lever lock DC connectors — faster, more secure wiring
• Lithium AND lead-acid compatible — output mode switch
• Custom high-voltage profile for lithium (BMS-compatible)
• Charge Wizard 4-stage charging for lead-acid (Boost/Normal/Storage/Equalization)
• Comprehensive protections — reverse polarity, over/undervoltage, overcurrent
• Variable-speed cooling fan
• Hardwired installation
• Heat-resistant polymer construction
• UL listed
• Made in USA
• AC breakers and DC fuses sold separately
• Backed by a 2-year limited manufacturer warranty

Specifications

• Brand: Progressive Dynamics
• Series: 4500 Series
• Model: PD4560AV
• Type: 2-in-1 RV Converter/Charger with AC/DC Distribution Panel
• Application: 12V battery systems
• Rated Power Output: 810W
• Converter Output: 60 amps
• AC Distribution: Up to 12 branch circuits at 50A (with tandem breakers)
• AC Distribution Rating: 240 VAC
• DC Distribution Fuses: (4) 30A, (14) 20A — 18 total branch fuse holders
• DC Connectors: Lever lock
• Converter Input: 105–130 VAC
• Converter Output (No Load): 13.6 VDC
• Converter Output (Full Load): >12.6 VDC
• Battery Chemistry Support: Lithium (LiFePO4 / BMS-compatible) or Flooded Lead Acid / AGM / Gel
• Lead-Acid Charging Stages: 4 (Boost / Normal / Storage / Equalization)
• Installation: Hardwired
• Construction: Heat-resistant polymer
• Protections: Reverse polarity, overvoltage, undervoltage, overcurrent
• Cooling: Variable-speed fan (proportional to internal temperature)
• Operating Temperature: 32°F to 122°F
• Storage Temperature: -4°F to 176°F
• Overall Dimensions: 14-1/8" H x 11-3/16" L x 8-1/2" D
• Rear Cutout: 13-1/4" H x 10-1/8" L
• Weight: 8 lbs
• Not Included: AC breakers, DC fuses
• Regulatory: UL listed
• Country of Origin: USA
• Warranty: 2-year limited manufacturer warranty
