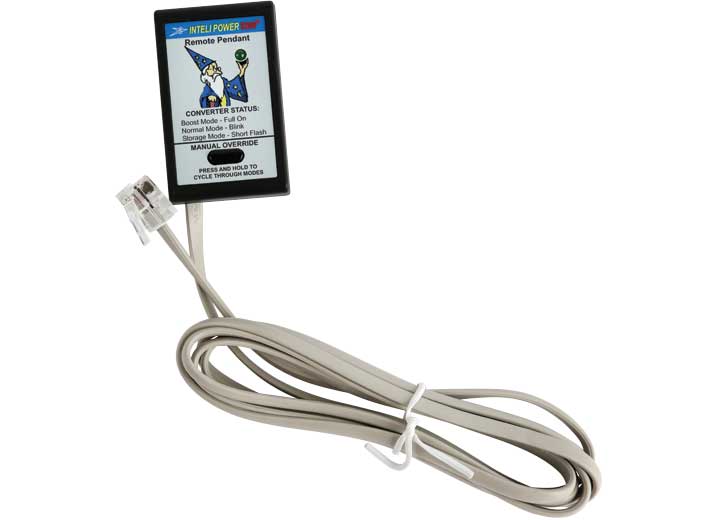

Progressive Dynamics Converter Status Remote Pendant PD92201

Add remote monitoring and manual control to your Progressive Dynamics converter with the Progressive Dynamics PD92201 Charge Wizard Status Remote Pendant. This pocket-sized pendant connects to your converter's accessory port and lets you select the charging mode of the built-in Charge Wizard from a convenient location — instead of crawling into your battery bay or electrical compartment every time you want to change modes.

Why a Remote Pendant Matters

Progressive Dynamics converters are typically installed in remote compartments — under dinettes, inside electrical bays, behind access panels. That makes the built-in controls difficult to reach when you want to adjust charging behavior for a specific scenario (forcing a deeper charge cycle, switching to storage mode for winter, etc.). The PD92201 puts those controls in a 2" pendant you can mount wherever's convenient — typically near your battery monitor or main electrical panel.

Manual Charging Mode Selection

The pendant's manual switch lets you select the Charge Wizard's operating mode — and importantly, the system returns to automatic mode when needed to prevent battery damage. That's a meaningful safety feature: you get manual override capability without losing the protective intelligence of the automatic charging system if you forget to switch back.

Status Indicator Light

A status indicator light displays the current operating mode at a glance — no need to wonder what stage your charging is in.

Simple Installation

Installation couldn't be simpler:

• Connects to your converter's accessory port — no cutting or splicing wires
• Peel-and-stick adhesive mounting — secure attachment without drilling
• 30" cable for flexible placement

Compatibility

The PD92201 is designed for the Inteli-Power PD9200 and PD9300 series converter chargers. It may also be compatible with other Progressive Dynamics units that include the same accessory port — but confirm with Progressive Dynamics or check your specific converter's documentation before assuming compatibility outside the PD9200/PD9300 series.

Key Features

• Remote status pendant for Progressive Dynamics converters
• Manual Charge Wizard mode selection
• Automatic mode return to prevent battery damage
• Status indicator light
• Plug-and-play installation — connects to converter accessory port
• Peel-and-stick mounting — no drilling required
• 30" cable for flexible placement
• Compatible with Inteli-Power PD9200 and PD9300 series converters

Specifications

• Brand: Progressive Dynamics
• Part Number: PD92201
• Type: Charge Wizard Status Remote Pendant
• Application: Inteli-Power PD9200 and PD9300 series converter chargers
• Connection: Converter accessory port (plug-and-play)
• Mounting: Peel-and-stick adhesive
• Cable Length: 30"
• Dimensions: 2" L x 1-1/4" W x 1/2" D
