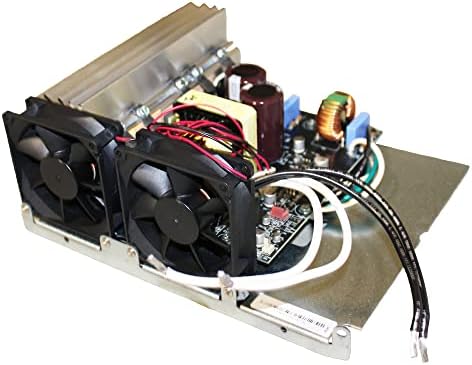

Progressive Dynamics REL 90A 4500 Series Inteli-Power Converter Section PD4590CSV

Restore your Progressive Dynamics RV Power Control Center to full operation with the Progressive Dynamics PD4590CSV 90-Amp Replacement Converter Section. This drop-in repair part replaces the converter charger section in any PD4590-series 4500 Power Control Center — restoring full 90-amp Inteli-Power operation with built-in Charge Wizard, lithium/lead-acid compatibility, and the full protection suite, without replacing the entire distribution panel.

Drop-In Replacement — Saves Time and Cost vs. Full Panel Replacement

If your Progressive Dynamics 4500 Series Power Control Center has a failed converter section but the distribution panel itself is fine, this is the right repair part. Rather than tearing out the entire all-in-one panel and rewiring from scratch, the PD4590CSV slides into place — restoring full 90-amp converter operation with significantly less labor and cost than a complete panel replacement.

The PD4590CSV is a direct drop-in replacement for any PD4590-series converter section, including:

• PD4590, PD4590K18LR, PD4590K18LS2, PD4590K18LS8
• PD4590K18LS8V, PD4590K18LS9, PD4590K18NS2B
• PD4590LICSV, PD4590LIK18LS8, PD4590TB, PD4590V

Lithium AND Lead-Acid Compatible

One of the standout features of the current-generation PD4590CSV: the Lithium/Lead-Acid switch. The converter automatically tailors charging behavior to your battery chemistry — so if you replaced your lead-acid batteries with lithium since the original install, this replacement section is ready without needing a separate purchase.

Intelligent Charge Wizard 4-Stage Charging

The built-in Charge Wizard technology automatically manages battery charging through four distinct stages:

• Boost (14.4V) — high-output charging for depleted batteries
• Normal (13.6V) — sustained charging as charge approaches full
• Storage (13.2V) — maintenance charging that prevents overcharging during long stays
• Equalization (14.4V) — periodic equalization to maximize capacity and life

Built-In Protections

The PD4590CSV includes the same comprehensive protection suite as the full power control center:

• Reverse battery protection
• Electronic current limiting
• High and low AC input protection
• Automatic thermal protection
• Intelligent variable-speed cooling fan

Need a Complete All-In-One Panel?

If you're building a new RV electrical system from scratch rather than repairing an existing one, the Progressive Dynamics PD4590AV All-In-One AC/DC Distribution Panel Converter is the complete unit that combines a 90A converter with a full-size 4500 Series distribution panel.

Key Features

• 90-amp output Inteli-Power 4500 Series replacement converter section
• Direct replacement for all PD4590XXX series converter sections
• Lithium/Lead-Acid switch — chemistry-selectable charging
• Built-in Charge Wizard 4-stage charging (Boost / Normal / Storage / Equalization)
• Variable-speed intelligent cooling fan
• Reverse battery protection
• Electronic current limiting
• High and low AC input protection
• Automatic thermal protection
• Backed by a 2-year limited manufacturer warranty

Specifications

• Brand: Progressive Dynamics
• Series: Inteli-Power 4500 Series
• Part Number: PD4590CSV
• Type: Replacement Converter Section (90A)
• Input Voltage: 105–130 VAC, 50/60 Hz
• Input Power: 1,550W
• Output: 13.6–14.6 VDC, 90 amps
• Charging Stages: 4 (Boost / Normal / Storage / Equalization)
• Battery Chemistry Support: Lithium or Lead-Acid (switchable)
• Compatibility: Drops into any PD4590-series Power Control Center (PD4590, PD4590K18LR, PD4590K18LS2/LS8/LS8V/LS9, PD4590K18NS2B, PD4590LICSV, PD4590LIK18LS8, PD4590TB, PD4590V)
• Protections: Reverse battery, electronic current limiting, high/low AC input, automatic thermal
• Cooling: Intelligent variable-speed fan
• Dimensions: 9-3/4" L x 7-3/4" D x 3-15/16" H
• Weight: 6.1 lbs
• Warranty: 2-year limited manufacturer warranty
