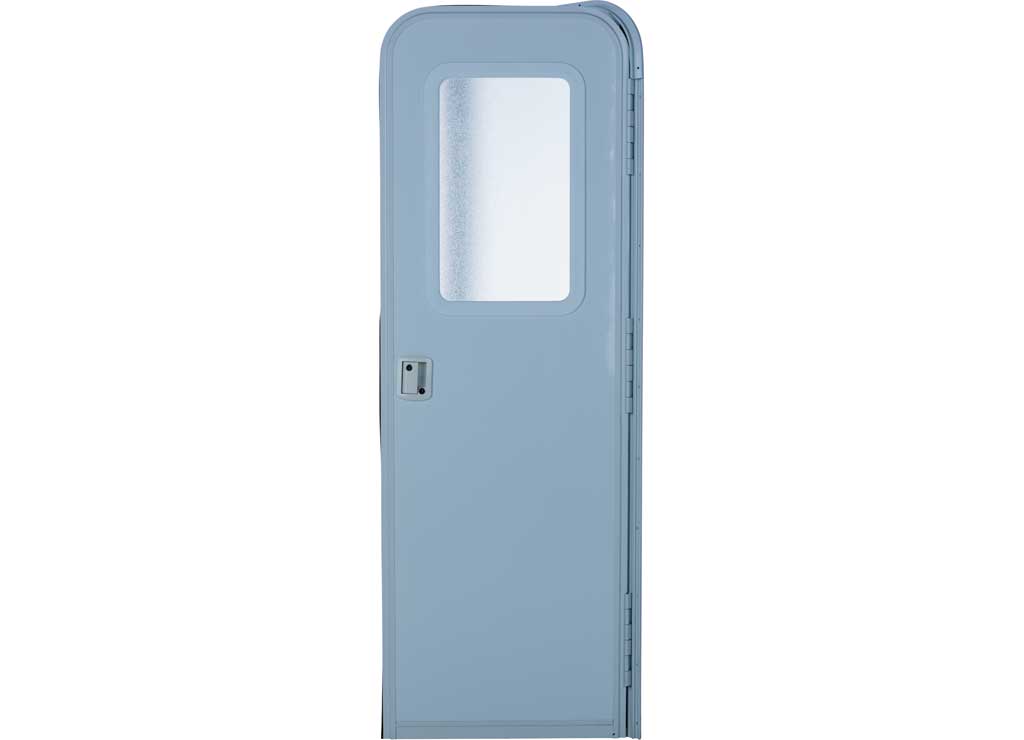

Right Hinge RV Radius Entry Door with Screen Door with Drip Cap & Threshold - 28" x 72" (Polar White, White Window Frame) V000040165

Upgrade or replace your RV's entry door with the Lippert 28" x 72" Right-Hinge Radius Entry Door (Part #V000040165) in polar white. This complete entry door (for a 28" x 72" rough opening) includes everything you need for a clean install — a UV-stable obscure-glass window, a built-in screen door with oversized push-down latch, integrated felt water seal, drip cap, and threshold — all backed by Lippert's reputation for durable RV entry hardware.

Complete Entry Door Kit

One of the things that sets this door apart is what comes in the box. Rather than the door panel alone (which leaves you sourcing components separately), the V000040165 arrives as a complete kit:

• RV entry door with white handle and hardware
• Screen door with oversized push-down latch
• White window frame with obscure, UV-stable glass
• Hinges (9-1/2", stainless steel)
• Integrated felt seal
• Drip cap
• Threshold

Open the box, install once — no hunting for missing accessories mid-project.

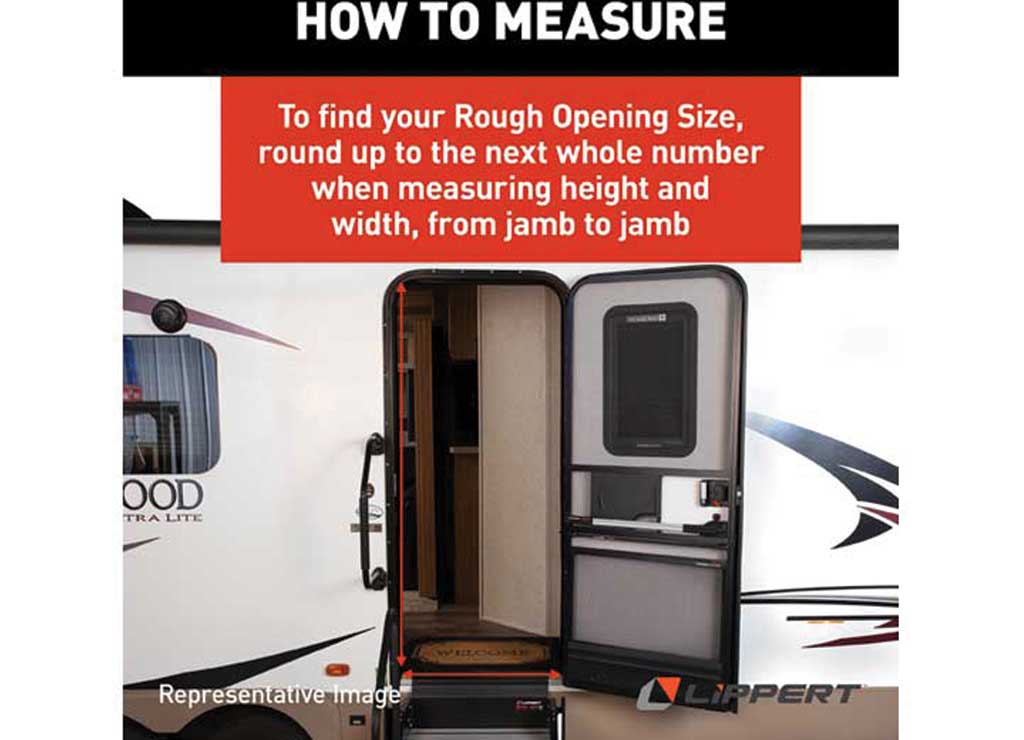

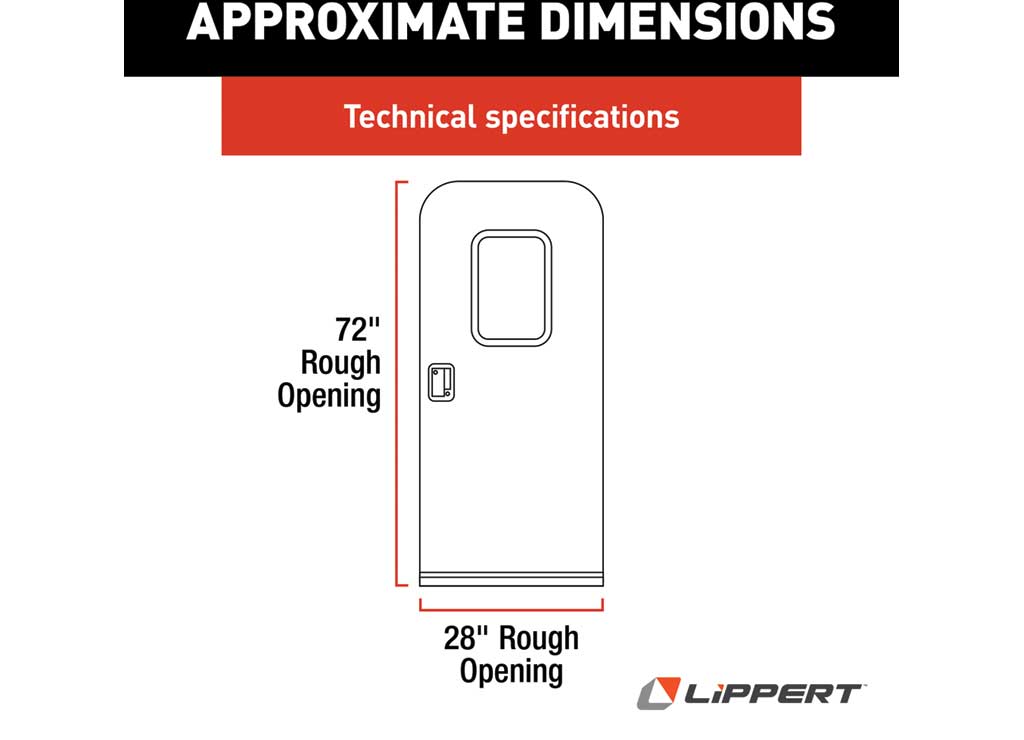

⚠️ Important: 28" x 72" Is the Rough Opening Size

The 28" x 72" dimensions refer to the rough opening the door fits — not the door panel itself. Before ordering, measure your existing rough opening carefully and confirm it matches these dimensions. Ordering a door for the wrong rough opening is the most common reason RV entry door replacements go badly, so take a few extra minutes here.

Radius Corner Style

This is the radius-corner version of the door (rounded top corners, as opposed to the square-corner style). Confirm your existing doorway has rounded corners before ordering — if your existing opening is squared, you'll want the square-corner version instead.

Right-Hinge Configuration

This is the right-hinge version — the hinges are on the right side as you look at the door from outside, so it opens to your left when you face it. Confirm hinge orientation against your existing doorway before ordering.

Durable Aluminum Construction

The door is built around a 1/8" aluminum extrusion outer frame with a 1" thick screen door and 9-1/2" stainless steel hinges — built to withstand years of opening, closing, and the road vibration that wears out lesser doors. The built-in camber resists warping under load, vibration, and the harsh outdoor conditions of life on the road.

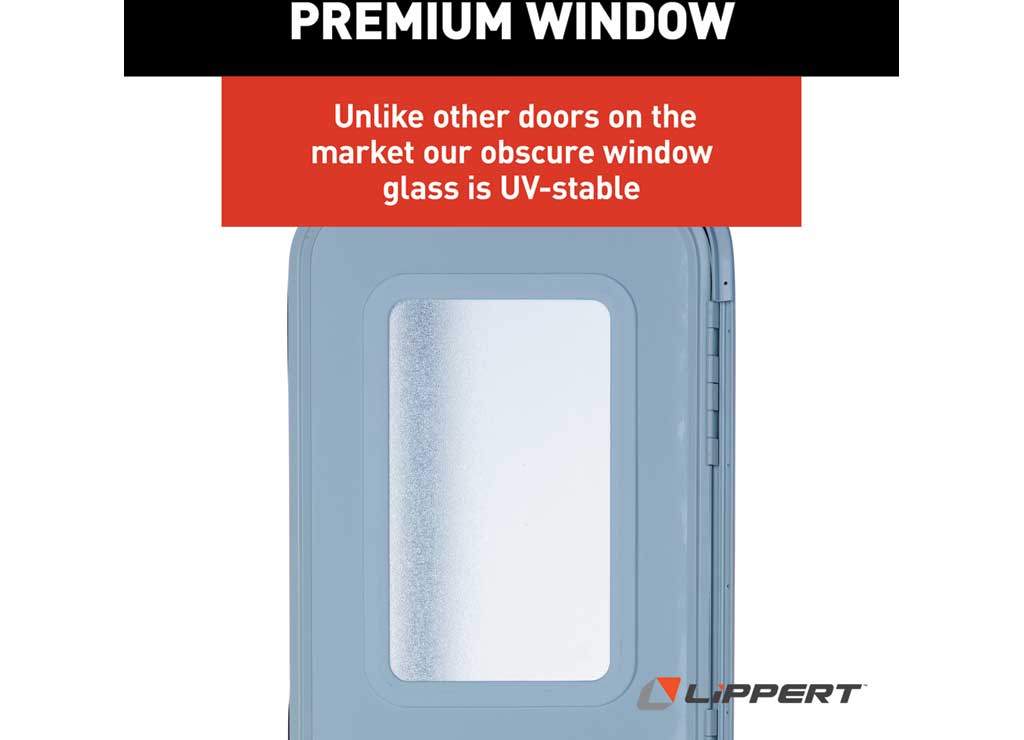

UV-Stable Obscure Window Glass

Unlike many RV door windows that yellow and degrade in sunlight, the V000040165 uses UV-stable obscure glass — offering natural light while maintaining interior privacy. The white window frame matches the polar white door for a clean, integrated look.

Built-In Screen Door with Smart Latch Design

The included screen door features an oversized push-down latch with a particularly useful design feature: it lets you open the screen door even when the main door panel is closed. That's surprisingly handy in everyday use — venting fresh air through the screen without unlocking the main door, or pulling the screen open for a quick peek outside.

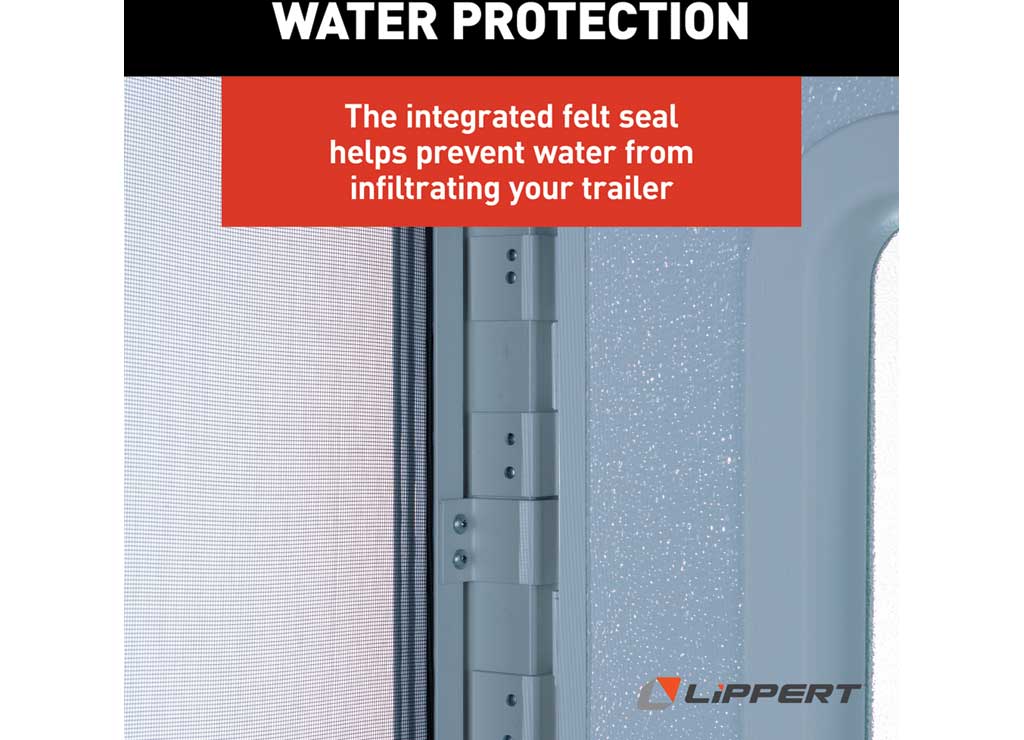

Water Protection Built In

The integrated felt seal helps prevent water infiltration around the door frame, and the included drip cap sheds water away from the doorway. The built-in camber keeps the door sitting properly under load. Together they provide the kind of multi-layer water protection that keeps your RV's interior — and the wall structure around the doorway — dry over the long haul.

Important Shipping Notes

• FREE freight shipping to most of the 48 states (allow 1–2 weeks for delivery)
• Freight items cannot be returned — confirm rough opening dimensions, hinge orientation, and corner style before ordering

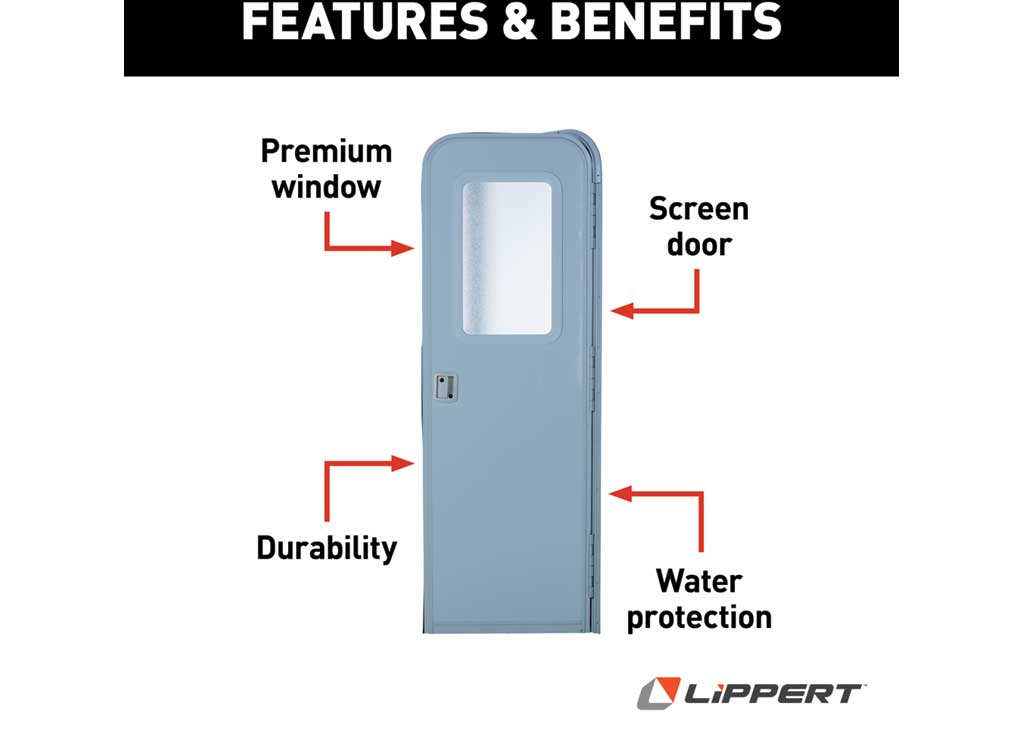

Key Features

• Complete kit — door, screen door, window, hinges, drip cap, threshold all included
• 28" W x 72" H rough opening
• Radius corner style (rounded top corners)
• Right-hinge orientation
• 1/8" aluminum extrusion frame
• 9-1/2" stainless steel hinges
• 1" thick screen door with oversized push-down latch
• UV-stable obscure window glass with white frame
• Integrated felt seal for water protection
• Drip cap and threshold included
• Built-in camber resists warping and vibration
• Polar white finish
• Backed by a 1-year limited manufacturer warranty

Specifications

• Brand: Lippert
• Part Number: V000040165
• Type: RV Radius Entry Door with Screen Door
• Door Style: Radius (rounded top corners)
• Door Hand: Right hinge
• Rough Opening Dimensions: 28" W x 72" H
• Color: Polar white
• Window Frame Color: White
• Window Glass: UV-stable obscure
• Frame Material: Aluminum extrusion (1/8" thickness)
• Hinges: 9-1/2" stainless steel
• Screen Door Thickness: 1"
• Screen Door Latch: Oversized push-down (operates with main door closed)
• Seal: Integrated felt
• Camber: Built-in
• Includes: Door, screen door, window frame with obscure glass, hinges, handle, drip cap, threshold
• Warranty: 1-year limited manufacturer warranty
