Suburban

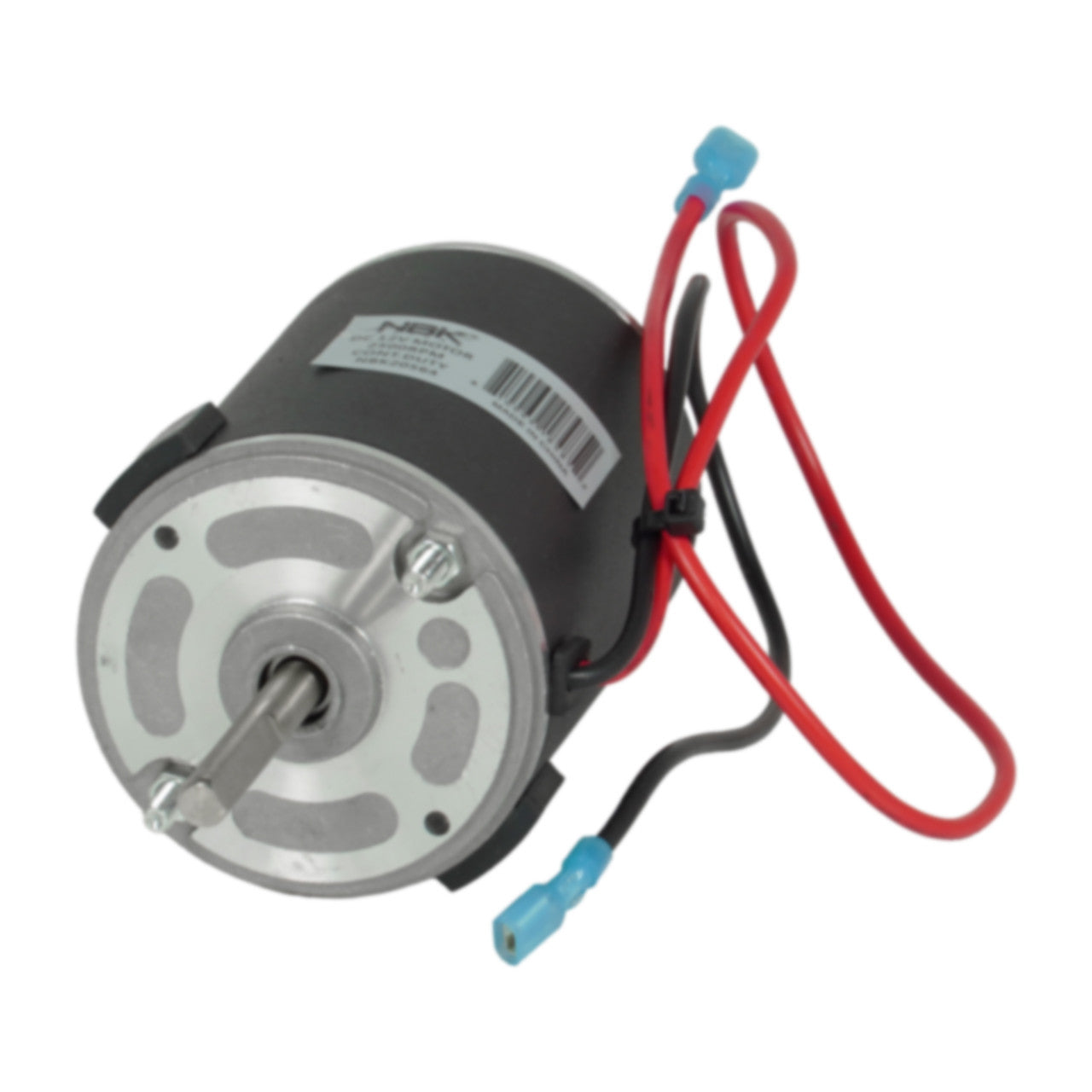

Suburban 232683 NBK 20564 RV 12V Furnace Blower Motor
Suburban 232683 NBK 20564 RV 12V Furnace Blower Motor
Regular price
$182.00 AUD
Regular price
Sale price
$182.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NBK 20564 Suburban 232683 RV 12V Furnace Blower Motor
The furnace motor is attached to the blower wheel and the combustion air wheel. This is a 12V DC power motor, with two shafts. Once the control board sends power to the motor, it will start operating which will rotate the shaft attached to both wheels. The movement of both wheels will circulate the air causing air flow. the motor size and revolutions per minute will corresponds with the furnace BTU/hr size, making it very important to get the correct size motor for your furnace.Additional Info
Power Source: 12V D
Max Speed:2910 RPM
Manufacturer Warranty: 1 Year
Compatible with the following Suburban furnaces:
SF-42 Above S/N 012305119 and SF-42F Above S/N 012305199
PLEASE NOTE: All Suburban Serial Numbers manufactured after January 1990 will be nine digits. The first 2 digits signify the year of manufacture. The next set of digits indicate the week of the year, and the remaining digits are serial numbers. For example: Even though numerically higher, 912000060 is lower than serial number 014103973 due to the year of manufacture.
