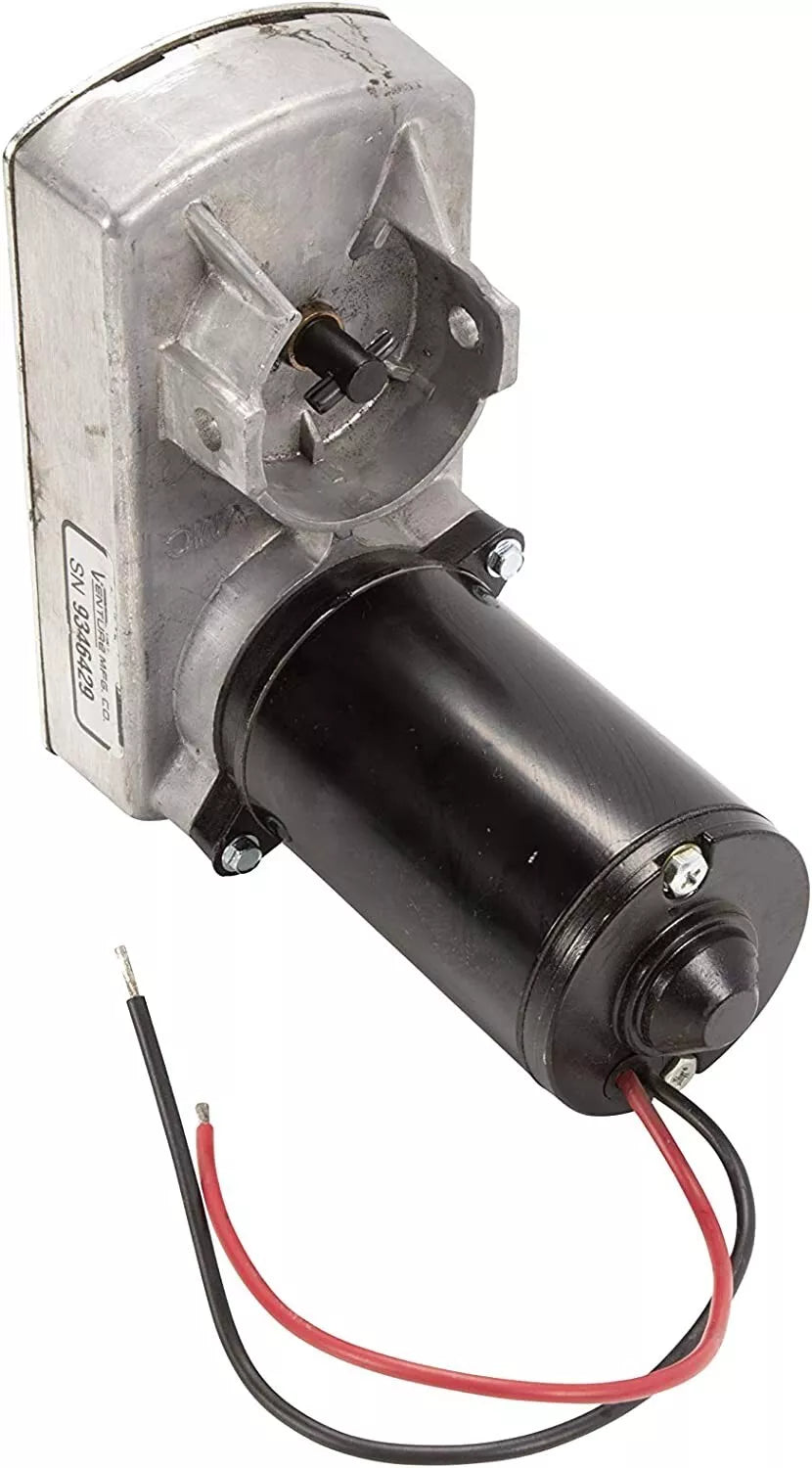

Lippert Venture Slide-Out Motor | 132682 | 12V | 5800 RPM | 18:1

Restore reliable slide-out operation with the Lippert Venture Actuator Slide-Out Motor — 5800 RPM 12V DC (Part #132682 / 117292 / Venture 8532-08J). Brand-new high-performance replacement motor engineered for Lippert 2×2 and 2.5×2.5 electric through-frame slide-outs. 1/2 HP output with 18:1 gear ratio and center drive configuration.

⭐ Brand New from Closed Lippert Plant — 2025 Manufacturing Date

These units are brand new with 2025 manufacturing date — sourced from a closed Lippert plant. Not old-stock — genuinely current-production quality.

What This Motor Powers

Direct replacement motor for Lippert through-frame slide-out systems:

• Lippert 2×2 electric through-frame slide-outs
• Lippert 2.5×2.5 electric through-frame slide-outs
• Compatible with Tuson Actuator systems — seamless integration

Need the Drive Shaft Version Instead?

Also available with the drive shaft attached: Lippert Venture Slide-Out Motor with Drive Shaft (117292 / 133612). Choose the drive shaft variant if your existing shaft is also worn or damaged.

Performance Specifications

• Horsepower: 1/2 HP
• Speed: 5,800 RPM
• Gear Ratio: 18:1 — optimized torque + speed balance
• Voltage: 12V DC
• Amp Draw: 30A
• Drive Type: Center Drive
• Inner Gear: 2-1/4" (durable, long-lasting)
• Wiring Harness Connector: Included

⚠️ Verify Compatibility Before Ordering

This motor is engineered specifically for Lippert 2×2 and 2.5×2.5 through-frame slide-outs. It is NOT interchangeable with:

• In-Wall (Schwintek) slide-out motors
• Full-wall slide motors
• Hydraulic slide-outs
• Cable-driven slide systems

Verify your existing installation is a through-frame system before ordering.

Cross-Reference Part Numbers

• Primary Part Number: 132682
• Alt Part Number: 117292
• Venture / AP Products: 8532-08J
• Lippert LCI: 8910-81A

⚠️ Professional Installation Recommended

Motor replacement involves mechanical work under the RV, 12V DC electrical wiring (30A circuit), and integration with the slide-out actuator system. Installation should be performed by a qualified RV service technician unless you have prior experience with Lippert slide-out motor service.

Genuine Lippert / Venture / AP Products OEM

Key Features

• Genuine Lippert / Venture / AP Products OEM slide-out motor
• Part numbers: 132682 / 117292 / Venture 8532-08J / Lippert 8910-81A
• Brand new with 2025 manufacturing date — from closed Lippert plant
• For Lippert 2×2 and 2.5×2.5 electric through-frame slide-outs
• 1/2 HP motor — reliable performance
• 5,800 RPM
• 18:1 gear ratio — optimized torque + speed
• 12V DC, 30A
• Center drive configuration
• 2-1/4" durable inner gear
• Wiring harness connector included
• Compatible with Tuson Actuator systems
• Drive shaft variant available if the existing shaft is also worn/damaged

Specifications

• Brand: Lippert (Venture / AP Products)
• Primary Part Number: 132682
• Alt Part Numbers: 117292, Venture 8532-08J, Lippert 8910-81A
• Type: Slide-Out Motor (Actuator)
• Compatibility: Lippert 2×2 and 2.5×2.5 electric through-frame slide-outs
• Actuator System Compatibility: Tuson Actuator systems
• Horsepower: 1/2 HP
• Speed: 5,800 RPM
• Gear Ratio: 18:1
• Voltage: 12V DC
• Amp Draw: 30 A
• Drive Type: Center Drive
• Inner Gear: 2-1/4"
• Wiring Harness Connector: Included
• Manufacturing Date: 2025
• Condition: New (from closed Lippert plant)
• Drive Shaft Variant Available: Yes (117292 / 133612)
