EQ Smart-Level 6-Point Fifth Wheel Hydraulic Leveling System | 2 Front + 4 Rear Jacks | Bluetooth

Level your larger fifth wheel trailer with the EQ Smart-Level 6-Point Hydraulic Leveling System — adds two extra rear jacks over the 4-point kit for more stability on longer or heavier fifth wheels. Replaces electric front jacks and rear manual stabilizers, with independently-controlled front jacks for hitch coupling, plus Bluetooth iOS/Android auto-level in under two minutes. Available at The RV Surplus.

Fitment critical: Verify compatibility before ordering. Email getlevel@eqsystems.us or call EQ Systems at 800-846-9659.

⭐ 6-Point Stability for Larger Fifth Wheels

• Two 30" front jacks + four 21" rear jacks for maximum stability
• Ideal for longer or heavier fifth wheel trailers
• Universal fitment — works on just about every fifth wheel model
• Replaces electric front jacks and manual rear stabilizers

⭐ Independent Front Jack Control

• Front jacks operate together or independently of the leveling system
• Lift the trailer off the truck for easy hitching/unhitching
• Two-switch manual control included for front jacks

⭐ Bluetooth Auto-Level with iPhone / Android

• Level from your phone — full auto-level in under 2 minutes
• One-touch push-button operation
• Sequential leveling for precision along the full trailer length
• Accuracy within 1/2 degree of the set null point
• Field-adjustable null — set the exact level position you want

⭐ Heavy-Duty Commercial Pump + Protected Wiring

• 4-function commercial-grade pump with manual override
• All harnesses protected by PVC-coated nylon braid with waterproof connectors
• Auto All Retract stows the rear jacks

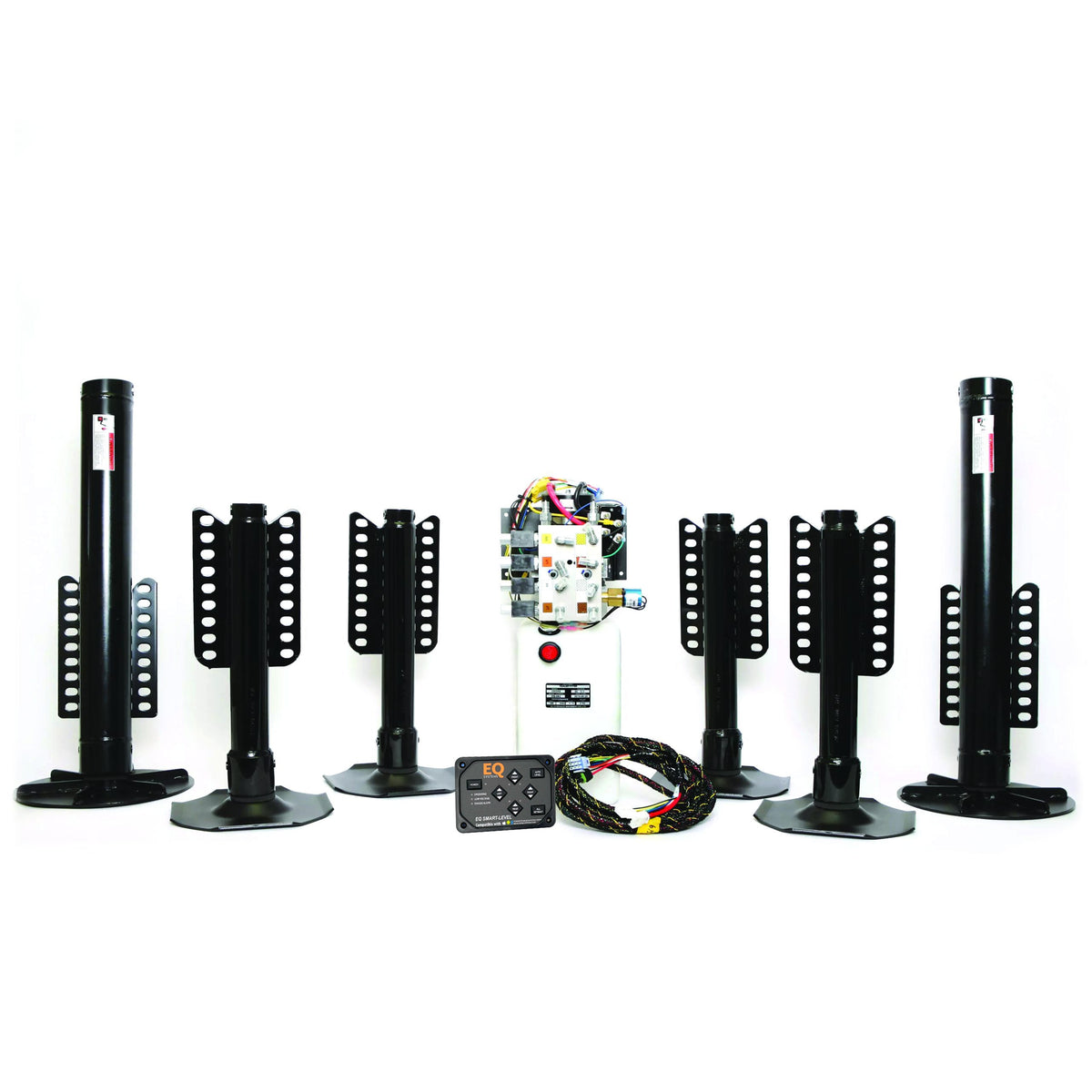

What's In The Kit (8678UPS)

• Two 30" front jacks — 24" stroke with large foot pads
• Four 21" rear jacks — 16" stroke with large foot pads
• 4-function commercial pump with manual override
• EQ Smart-Level controls
• Two-switch manual control for the front jacks
• Main pump and control harness
• Four 10 ft hoses, eight 12 ft hoses, two 28 ft hoses, two 32 ft hoses
• All mounting bolts and brackets

Power Requirements

Minimum Group 24 RV/marine deep-cycle battery rated at least 100 minutes reserve capacity and 500 cold cranking amps — higher is better. Flooded lead-acid, gel, and AGM types all work. Some lithium batteries cannot deliver the running amperage these pumps need, so verify with your battery manufacturer. Panel shows low-voltage warning below 10.5V.

After Installation

Set the null so the system knows the level position you want. Runs on Dexron or multipurpose ATF, filled to 1-1½ inches below reservoir top with jacks retracted. Plan on 10-16 quarts for a full system. Level rises as jacks retract.

Installation

Most RV dealers or service centers can install this system. EQ Systems also offers factory installation at its facility in Cassopolis, Michigan.

Documents

• EQ Smart-Level Fifth Wheel Version Install & Operation Manual (PDF)
• EQ Smart-Level Six-Point System for Fifth Wheels (PDF)
• EQ Smart-Level Quick Start Operation Guide (PDF)
• Required Maintenance Items for EQ Hydraulic Jacks & Slide Systems (PDF)

Other Fifth Wheel Options

• 4-Point Fifth Wheel System — smaller/lighter trailers
• 6-Point Fifth Wheel Heavy Duty — maximum-weight trailers

Recommended Add-Ons

• EQ 6-Pack SnapPad Kit — no-drop, no-tools ground pads (fits all 6 legs)
• SnapPad EQ Stable — universal jack pad
• Stay Charge with Jumper Cables — battery maintainer for storage

1-Year Warranty

Backed by EQ Systems' 1-year manufacturer warranty. Check your operation manual for full terms.

Specifications

• Brand: EQ Systems
• Model: 6-Point Fifth Wheel EQ Smart-Level
• SKU: 8678UPS
• Fitment: Fifth wheel trailers (larger/heavier)
• Configuration: 6-point (2 front + 4 rear jacks)
• Front Jacks: 30" jacks with 24" stroke, large foot pads
• Rear Jacks: 21" jacks with 16" stroke, large foot pads
• Pump: 4-function commercial-grade with manual override
• Control: EQ Smart-Level (Bluetooth iOS/Android + push-button)
• Leveling Speed: Under 2 minutes
• Leveling Accuracy: Within 1/2 degree
• System Voltage: 12V DC
• Battery Requirement: Group 24 min, 100 min RC, 500 CCA
• Fluid: Dexron or multipurpose ATF (10-16 qt full system)
• Hoses Included: 4× 10 ft, 8× 12 ft, 2× 28 ft, 2× 32 ft
• Wiring: PVC-coated nylon braid with waterproof connectors
• Warranty: 1-year manufacturer warranty
