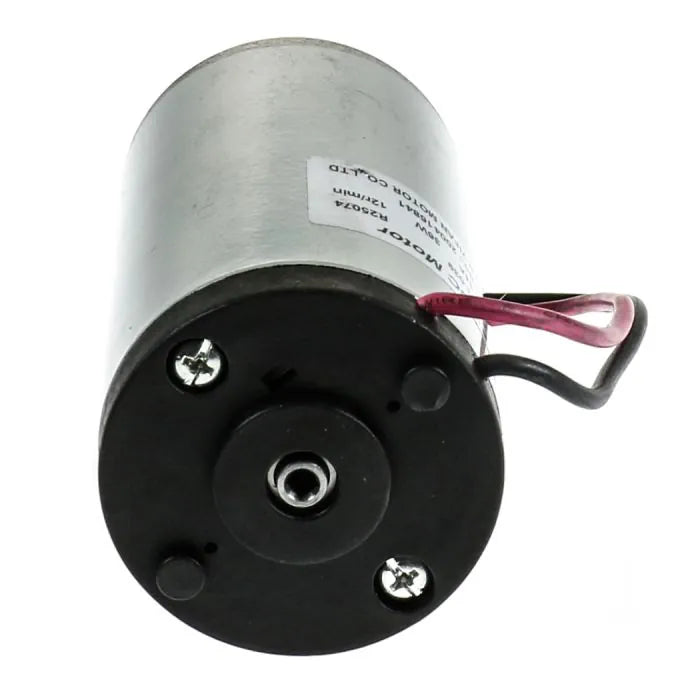

BAL Accu-Slide Compact Motor | 3/16" Drive | R25074 or R25075

Bring a cable-driven room back to life. BAL Accu-Slide Compact Motors are the 12V high-torque motors that turn the drive shaft on Accu-Slide systems. Two versions:

• R25074 — Compact 64ZY, 3/16" drive
• R25075 — Compact 68ZY, 3/16" drive, 15 A / 37 W / 12 rpm

⚠️ Check Your Existing Motor

Match the model on the label of your current motor. Both use the R25076 gearbox (25076-1) and a 3/16" flex drive shaft (854769), sold separately.

Key Features

• High torque, compact
• 12 VDC
• 3/16" drive
• Low noise
• Made in the USA

Specifications

• Brand: BAL
• Type: Accu-Slide Slide-Out Motor
• Options: R25074 (64ZY); R25075 (68ZY, 15A/37W/12 rpm)
• Drive: 3/16" (shaft not included)
• Voltage: 12 VDC
