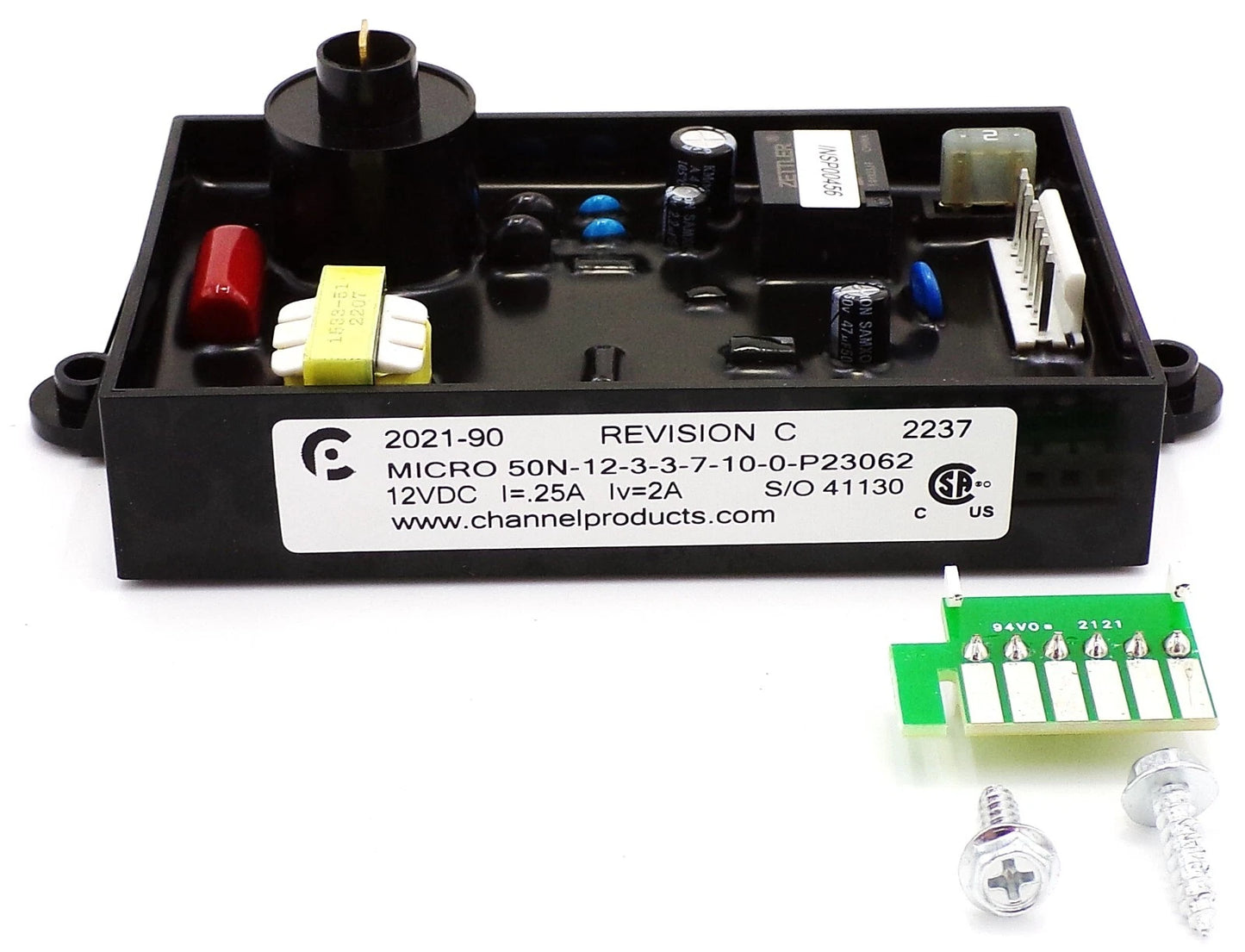

Channel Products Atwood Water Heater Igniter Board | 91367 | Board Only

Restore reliable ignition to your Atwood RV water heater with the Channel Products 91367 Aftermarket Igniter Circuit Board. This is the ignition control board only — for buyers who have verified their electrode is working correctly and need just the circuit board replaced. Manufactured by the same company that produces Dometic's OEM ignition boards, CSA certified, and ready to drop into compatible Atwood water heaters.

Same Manufacturer as Dometic's OEM Boards

One of the most meaningful things about this board: it's made by Channel Products — the same manufacturer that produces Dometic's factory ignition boards. So while it's branded Channel Products rather than Dometic, you're getting the exact same component-level quality and engineering as the OEM Dometic part. The price difference is in the branding, not the quality.

CSA Certified

This board is CSA certified — Canadian Standards Association certification confirms it meets recognized North American safety standards for propane appliance ignition components. Important safety credential for a part that controls gas ignition.

Board Only — Not a Complete Kit

Important: This listing is for the ignition control circuit board only — it does NOT include the electrode. This is the right choice when:

• You've already diagnosed the board as the failure point
• Your spark electrode is in good condition and doesn't need replacement
• You're saving money by replacing only the failed component

If you need both the board AND the electrode (or you're not sure which has failed and want to replace both at once for diagnostic certainty), consider the complete kit instead — either the Dometic 91363 Ignition Control Kit (factory OEM brand) or the Channel Products 91363 Ignition Control Kit (same manufacturer, cost-effective). Both include the board + electrode together.

Prefer the Dometic-Branded Version?

This board is also available as the Dometic 91367 OEM Circuit Control Board — factory Dometic-branded packaging, same physical part, with a 1-year manufacturer warranty. Choose the Dometic-branded version if factory OEM branding matters to you; choose this Channel Products version for the same quality at a cost-effective price point.

Wide Atwood DSI Water Heater Compatibility

This board fits an extensive range of Atwood electric ignition water heaters:

6-Gallon Atwood Water Heaters

• G6A Series: G6A-2E, G6A-6E, G6A-7E, G6A-8E
• GH6 Series: GH6-3E, GH6-6E, GH6-7E, GH6-8E
• GCH6 Series: GCH6-4E, GCH6-6E, GCH6-7E
• GC6A Series: GC6A-7E

10-Gallon Atwood Water Heaters

• G10 Series: G10-1E, G10-2E, G10-3E

Verify your existing water heater model on the manufacturer label before ordering.

Replaces Multiple Atwood Board Part Numbers

This Channel Products board is the direct replacement for several Atwood OEM board part numbers:

• 93257
• 93307
• 91420
• 91504
• 93865
• 91349

How the Ignition Board Works

The ignition control board handles the critical sequence that gets your water heater lit and keeps it running safely:

1. Receives the call for heat from the thermostat
2. Triggers the electrode to generate a high-voltage spark
3. Verifies flame presence via the electrode's flame-sensing function
4. Manages the gas valve based on the ignition sequence and ongoing flame state
5. Locks out the system if ignition fails or flame is lost — a critical safety function

Common Failure Symptoms

Common reasons to replace the ignition board (when the electrode tests fine) include:

• Water heater unresponsive when heat is demanded
• No spark at the electrode despite proper power and good electrode condition
• Repeated ignition lockout after failed attempts
• Water heater lights but shuts off immediately (board fails to verify flame)
• Erratic ignition behavior
• Burnt or damaged components visible on the board

Physical Specs for Installation Verification

• Board Dimensions: 4-5/16" L × 2-1/2" W × 15/16" H
• Mounting Hole Distance: 4-7/8" center hole to hole

Just Need the Board?

This 91363 listing is for the complete kit (board + electrode). If you've diagnosed only the board as failed and your electrode is in good condition, you can save money by ordering just the board — the matching board-only option is the Channel Products 91367 Board (same Channel Products brand) or the Dometic 91367 Circuit Control Board (factory OEM brand, 1-year warranty).

⚠️ Professional Installation Recommended

Water heater ignition component installation should be performed by a qualified RV service technician. Improperly installed gas ignition components can result in unsafe operation, gas leaks, or fire hazards. Always verify proper ignition operation and check for gas leaks after installation.

Key Features

• Channel Products 91367 ignition control board — same manufacturer as Dometic OEM
• Board only — does NOT include electrode
• Wide Atwood DSI water heater compatibility — 6-gallon and 10-gallon models
• CSA certified
• Cross-references: Replaces Atwood 93257, 93307, 91420, 91504, 93865, 91349
• OEM-grade quality at competitive pricing
• Dimensions: 4-5/16" × 2-1/2" × 15/16"
• Mounting hole distance: 4-7/8" center to center

Specifications

• Brand: Channel Products (same manufacturer as Dometic OEM boards)
• Part Number: 91367
• Type: RV Water Heater Igniter Circuit Board
• Configuration: Board only (electrode NOT included)
• Application: Atwood RV water heaters with Direct Spark Ignition (DSI)
• Compatible Models (6-gal): G6A-2E, G6A-6E, G6A-7E, G6A-8E, GH6-3E, GH6-6E, GH6-7E, GH6-8E, GCH6-4E, GCH6-6E, GCH6-7E, GC6A-7E
• Compatible Models (10-gal): G10-1E, G10-2E, G10-3E
• Cross-References: Atwood 93257, 93307, 91420, 91504, 93865, 91349
• Dimensions: 4-5/16" L × 2-1/2" W × 15/16" H
• Mounting Hole Distance: 4-7/8" center to center
• Certifications: CSA
