Coleman-Mach 15 15,000 BTU Heat Pump RV Air Conditioner | 4 Versions

Cool in July, heat in October. The Coleman-Mach 15 with Heat Pump adds reversible heating to the most powerful rooftop in the Mach line, giving you economical electric heat in mild weather without lighting the furnace. All four versions deliver 15,000 BTU of cooling at 320 CFM in a 14" x 14" footprint.

Options

• 38004-0692 — top/down mount, black, R32 (legacy 48004-0692, 48054-8692)

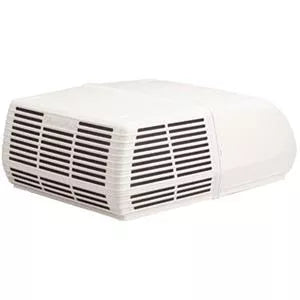

• 38004-0664 — Power Saver Ducted Quiet, white, R32 (legacy 48059-9692)
• 38009-0670 — Quiet PowerSaver, black, R32 (legacy 38009-0690)

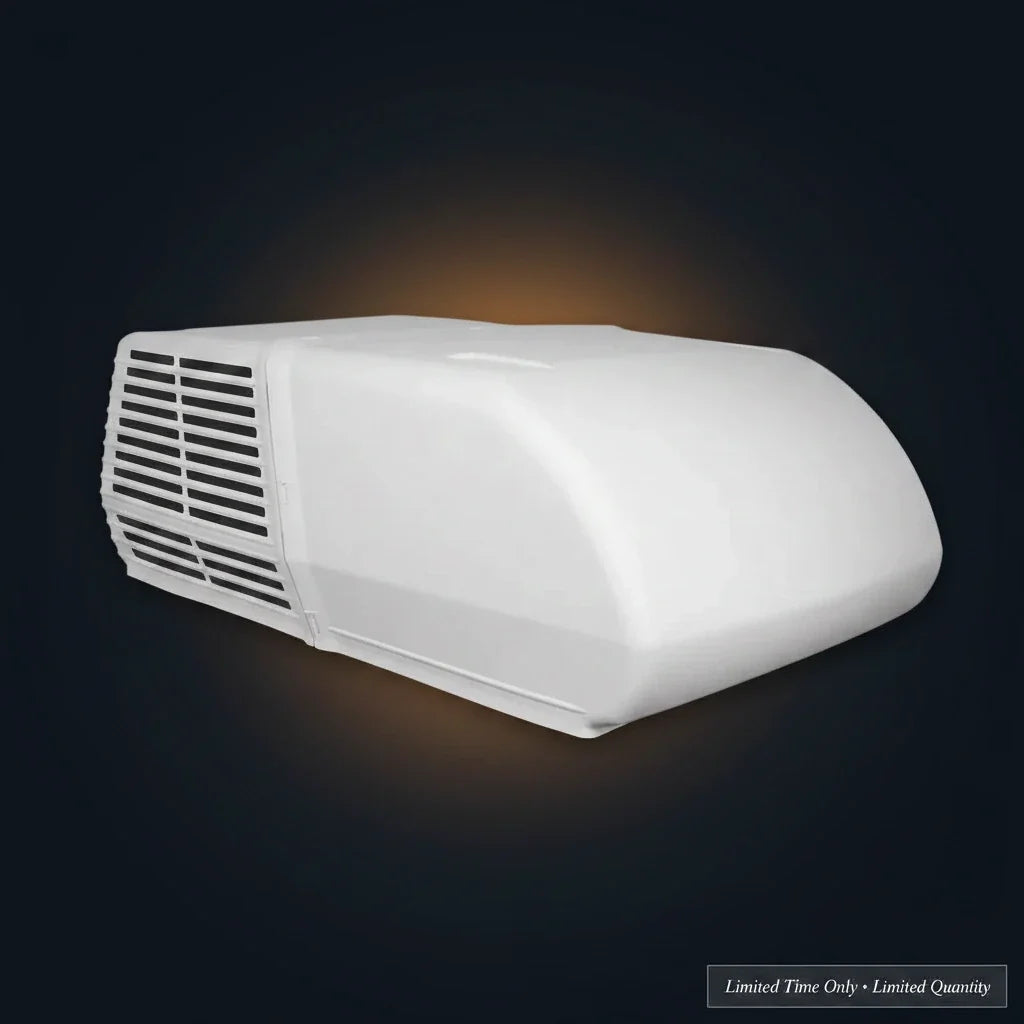

• 48009-0664 — Quiet Series Power Saver, textured white, R410A, ducted systems

⚠️ Before You Order

Rooftop unit only — a ceiling assembly (ducted or non-ducted) and thermostat are required and sold separately; if you're replacing an existing Coleman-Mach, your current ceiling assembly generally carries over. Fits the standard 14" x 14" roof opening. Units ship with the roof gasket pre-installed, so no additional sealant is needed. Confirm your RV's electrical service can carry the unit — the Power Saver models are the choice for 30-amp sites and generators.

Heat Pump Note

Heat pumps provide efficient heat down to roughly 40°F outdoor temperature; below that, use the furnace.

Key Features

• 15,000 BTU cooling + heat pump
• 320 CFM airflow
• Power Saver versions — 30-amp and generator friendly
• Quiet Series options
• Ducted or non-ducted — except 48009-0664: ducted

Specifications

• Brand: Coleman-Mach
• Model: Mach 15 Heat Pump
• Cooling: 15,000 BTU
• Options: 38004-0692; 38004-0664; 38009-0670; 48009-0664
• Roof Opening: 14" x 14"
• Warranty: 2-year factory
