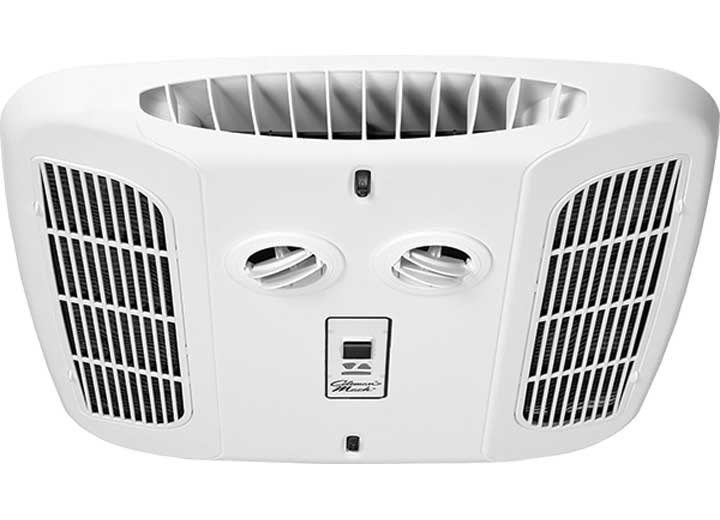

Coleman | Mach Bluetooth RV Ceiling Assembly | 9430-725 | Heat Ready | Non-Ducted

Modernize your RV's climate control with the Coleman Mach 9430-725 Bluetooth Non-Ducted Ceiling Assembly — a smartphone-controlled ceiling assembly for cool-only rooftop units that's also pre-wired to support an electric resistance heat strip whenever you add one. Full cooling control today, heat-ready for tomorrow, all managed from the free RV Climate app on your phone or directly from the on-assembly backlit LCD and knobs.

Cool Now, Heat Ready When You Need It

"Heat Ready" means the 9430-725 contains the wiring, control board, and switching circuitry needed to operate an electric resistance heat strip — the type of supplemental heating that installs into a cool-only rooftop AC unit. The practical advantage: if you have a cool-only rooftop unit today and decide later to add an electric heat strip for shoulder-season comfort, the 9430-725 is already fully prepared. No ceiling assembly replacement needed when you add the heat strip — it connects directly and the control circuitry activates it seamlessly.

The heat strip itself is sold separately and is not included in this kit. Compatible heat strips are available for most Coleman Mach 47xxx and 48xxx series cool-only rooftop units.

Bluetooth Smart Control via RV Climate App

The 9430-725 delivers full wireless cooling and heat strip control via the free RV Climate app — available for both iOS and Android. No Wi-Fi required, no monthly subscriptions, just a Bluetooth connection between your phone and the ceiling assembly.

• iOS 9.0 or later
• Android OS 4.4 or later
• Pair up to 4 smart devices — multiple phones or tablets can control the system
• Multi-zone control — the app supports controlling multiple Bluetooth ceiling assemblies from a single device, ideal for dual-AC RVs

From the app, you can adjust temperature setpoints, switch between cooling and heat strip modes (when installed), and manage fan speeds — all without leaving the couch.

Backlit LCD & Control Knobs for App-Free Operation

When your phone isn't handy, the ceiling assembly itself includes a backlit LCD display and ergonomic control knobs placed on the horizontal surface — practical for high-ceiling RVs where overhead controls are difficult to reach. The control knobs are within easy reach when the app isn't an option.

Omnidirectional Louvers + Flow Dampeners

The 9430-725 distributes conditioned air with unusual flexibility for a non-ducted system:

• Omnidirectional louvers direct conditioned air downward into any area of the RV interior — adjust them for targeted cooling/heating where you need it most
• When louvers are closed, integrated flow dampeners redirect air forward and aft for even room-wide distribution throughout the RV

That dual-mode airflow makes the 9430-725 effective whether you want to focus cooling on one area or distribute it broadly throughout the cabin.

Drop-In Replacement for 8000 & 9000 Series

The 9430-725 is a direct replacement for all existing 8000 and 9000 series non-ducted Coleman Mach ceiling assemblies — fitting the same footprint and connections. The low-profile Euro-style design covers the ceiling imprint left by earlier housing designs, making it a clean cosmetic upgrade alongside the functional one.

⚠️ Compatibility — NOT for Heat Pump Units

The 9430-725 is designed for cool-only rooftop air conditioner units — with or without an electric resistance heat strip. It is NOT compatible with heat pump rooftop units.

Heat pump units require a different control board and reversing valve wiring. If your rooftop unit is a heat pump model, the 9630-725 Heat Pump ceiling assembly is the correct assembly for your system instead.

Prefer Manual Control?

If you'd rather skip the Bluetooth/app interface and use straightforward manual controls, we carry two manual-control heat-ready non-ducted alternatives that don't require a 12V power supply circuit:

• Coleman Mach 9430E715 Deluxe Heat-Ready Non-Ducted — manual ceiling assembly with independently controlled front/rear airflow dampers
• Coleman Mach 9430E7153 Deluxe ChillGrille Non-Ducted — manual ceiling assembly with ChillGrille omnidirectional louver system

Both alternatives operate on 115V AC only — no 12V power supply circuit required.

Bluetooth Ceiling Assembly Variants

Coleman Mach offers three Bluetooth ceiling assemblies that share the same app, omnidirectional louver design, and 8000/9000 replacement compatibility — the difference is entirely in heating system compatibility:

• 9430-720 — Cool Only (no heat capability)
• 9430-725 — Heat Ready (this item) — for cool-only AC, supports electric heat strip
• 9630-725 — Heat Pump (for heat pump rooftop units only)

The 9430-725 is the most flexible choice for cool-only rooftop AC owners who want Bluetooth control and the option to add heating capability now or in the future.

Convenience and Maintenance Features

• Continuous or cycling fan — user-configurable air distribution behavior
• Evaporator freeze protection circuit — prevents ice buildup during extended low-load cooling
• Pop-out filter retainer grilles — tool-free access to the washable air filter
• Washable cloth air filter included in the kit (reusable, easy maintenance)
• FCC Certified Bluetooth radio module — legal U.S. operation

Warranty

Backed by a 1-year manufacturer warranty. Upgrade to a 2-year manufacturer warranty when purchased together with a Coleman Mach rooftop AC unit — confirm with the AC unit page or contact us before ordering to combine the bundle warranty.

What's Included

• (1) Heat/Cool Bluetooth Ceiling Assembly
• (1) Cloth Air Duct
• (1) Mounting Frame
• (1) Control Box
• (1) 12 VDC Power Supply
• (1) Washable Cloth Air Filter
• Installation Hardware
• Installation Manual

Sold Separately

• Electric heat strip (compatible with most 47xxx and 48xxx series Coleman Mach cool-only rooftop units)
• RV Climate app (free download from Apple App Store or Google Play)

Key Features

• Non-ducted Bluetooth ceiling assembly for cool-only and heat-ready applications
• Heat strip ready — pre-wired for electric resistance heat strip (sold separately)
• Bluetooth smartphone control via free RV Climate app (iOS 9.0+ / Android 4.4+)
• Pair up to 4 smart devices
• Multi-zone control from one app — supports multiple Bluetooth ceiling assemblies
• Backlit LCD display + control knobs for app-free operation
• Omnidirectional louvers — direct air in any downward direction
• Flow dampeners — forward and aft distribution when louvers closed
• Continuous or cycling fan operation
• Evaporator freeze protection circuit
• Low-profile Euro styling — covers prior ceiling assembly imprints
• Pop-out filter retainer grilles — tool-free filter access
• Washable cloth filter included
• 12 VDC power supply included
• Drop-in replacement for 8000 and 9000 series non-ducted assemblies
• NOT compatible with heat pump units (use 9630-725 instead)
• FCC Certified
• 1-year manufacturer warranty (upgradable to 2-year with AC purchase)

Specifications

• Brand: Coleman Mach / Airxcel
• Part Number: 9430-725
• Assembly Type: Non-Ducted Ceiling Assembly
• Function: Cool Only & Cool with Electric Heat Strip (Heat Ready)
• Control Type: Bluetooth wireless via RV Climate app
• Manual Control: Backlit LCD display + control knobs (horizontal surface)
• App Name: RV Climate
• iOS Compatibility: iOS 9.0 or later
• Android Compatibility: Android OS 4.4 or later
• Device Pairing: Up to 4 smart devices
• Multi-Zone App Control: Yes
• Fan Operation: Continuous or cycling
• Airflow System: Omnidirectional louvers + flow dampeners (forward & aft)
• Freeze Protection: Evaporator freeze protection circuit
• Control Voltage: 12 VDC
• Power Supply: 12 VDC (included)
• Certification: FCC Certified
• Compatible Rooftop Units: Coleman Mach cool-only rooftop units (with or without electric heat strip)
• NOT Compatible With: Heat pump rooftop units (use 9630-725 instead)
• Replaces: All 8000 & 9000 series non-ducted ceiling assemblies
• Dimensions: 20-7/8" W × 22" L × 2-1/4" H
• Color: White
• Warranty: 1-year manufacturer warranty (upgradable to 2-year with Coleman Mach AC purchase)
