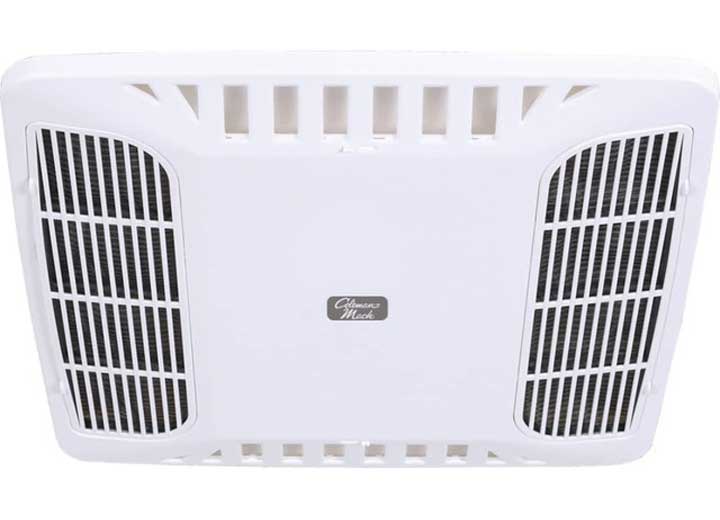

Coleman | Mach RV Ceiling Assembly | 8430A635 | Heat Ready | Lateral Ducted

Equip your Coleman Mach ducted air conditioner with the Coleman Mach 8430A635 ChillGrille Heat-Ready Lateral Ducted Ceiling Assembly in white. This heat-ready assembly is engineered for lateral-ducted Coleman Mach AC installations — featuring the dual-mode DirectFlow Louver System, EZReach washable filter, and wiring to accept an optional electric heat strip for supplemental heating whenever you choose to add one.

DirectFlow Louver System — Dual-Mode Airflow

One of the standout features of the 8430A635 is the DirectFlow Louver System, which gives occupants real-time control over how conditioned air is delivered:

• Open the louvers to direct conditioned air straight down into the cabin — best for spot cooling or focused airflow in one area
• Close the louvers to redirect airflow forward and aft through the front and rear airflow dampers — distributing conditioned air throughout the RV via your existing lateral duct system

Both modes are available at any time with no tools or adjustments needed — just open or close the louvers to suit the situation.

Heat Strip Ready — Add Supplemental Electric Heat Later

The 8430A635 is wired to accept an optional electric heat strip for supplemental heating when the furnace is overkill or unavailable. The heat strip itself is sold separately and varies by your AC series:

• Coleman Mach 4700 Series: Heat strip #47233-4551 (sold separately)
• All Other Series: Heat strip #9233A4551 (sold separately)

The heat strip installs into the return air opening of the ceiling plenum and provides supplemental electric warmth without running the furnace. Add it now or later — the ceiling assembly is ready either way.

EZReach Filter Access

Routine filter maintenance is straightforward with the EZReach Filter System:

1. Loosen the fastener
2. Swing out the grille
3. Remove the washable filter for cleaning
4. Reinstall — no tools required

The washable filter saves on replacement costs over the life of the unit, and the tool-free swing-out access means you'll actually do the maintenance regularly rather than putting it off.

Slender Low-Profile Design

The slim ceiling profile maximizes overhead clearance — important in RVs where every inch of headroom matters. Installation is straightforward, with fully illustrated step-by-step instructions included in the kit.

⚠️ Compatibility — Heat-Ready ACs Only, NOT Heat Pump

The 8430A635 is engineered for heat-ready air conditioners — units that are wired and configured to accept an optional electric heat strip but do not have a heat pump compressor. It is NOT compatible with heat pump rooftop units.

If your rooftop unit is a heat pump model (47xxx, 48xxx, or 49xxx heat pump variant), the correct ceiling assembly is the 8630A635 — which includes a heat pump-capable control box. Using a heat-ready assembly with a heat pump rooftop unit will result in incorrect system operation.

Direct Replacement for Prior Models

The 8430A635 is a direct replacement for two earlier Coleman Mach ChillGrille assembly part numbers:

• Replaces 8330E635
• Replaces 8430-635

If your existing ceiling assembly shows either of those part numbers, this is the correct replacement — same footprint, same connections, drop-in fit.

Required Wall Thermostat — Sold Separately

The 8430A635 requires a compatible wall thermostat to operate. The current matching Coleman Mach wall thermostat is the Coleman 9420A382 Digital Wall Thermostat — single-stage heat/cool control with digital LCD readout and high/low fan speeds. The 9420A382 replaces the older 8530A3451 thermostat (no longer in production) as the current required thermostat for this assembly.

The 8430A635 also includes an integrated thermostat control box — the thermostat connects directly to the assembly without needing a separate control box purchase.

ChillGrille Family — Pick the Right Variant for Your AC

Coleman Mach offers the ChillGrille lateral ducted assembly in four variants for different AC types — all share the same DirectFlow louver system and EZReach washable filter:

• 8430A633 — Cool Only, White
• 8430A634 — Cool Only, Black
• 8430A635 — Heat Ready, White (this item)
• 8630A635 — Heat Pump, White

The critical differentiator is your rooftop unit type: 84xx assemblies are for cool-only and heat-ready ACs; the 86xx assembly is for heat pump units. Verify your rooftop unit's model series before ordering.

Related Replacement Parts

• 8430-3801 — Replacement MERV 6 electrostatic filter for the 8430 series (if you eventually want a higher-efficiency filter than the standard washable filter)

Key Features

• ChillGrille heat-ready ceiling assembly for Coleman Mach lateral ducted AC systems
• Heat strip ready — accepts optional electric heat strip (sold separately by AC series)
• DirectFlow Louver System — open for direct cabin delivery; close to route through ducts
• EZReach filter access — tool-free swing-out grille with washable filter
• Slender low-profile design — maximum overhead clearance
• Integrated thermostat control box — no separate control box purchase needed
• Direct replacement for Coleman Mach 8330E635 and 8430-635
• Requires Coleman Mach 9420A382 wall thermostat (sold separately — replaces discontinued 8530A3451)
• White finish
• NOT compatible with heat pump rooftop units (use 8630A635 for heat pumps)
• Includes fully illustrated installation instructions
• 1-year manufacturer parts warranty (upgradable to 2-year when purchased with a Coleman Mach AC)

Sold Separately

• Wall Thermostat: Coleman Mach 9420A382 (replaces discontinued 8530A3451)
• Heat Strip — 4700 Series: 47233-4551
• Heat Strip — All Other Series: 9233A4551

Specifications

• Brand: Coleman Mach / Airxcel
• Part Number: 8430A635
• Type: ChillGrille Ceiling Assembly — Heat Ready
• Compatible Systems: Coleman Mach ducted heat-ready AC systems
• Ducting Type: Lateral ducted
• Airflow System: DirectFlow Louver System with front and rear airflow dampers
• Filter System: EZReach — swing-out grille with washable filter
• Required Wall Thermostat: Coleman Mach 9420A382 (sold separately) — replaces discontinued 8530A3451
• Compatible Heat Strip (4700 Series): 47233-4551 (sold separately)
• Compatible Heat Strip (Other Series): 9233A4551 (sold separately)
• Heat Pump Compatible: No (use 8630A635 for heat pump units)
• Integrated Thermostat Control Box: Yes
• Replaces: 8330E635, 8430-635
• Color: White
• Installation: Fully illustrated step-by-step instructions included
• Warranty: 1-year manufacturer parts warranty (upgradable to 2-year when purchased with a Coleman Mach AC)
