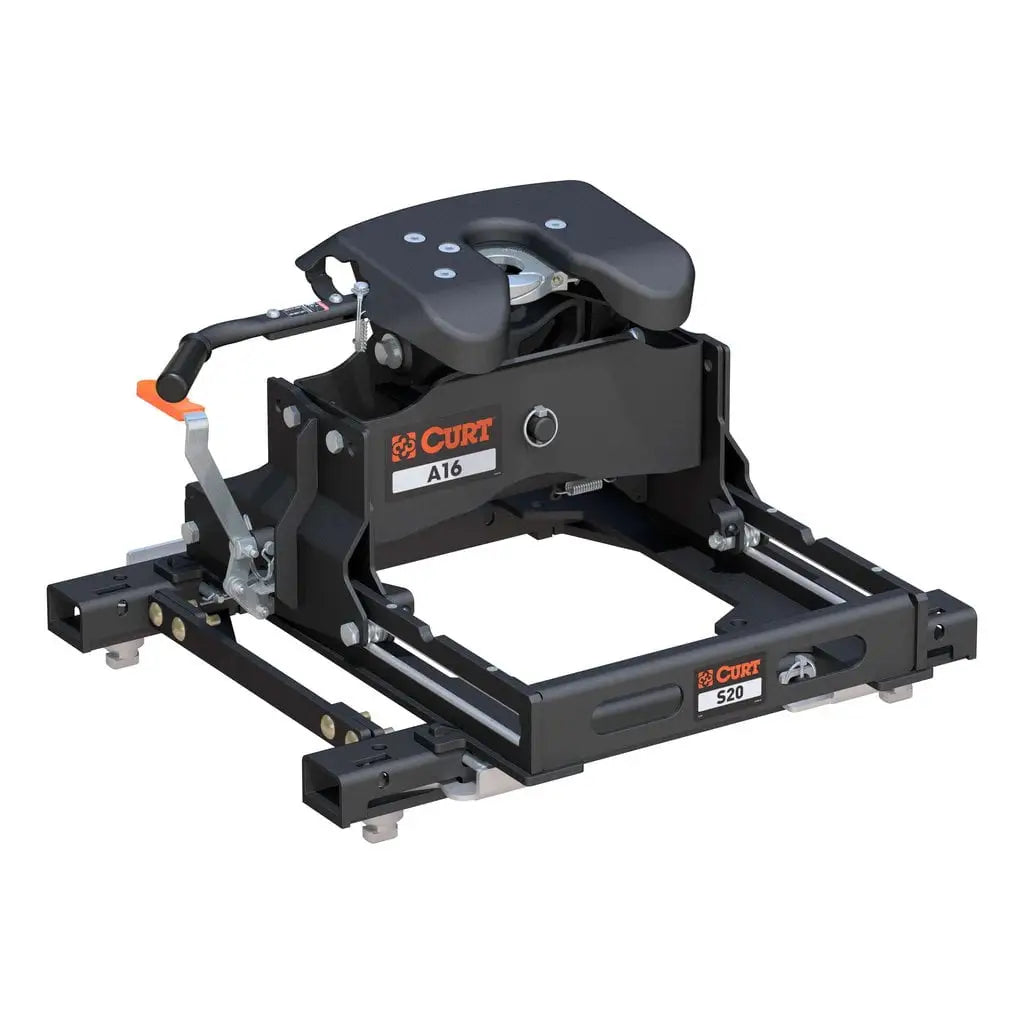

CURT A16 Sliding 5th Wheel Hitch | 16709 | 16K | GM Short-Bed Puck (6.5' bed)

CURT A16 Sliding 5th Wheel Hitch | 16709 | 16K | GM Short-Bed Puck (6.5' bed)

$2,546.00 CAD
$3,386.00 CAD $2,546.00 CAD
Sale Sold out
Shipping calculated at checkout.

The CURT A16 Sliding 5th Wheel Hitch (Part #16709) combines the premium A-Series A16 hitch head with the CURT S20 5th wheel slider — providing turn clearance for short-bed trucks or added maneuverability for standard-bed towing. Configuration: GM Short-Bed Puck (6.5' bed). A16 head + S20 slider + puck adapter — direct-fit to Chevrolet Silverado, GMC Sierra 2500/3500 HD 6.5' short-bed puck system. Slider provides critical turn clearance for short-bed configurations. Rated to 16,000 lb GTW / 4,000 lb vertical. Sidewinder pin box compatible. CURT limited lifetime warranty.

The CURT A16 Series — Premium 16K 5th Wheel Hitch

The CURT A-Series is CURT's premium 5th wheel hitch line — engineered above the entry-level E-Series with patented articulating head geometry, interlocking dual-jaw design, and self-resetting handle operation. The A16 is the 16,000 lb capacity variant. Meaningful highlights:

  • 16,000 lb gross trailer weight (GTW) — handles most travel trailers, mid-size 5th wheel RVs, and lightweight commercial trailers
  • 4,000 lb vertical load capacity
  • ⭐ Patented articulating torsion head (Patent #8,827,298) — cast yoke with poly-torsion inserts suppresses shock loads and reduces noise
  • ⭐ Self-resetting single-throw handle — pull once to couple/uncouple; handle automatically returns to ready-to-couple position after uncoupling
  • ⭐ High-strength interlocking dual jaws — fully wrap the kingpin for minimal movement and noise, providing better king pin contact than single-jaw designs
  • ⭐ Three-position color-coded coupling indicator — red (uncouple) / yellow (couple) / green (tow) — visible from the truck cab, eliminates getting out to check hitch state
  • ⭐ Extra-wide head opening — makes coupling easier, especially in low-visibility conditions
  • ⭐ Sidewinder pin box compatible — approved for use with Sidewinder-style turret pin boxes (E-Series is not)
  • Four height adjustment settings (13"–17" range) for different trailer/truck combinations
  • Carbide black powder coat finish
  • Backed by CURT's limited lifetime warranty (one-year finish, one-year parts)

⭐ CURT S20 Slider — True Rolling Design

Standout slider engineering vs competitor units:

  • True rolling design — S20 rolls on wheels that bear the trailer weight, rather than sliding on hollow rods (as seen in many competitor models)
  • ~12" of rearward displacement (competitors often only offer 10")
  • Thick operating handle — smooth roll forward/back operation
  • Locks securely into each position (extended and retracted)

Critical for short-bed trucks: 6.5' beds don't have the clearance for a fixed-position hitch when making tight turns — the trailer nose can strike the truck cab. The S20 slider provides ~12" of rearward displacement to prevent contact. Required equipment for safe 5th wheel towing with a 6.5' bed.

Configuration Details

Configuration: GM Short-Bed Puck (6.5' bed)

A16 head + S20 slider + puck adapter — direct-fit to Chevrolet Silverado, GMC Sierra 2500/3500 HD 6.5' short-bed puck system. Slider provides critical turn clearance for short-bed configurations.

All A16 Sliding & Kit Options

Prefer Fixed-Position Puck Fit? (8' Beds Only)

Just the A16 Base Configurations?

A16 vs E16 — Why Choose A16?

The A16 and E16 are both 16,000 lb capacity 5th wheel hitches sharing the same puck-system compatibility and truck fitment. Meaningful A16 upgrades over E16:

  • Articulating head + cast yoke with poly-torsion inserts — smoother, quieter ride than E16's basic dual-pivot head
  • Self-resetting handle — fewer steps during hookup than E16's basic single-handle
  • Interlocking dual jaws — better king pin contact vs E16's single slide-bar jaw
  • 3-position color-coded indicator — vs E16's basic coupling status
  • Sidewinder pin box compatible — E16 is not
  • Slightly lighter overall — easier install/removal

The E16 remains the value option for buyers who prioritize price and don't need the A-Series comfort and convenience features.

Need Higher Capacity?

The A16 is capped at 16,000 lb GTW. For heavier trailers, CURT offers the A-Series in higher capacities and the flagship PowerRide:

  • A20 (20K) — 20,000 lb GTW / 5,000 lb vertical load
  • A25 (25K) — 25,000 lb GTW for large 5th wheels
  • A30 (30K) — Maximum A-Series capacity for luxury 5th wheels and heavy toy haulers
  • PowerRide (30K) — CURT's flagship — multi-directional head, strategic grip points

Each higher-capacity variant is available for the same puck-system trucks and universal industry-standard base rails.

Load Ratings

  • Gross Trailer Weight (GTW): 16,000 lb
  • Vertical Load Capacity: 4,000 lb

Cross-Reference Part Numbers

  • Part Number: 16709
  • UPC: 612314060962
  • Patent: #8,827,298

⚠️ Professional Installation Recommended

Sliding 5th wheel hitch assemblies are heavy and require proper mounting/anchor torque. Installation should be performed by a qualified installer.

Limited Lifetime Warranty

Backed by CURT's limited lifetime warranty (one-year finish, one-year parts).

Genuine CURT OEM

Key Features

  • Genuine CURT OEM A16 Sliding 5th Wheel Hitch
  • Part Number: 16709
  • UPC: 612314060962
  • ⭐ CURT S20 slider — true rolling design, ~12" displacement
  • ⭐ Patented articulating torsion head
  • ⭐ Self-resetting single-throw handle
  • ⭐ Interlocking dual jaws
  • ⭐ 3-position color-coded indicator
  • ⭐ Sidewinder pin box compatible
  • Configuration: GM Short-Bed Puck (6.5' bed)
  • Gross trailer weight: 16,000 lb
  • Vertical load capacity: 4,000 lb
  • Backed by CURT's limited lifetime warranty

Specifications

  • Brand: CURT
  • Part Number: 16709
  • UPC: 612314060962
  • Product Line: A16 (A-Series Premium)
  • Type: 5th Wheel Sliding Hitch
  • Patent: #8,827,298
  • Configuration: GM Short-Bed Puck (6.5' bed)
  • Slider: CURT S20 (true rolling, ~12" displacement)
  • Gross Trailer Weight (GTW): 16,000 lb
  • Vertical Load Capacity: 4,000 lb
  • Head Design: Cast yoke with poly-torsion inserts, fully articulating
  • Jaw Design: High-strength interlocking dual jaws
  • Handle: Lockable single-throw, self-resetting
  • Coupling Indicator: 3-position color-coded
  • Pin Box Compatibility: Standard + Sidewinder
  • Height Adjustment: 4 positions (13"–17" range)
  • Finish: Carbide black powder coat
  • Warranty: Limited lifetime (one-year finish, one-year parts)
