Dometic™ 3317928.000 OEM FreshJet Air Conditioner Fan Motor Assembly Genteq F48AK22A61

Dometic™ 3317928.000 OEM FreshJet Air Conditioner Fan Motor Assembly Genteq F48AK22A61

Regular price $180.00 CAD
Regular price $249.00 CAD Sale price $180.00 CAD
Sale Sold out
Shipping calculated at checkout.

Unit was pulled from a damaged AC unit.

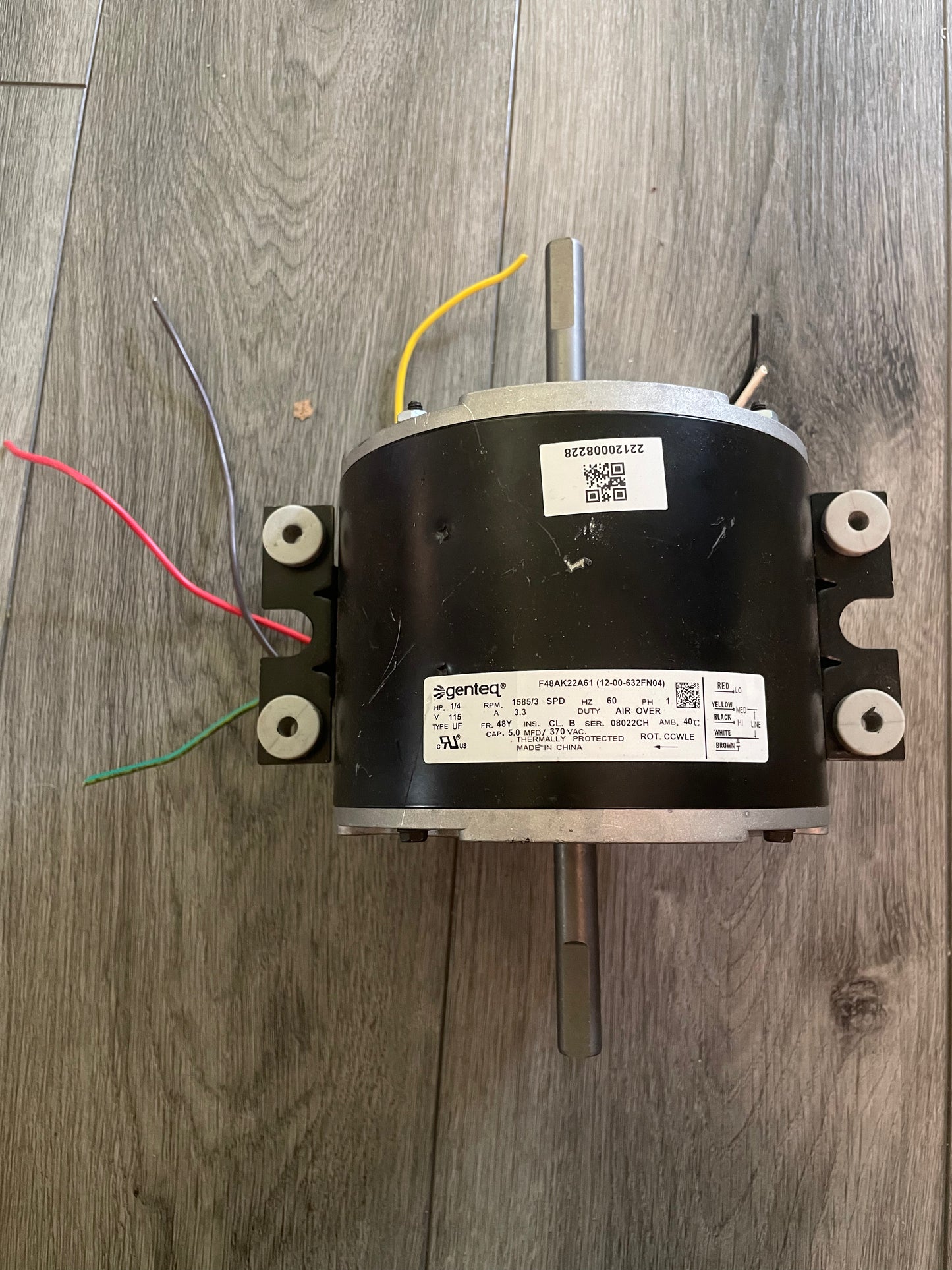

Unit has minimal usage. Please see photo.

Comes with a 1-Year warranty from The RV Surplus.

This is an OEM replacement fan motor for your Dometic FreshJet roof top air conditioner. This motor powers the fan and blower wheel that moves air through the RV's air conditioning system. The RV air conditioner motor is responsible for generating the force required to move the air through the air conditioning system. It is designed to operate at high speeds for extended periods of time and is built to withstand the harsh conditions of RV travel.
  • Mounting Style: Dometic FreshJet Series mounting brackets
  • Motor Type: Genteq F48AK22A61
  • Connection Style: Wiring to connect to a capacitor and a 6-pin plug (Plug NOT Included)
Reliable and Efficient
This is a shaded pole motor which works by creating a rotating magnetic field using an AC power source. This results in low noise, high reliability, and low maintenance. Shaded pole motors are generally quieter than other types of motors, and have a simple design that reduces the risk of mechanical failure. They are also less susceptible to damage from power surges or voltage fluctuations, which can increase their reliability and lifespan.
3-Speed Function
The 3-speed function includes low, medium, and high settings, each providing a different level of air flow. This allows for greater customization of the air conditioning system's operation and can help to improve energy efficiency by matching the air flow to the cooling load.
Make sure you order the correct motor for your air conditioner model number. The Dometic part number is in relation to the complete motor, mounting style and connection style. If the Genteq number on your motor matches this motor, it does not guarantee it will match the mounting style and connection style.

Additional Info

Power Source: 115V AC

Max Load Amps: 3.3 Amps

HP: 1/4

Motor Body Dim: 5-1/2" Diameter x 4-3/8" Thick


D-Shaft #1 Dim:  2-3/8"L x 1/2" Diameter

D-Shaft #2 Dim: 3"L x 1/2" Diameter


Compatible with:
Dometic Freshjet Air Conditioners: FJX3473MWHAS, FJX3473MBKAS, FJX3573MWHAS, and FJX3573MBKAS
