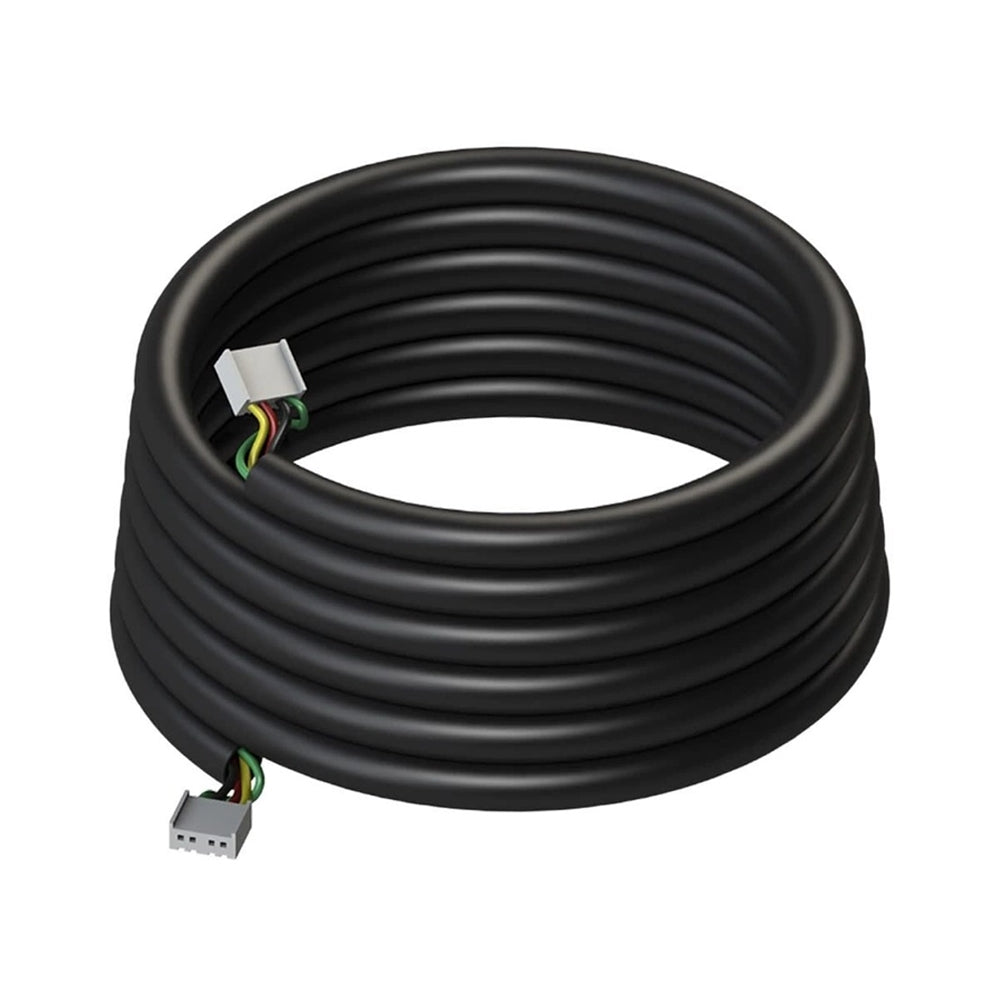

Lippert Leveling Touchpad Interface Harness | 241316 | 10 ft 4-Pin

Restore touchpad-to-controller communication on your Lippert RV leveling system with the Lippert 241316 4-Pin Interface Harness (10 ft). This genuine Lippert OEM plug-and-play replacement harness connects compatible Lippert leveling control panels to the touchpad — the critical signal pathway that lets your touchpad command the leveling system. The right replacement when your original cable is damaged, missing, cut, pinched, corroded, or too short for clean routing.

What This Harness Does

The 241316 is the signal interface between your leveling controller and touchpad:

• Connects the leveling touchpad to the leveling control module
• Restores communication so the touchpad can command the system
• Replaces a cut, pinched, corroded, or missing 4-pin interface cable
• Provides clean routing flexibility with 10 ft of usable length

When the interface harness fails, your touchpad becomes unresponsive — you can press buttons, but the controller never receives the signals. The leveling system simply stops responding to user commands even though the controller and touchpad themselves may both be fully functional.

Specifically for Compatible 4-Pin Lippert Systems

The 241316 is commonly used to connect:

• Control panel / control module: Lippert 803280
• Touchpad: Lippert 421484
• Other compatible Lippert leveling control modules: Including 242623-4

The 241316 is designed for Lippert systems that use a 4-pin touchpad connection.

⚠️ Verify 4-Pin Compatibility Before Ordering

Critical fitment detail: Lippert uses multiple harness styles across different system generations. Before ordering, confirm:

• Your system uses a 4-pin touchpad connection (not 3-pin, 6-pin, or other configurations)
• The connector shape and keying matches your existing harness
• Your control panel and touchpad model numbers match documented compatibility

If your existing harness has a different pin count or connector style, the 241316 will not fit your installation. Match the connector style to your existing harness before ordering.

10-Foot Length — Clean Routing Capability

The 241316 provides a generous 10 ft cable length:

• Clean routing through cabinets, walls, and bay compartments
• Eliminates the need for extensions or wiring hacks that cause intermittent communication issues
• Adequate length for most typical RV leveling installations
• Replaces shorter cables that were marginal for the routing path

Many installations replace a working but undersized cable with this 10 ft variant simply to clean up wiring routes that were strained by the original shorter cable.

Plug-and-Play Installation

The 241316 is engineered as a plug-and-play replacement — meaning no splicing is required in most installations. Simply unplug the old harness from both ends and plug in the new harness. Clean, reliable, and avoids the long-term reliability issues that come with field-spliced connections.

Common Failure Symptoms

Common reasons to replace the interface harness include:

• Touchpad is unresponsive to button presses
• Intermittent communication — system works sometimes, doesn't other times
• Cable visibly damaged — cut, pinched, exposed wires, or crushed connector
• Connector pins are bent, broken, or corroded
• Cable is too short for clean routing, causing strain at connectors
• Original cable is missing from an installation or relocation project
• Replacing aged cable as preventive maintenance during broader leveling system service

Installation Steps

Standard installation sequence for the 241316 harness:

1. Disconnect RV battery power before servicing the leveling system
2. Unplug the old harness from both the control module and the touchpad
3. Route the new harness away from sharp edges, heat sources, and moving parts
4. Secure with zip ties or clamps to prevent chafing during travel
5. Reconnect power and verify touchpad operation

Troubleshooting After Installation

If the touchpad still does not respond after replacing the harness, check:

• 12V power and ground at the control module
• Fuse(s) for the leveling system
• Connector pins for corrosion, bent terminals, or loose fit

If these check out and the touchpad still doesn't respond, the issue may lie in the touchpad itself or the control module — separate diagnostic and replacement scope from the interface harness.

⚠️ Professional Installation Recommended

RV leveling system component installation involves working with the RV's 12V DC electrical system and integrated control architecture. While the harness replacement is plug-and-play, ensure proper battery disconnect and routing for safe, reliable operation. Installation can be performed by a qualified RV service technician or experienced DIY owner with proper electrical safety practices.

Genuine Lippert OEM Replacement

As a Lippert factory replacement part, the 241316 is built to original specifications for a precise plug-and-play fit on compatible 4-pin Lippert leveling systems.

Key Features

• Genuine Lippert OEM 4-pin interface harness
• 10 ft cable length for clean routing flexibility
• 4-pin interface — for Lippert systems using 4-pin touchpad connection
• Plug-and-play — no splicing required in most installations
• Connects compatible Lippert control modules to touchpads
• Commonly used with: Lippert 803280 control panel, 421484 touchpad, 242623-4 control modules
• Direct replacement for damaged, missing, or short interface cables

Specifications

• Brand: Lippert
• Part Number: 241316
• Type: Leveling System 4-Pin Interface Harness
• Length: 10 ft
• Pin Configuration: 4-Pin
• Application: Lippert leveling system touchpad-to-controller communication
• Commonly Used With: Lippert 803280 control panel, 421484 touchpad, 242623-4 control modules
• Installation: Plug-and-play (no splicing required)
