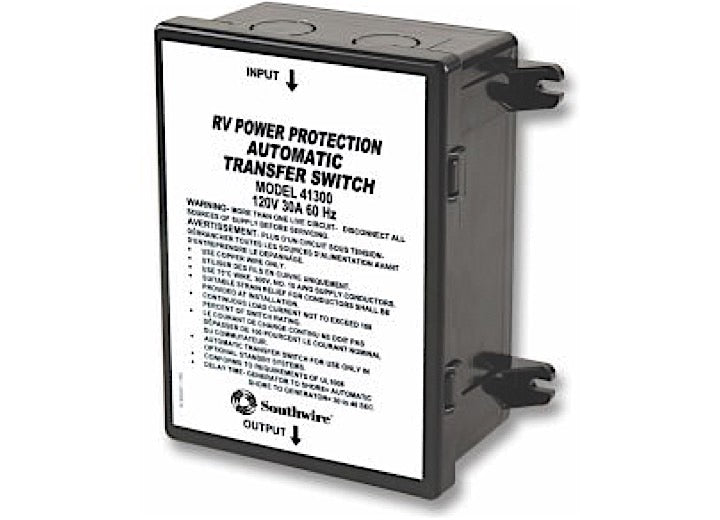

Southwire | 30 Amp Automatic Transfer Switch | 41300-001 | Hardwired

The Southwire 30 Amp Automatic Transfer Switch (Model 41300-001) seamlessly transfers power from shore to generator with a 30-second delay and back to shore power within 3-4 seconds after the generator shuts down. This UL-approved switch is hardwired, featuring a dual contactor arrangement and proprietary electrical interlock, though it does not provide surge protection.

• Rated for 120V, 30A
• Automatic transfer to generator power after 30-second delay
• Reverts to shore power 3-4 seconds after generator shutdown
• Dual contactor arrangement with proprietary electrical interlock
• No surge protection included
• UL1008 full transfer switch rating
• 5.58 Inch Width x 7.62 Inch Height x 3.31 Inch Depth
• Hardwired installation
