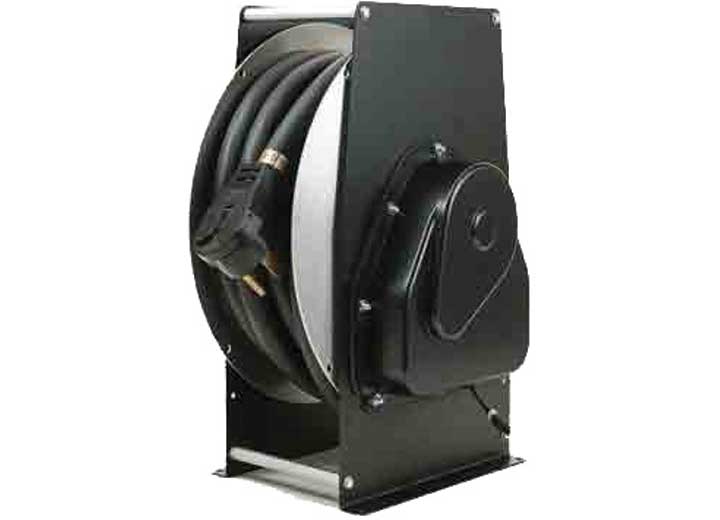

Southwire Corp. Power Cord Reel 50 Amp 33' RH54331RMK

End the struggle of wrestling a heavy 50-amp shore power cord with the SouthWire Motorized 50 Amp Power Cord Reel (RH54331RMK). No other cord reel retrieves more quickly or stores more compactly — pull the cord and it free-spools off the reel so you only pull off what you need, then push the button and the drive motor reels that bulky 50-amp cord back in for you.

New High-Torque Motor — 3x the Pulling Power

This updated design features a new high-torque motor that delivers 3x the pulling power of the previous version, along with quieter operation. The result is faster, smoother, more reliable retraction — even with a heavy, fully extended 50-amp cord. There are no clutches in the system; the drive is always engaged for consistent performance.

Powered Convenience, No Remote Needed

The reel free-spools for easy cord removal when paying out line, then the 12 VDC chain-drive gear motor powers it back in when you're done. There's no remote control to lose or fumble with — just a simple included rocker switch. The super-flexible, non-stiffening power cord resists the kinks and tangles that make cord management such a chore.

Built to Last

Aluminum spool sides and core keep the unit light and corrosion-resistant, while powder-coated galvanized steel side frames stand up to the elements. The reel hard-wires into your coach via a 4-foot pigtail that attaches to your transfer switch or junction box.

Optional Accessories

For cords exiting through storage compartment floors, optional floor portal and roller kits are recommended to protect the cord and ensure smooth operation.

Key Features

• NEW high-torque motor — 3x the pulling power of the previous design
• NEW quieter operation
• Free-spool design for easy cord removal, powered retraction by drive motor
• No remote needed — includes rocker switch kit
• No clutches — drive system always engaged
• Non-stiffening, super-flexible power cord eliminates tangles and kinks
• Aluminum spool sides and core; powder-coated galvanized steel side frames
• Hard-wired into the coach with a 4-foot pigtail
• Optional floor portal and roller kits available
• Backed by a 1-year warranty

Specifications

• Brand: SouthWire
• Model: RH54331RMK
• Type: Motorized 50 Amp Power Cord Reel
• Main Cord Length: 33 ft (to campground power post)
• Pigtail: 4 ft (to junction box)
• Cord Type: (3) conductors 6 AWG & (1) conductor 8 AWG; 4 ft pigtail
• Drive System: 12 VDC chain-drive gear motor
• Motor Amp Draw: 4–6 A normal operation; up to 12 A locked rotor (overload trips 10–12 A)
• Weight: 48 lbs (with cord)
• Dimensions: 10.08" W x 14" D x 16.5" H
• Includes: Rocker Switch Kit
