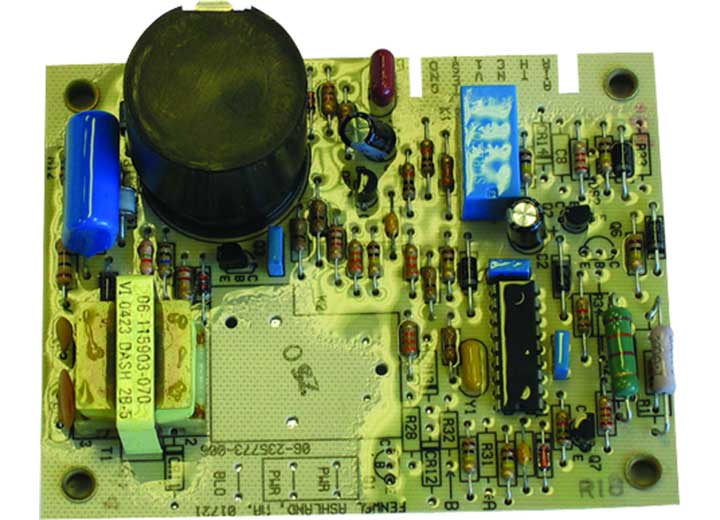

Suburban Water Heater Ignition Module Board | 520814 | SW Series

Restore reliable operation to your Suburban SW Series RV water heater with the Suburban 520814 Ignition Control Module Board. This genuine Suburban OEM Direct Spark Ignition (DSI) control board is the brain of the water heater — managing ignition sequencing, gas valve operation, flame detection, and temperature regulation. When the module board fails, the water heater can become unresponsive, fail to ignite, or display erratic behavior.

Wide SW Series Model Compatibility

The 520814 fits an extensive range of Suburban SW Series water heaters across multiple tank sizes and variants:

• SW4 D
• SW6 D, DE, DEL, DEM, DM
• SW10 D, DE, DEL, DEM, DM
• SW12 D, DE, DEL, DEM
• SW16 D, DE, DEL, DEM

That broad compatibility makes the 520814 the right replacement module board for most SW Series water heater installations. Verify your model number on the water heater's manufacturer label before ordering.

How the Module Board Works

The 520814 serves as the central processing unit for your Suburban water heater — orchestrating the sequence of operations needed for efficient hot water production:

• Monitors water temperature via sensors
• Controls gas flow through the gas valve
• Manages the ignition process via spark electrode
• Makes real-time decisions for initiating heating cycles
• Maintains safety features to prevent overheating and component damage

Ignition Sequence Management

When you demand hot water, the control board kicks off the ignition sequence:

1. The board signals the spark electrode to generate a high-voltage spark
2. The spark ignites gas at the burner, creating the flame that heats your water
3. The electrode also detects the presence of flame as a safety check
4. If no flame is detected, the board attempts to reignite — preventing gas waste and accumulation

Gas Valve Control & Temperature Management

The 520814 directly controls the gas valve based on water heater status and demand:

• When water temperature drops below the set point, the board opens the gas valve to feed gas to the burner
• Once the desired temperature is reached, the board closes the gas valve to extinguish the flame
• This precise valve control optimizes fuel efficiency and prevents gas leaks

Common Failure Symptoms

If you're trying to confirm whether the module board is the cause of your water heater issues, common board failure symptoms include:

• Water heater won't ignite despite proper gas supply and power
• No spark at the electrode when heating is demanded
• Erratic ignition or shutdown behavior
• Unit shows no signs of operation when activated
• Repeated lockout after failed ignition attempts
• Inconsistent temperature control

Before assuming the board has failed, rule out simpler issues like low propane pressure, blocked burner, failed igniter electrode, or wiring/connection problems — these can mimic board failure symptoms.

Paired Component — SW Series Gas Valves

The module board works hand-in-hand with the water heater's gas valve. If you're diagnosing a failed SW Series water heater and aren't sure whether the issue is the control board or the gas valve, the SW Series gas valve replacements depend on your water heater's serial number range:

• Suburban 161306 Gas Valve — for SW Series with serial numbers starting with 164+
• Suburban 525042 Gas Valve — for SW Series with serial numbers starting with 953+

Both components often fail together since they share the same operating environment, so if one has worn out, the other may be next.

Genuine Suburban OEM Replacement

As a Suburban factory replacement part, the 520814 is built to original specifications for a precise drop-in fit. The kit includes both the module board and the foam tape needed for proper installation.

⚠️ Professional Installation Recommended

Water heater electronics should be installed and tested by a qualified service technician. Improperly installed control boards can result in unsafe gas operation, electrical hazards, or component damage.

Need to Troubleshoot or Replace Your Water Heater?

If you're weighing whether to repair your existing water heater or replace it entirely, our resource guides may help:

• How to Replace an RV Water Heater — full water heater replacement guide
• Tankless vs Tank RV Water Heaters — if you're considering upgrading to tankless

What's Included

• (1) Suburban 520814 Module Board
• Foam tape (for installation)

Key Features

• Genuine Suburban OEM ignition control module board
• Wide SW Series compatibility — SW4, SW6, SW10, SW12, and SW16 (D/DE/DEL/DEM/DM variants)
• Direct Spark Ignition (DSI) control
• Manages ignition, gas valve, flame detection, and temperature
• Active flame-detection safety feature
• Automatic re-ignition attempts on initial failure
• 12V DC operation
• Includes foam tape for installation
• Compact dimensions: 4" L × 2-1/4" W × 1-3/8" H
• Backed by a limited 90-day manufacturer warranty

Specifications

• Brand: Suburban
• Part Number: 520814
• Type: Ignition Control Module Board (Direct Spark Ignition)
• Power Source: 12V DC
• Compatible Models: Suburban SW Series — SW4 D; SW6 D/DE/DEL/DEM/DM; SW10 D/DE/DEL/DEM/DM; SW12 D/DE/DEL/DEM; SW16 D/DE/DEL/DEM
• Function: Ignition control, gas valve management, flame detection, temperature regulation
• Dimensions: 4" L × 2-1/4" W × 1-3/8" H
• Weight: 5.6 oz
• Included Accessories: Foam tape
• Warranty: 90-day limited manufacturer warranty
