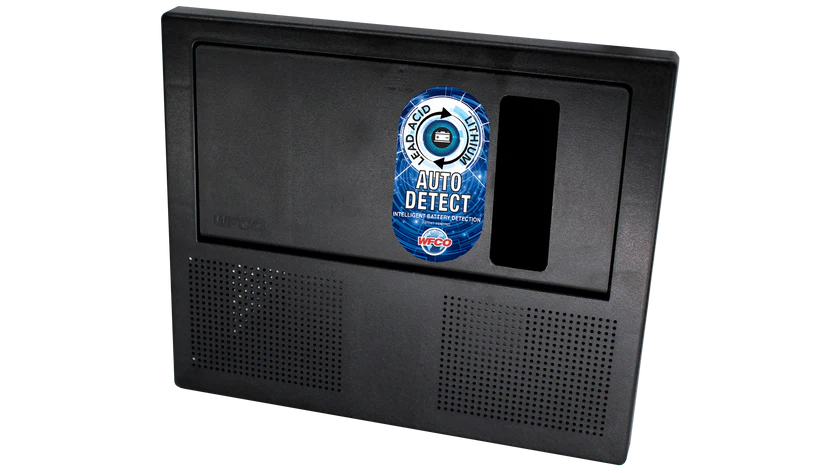

WFCO | Lithium Battery Power Center | Auto-Detect | WF-8945-AD | 45 Amp
WFCO | Lithium Battery Power Center | Auto-Detect | WF-8945-AD | 45 Amp
Couldn't load pickup availability
Comes in factory box - box has been opened - item is still new
The WFCO WF-8945-AD Power Center is equipped with cutting-edge Auto-Detect technology, ensuring optimal charging for both lithium-ion and lead-acid batteries. This advanced system automatically adjusts the charging profile, providing precise charging without the need for manual adjustments.
- 45 Amps Output: Provides robust power for RV batteries.
- Auto-Detect Technology: Automatically identifies battery type and adjusts the charging profile.
- Microprocessor-Driven: Ensures accurate and efficient charging for different battery chemistries.
- Eliminates Manual Adjustments: No more buttons or switches needed for charging.
- Maximizes Battery Life: Multi-stage charging and current monitoring optimize battery longevity.
- Trusted by the RV Industry: Part of the best-selling WF-8900 Series, known for reliability and performance.
-
Replaces: WF-8945PEC
| Output Power |
770 W |
|---|---|
| Input Voltage/Hz |
105-130 VAC, 60 Hz |
| Weight |
7.75 lbs. |
| Dimensions |
12 3/16" x 10 7/8" x 7 1/4" |
| Replacement Board (if applicable) |
WF-8945-MBA (Main Board Assembly, 45 Amps) |
| Output Current |
41.5A, 45 A |
| Converter Type |
Three-Stage Converter Charger, Two Stage Converter Charger |
| Voltage Output |
Lead Acid – 13.2 – 14.4V DC Range, Lithium-Ion – 13.2 – 14.6 VDC, 13.6 – 14.6 VDC |
| Bulk Mode (Quick Charging Voltage) |
14.4V DC (quick charging voltage) |
| Absorption Mode (Nominal Voltage) |
13.6V DC (nominal voltage) |
| Float Mode (Trickle Charge Voltage) |
13.2V DC (trickle charge voltage) |
| Over Current |
Yes |
| Over Temperature |
Yes |
| Over Voltage |
Yes |
| Reverse Polarity |
Yes |
| Cooling System |
Yes |
| AC Circuits (twin breakers) |
1 main and 5 branch circuits, 10 (Main and 9 Branch Circuits) |
| DC Circuits (Quantity) |
(2 30A max), 11 (9 20A max) |
| Case Material |
Plastic |
| Case Color |
Black |
| Certifications |
FCC |
Comes with 1-year warranty with The RV Surplus.
