EQ Systems AJ 2/24 Hydraulic Trailer Jack System | Dual Leg Tandem | 16,000 lbs | Single Switch

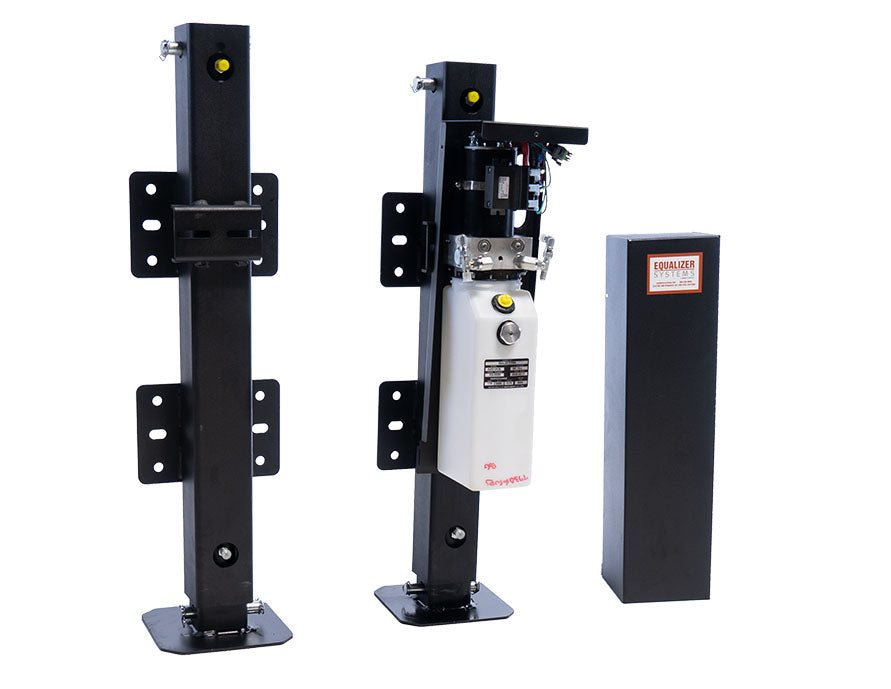

Lift your gooseneck horse or motorsports trailer with the EQ Systems AJ 2/24 Dual-Leg Hydraulic Jack System — a complete dual-leg hydraulic lifting system that bolts to the front of a gooseneck trailer, featuring 3.5" × 3.5" tube-in-tube AJ-series jacks, 24" stroke, and 16,000 lbs total lifting capacity. A single rocker switch runs both legs in tandem for simple, straightforward operation. Available at The RV Surplus.

Fitment critical: Verify compatibility before ordering. Call EQ Systems at 800-846-9659.

⭐ 16,000 lbs Dual-Leg Lift

• Two AJ-series 3.5" × 3.5" tube-in-tube legs
• 24" stroke each
• Single rocker switch runs both legs in tandem — simpler control than independent switch versions

⭐ Weatherproof Keyed Control

• Weatherproof switchgear with rocker switch and key standard
• Prevents unauthorized use

⭐ Screw-Drive Manual Override

• If power fails, drive the pump with a reversible drill through the override shaft
• Use a 6mm (1/4") Allen hex key
• Clockwise retracts, counter-clockwise extends
• Drill must reach at least 2000 RPM for adequate pressure
• Take care not to contact wires or hoses with the drill

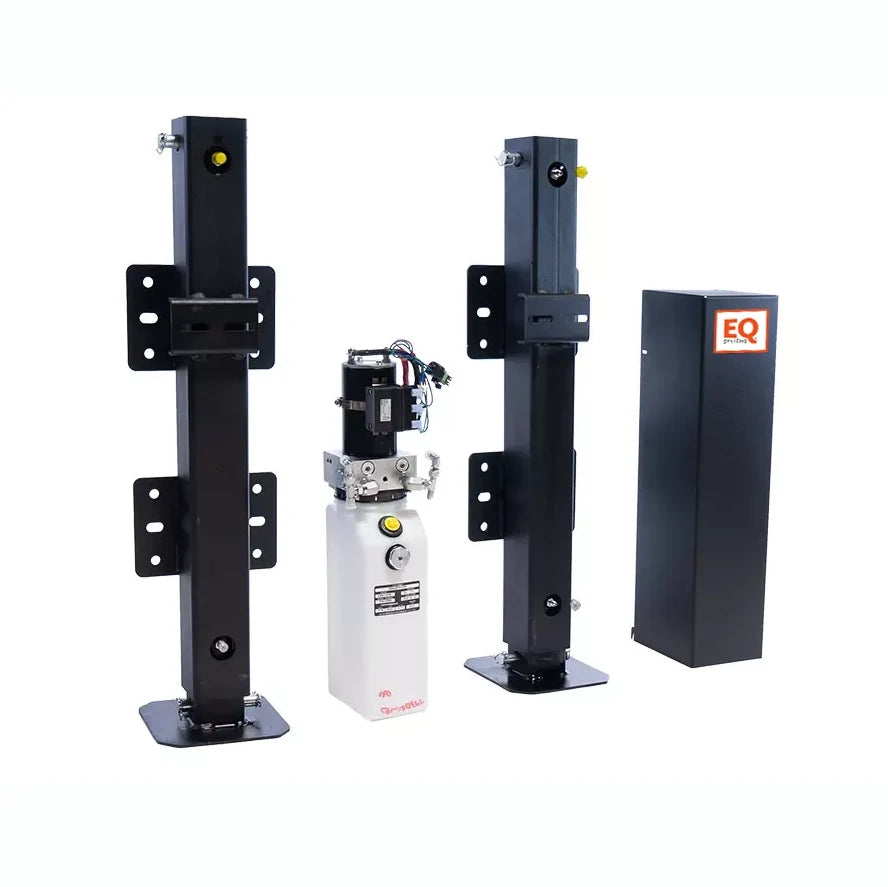

What's Included (8414AMUPS)

• Two AJ-series 24" stroke jacks
• Commercial single-function pump with screw-drive manual override
• Steel pump cover
• Weatherproof keyed switchgear (single switch, tandem operation)

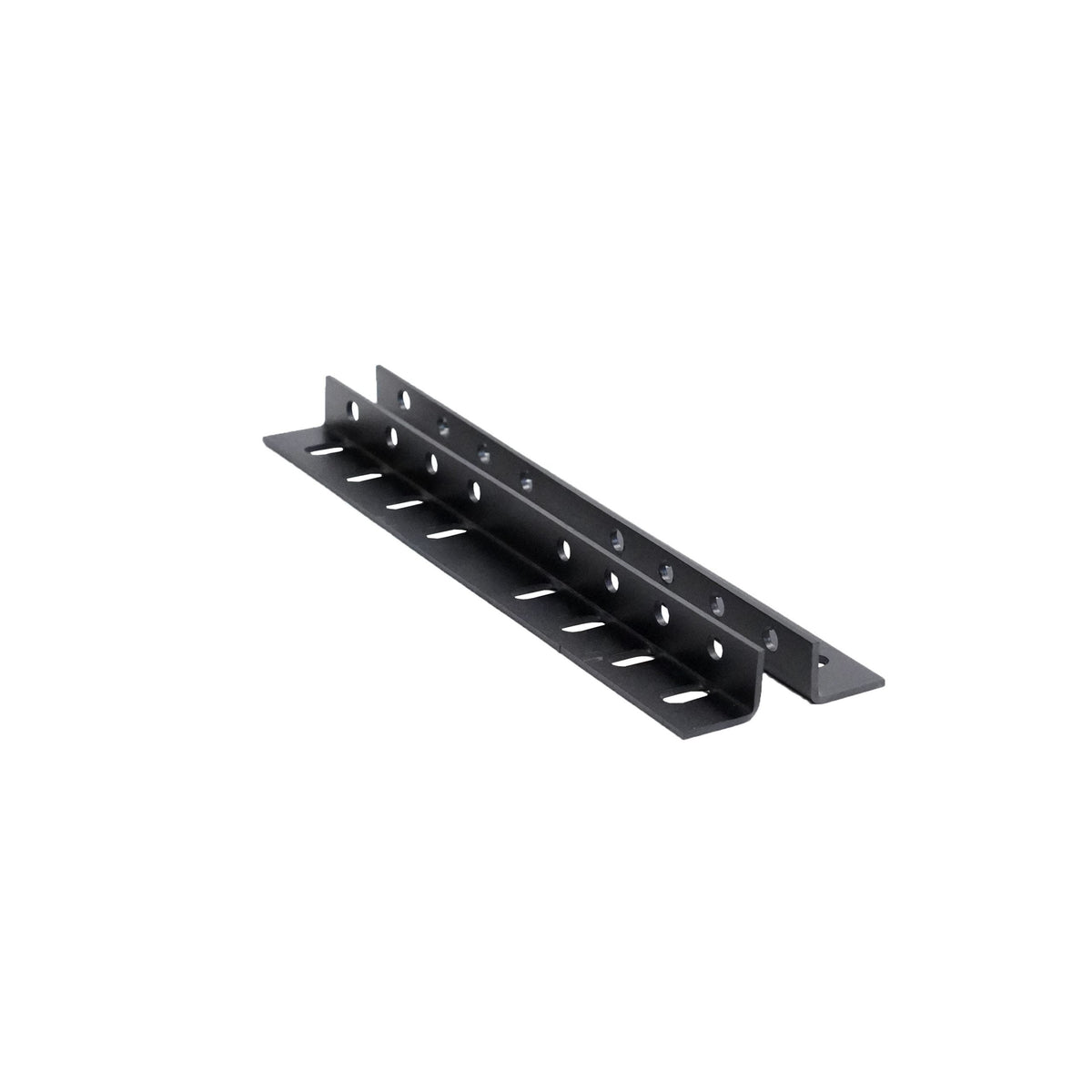

• Universal mounting brackets
• Wire harnesses in PVC high-temperature nylon braid

Battery Requirements

Load-test the battery before installing. EQ Systems requires a minimum of 150 amperes at 10.5 VDC for at least 30 seconds.

Fluid and Maintenance

Runs on Dexron III ATF, filled to about 1" below top of reservoir with jacks fully retracted (level rises as jacks retract). Reservoir must run with its vented breather cap fitted, not the flush shipping plug, or the jack will operate erratically. Inspect every 12 months.

Service Parts

• AJ 70 Cylinder (part 2505EQ) — replacement hydraulic cylinder
• Wireless Remote #7823 — optional wireless remote
• Verify switchgear parts against the ID charts or call 800-846-9659

Documents

• EQ Systems Lifting Systems for Any Size Trailer (PDF)
• AJ Dual Leg Installation and Operation Manual, EQ009R8 (PDF)
• Hydraulic Cylinder Identification for Tube-in-Tube Jacks (PDF)
• Parts Identification Charts
• Required Maintenance Items for EQ Hydraulic Jacks & Slide Systems (PDF)

Other AJ Trailer Jack Options

• AJ 2/24 with 2-Function Manual Selector — independent leg control for side-to-side leveling
• AJ 1/24 Screw Drive — single-leg version
• AM 2/24 Screw Drive — heavier-duty AM series (24,000 lbs)

Recommended Add-Ons

• Solar Panel Kit for AJ Jacks (70487) — keeps jack battery topped up
• Stay Charge with Jumper Cables (8427) — charges trailer battery from tow vehicle
• Stay Charge (8400) — base battery maintainer

1-Year Warranty

Backed by EQ Systems' 1-year manufacturer warranty. Check your operation manual for full terms.

Specifications

• Brand: EQ Systems
• Model: AJ Dual-Leg Hydraulic Jack System (Tandem)
• SKU: 8414AMUPS
• Series: AJ tube-in-tube (3.5" × 3.5")
• Legs: 2
• Lifting Capacity: 16,000 lbs total
• Stroke: 24"
• Tube Size: 3.5" × 3.5"
• Manual Override: Screw-drive output shaft (6mm/1/4" Allen)
• Control: Single rocker switch — tandem operation (both legs together)
• Fluid: Dexron III ATF
• Battery Requirement: 150A minimum at 10.5V for 30 seconds
• Warranty: 1-year manufacturer warranty
