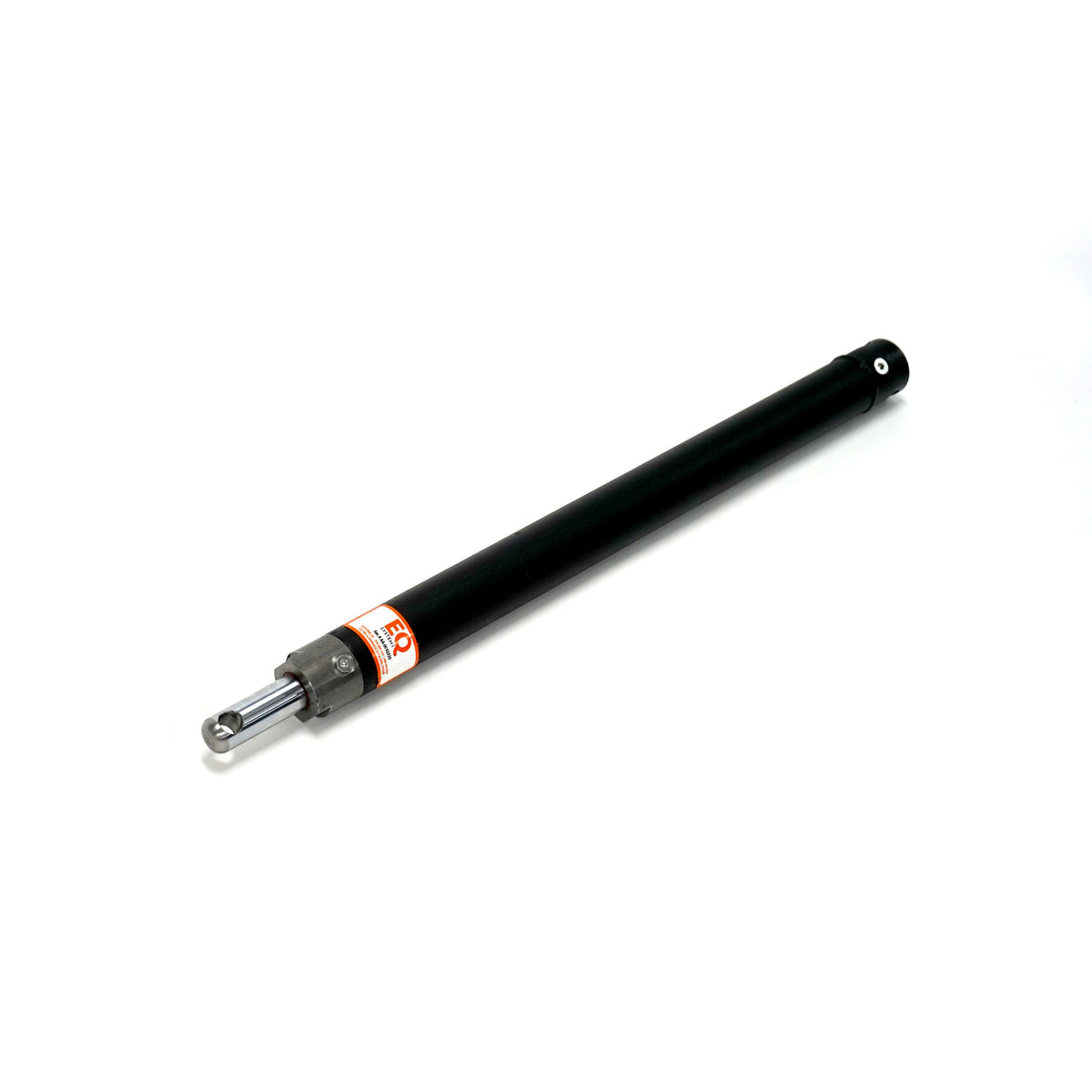

EQ Systems AJ 70 Hydraulic Cylinder | Part 2505EQ | 24" Stroke | 3½" AJ/CJ Series

Replace a leaking, pressure-losing, or non-holding AJ series 24" stroke hydraulic cylinder in your EQ Systems tube-in-tube jack with the EQ Systems AJ 70 Cylinder (Part 2505EQ). The cylinder is the working part inside the 3½" square outer tube — outer tube, brackets and foot stay on the trailer; only the cylinder gets swapped. Used in AJ 2/24, AJ 1/24 and CJ series jacks. Available at The RV Surplus.

Fitment critical: Verify cylinder configuration before ordering. Call EQ Systems at 800-846-9659.

⭐ 24" Stroke AJ/CJ Series — 8,000 lbs

• Fits AJ and CJ series tube-in-tube jacks — light-duty horse/motorsports trailer range
• 24" stroke, 2" cylinder bore
• For jacks with a 3½" square outer tube 32¾" long

⭐ Identifying the Right Cylinder

Cylinders are identified by the outer tube of the jack, not by the bracket. Measure the square dimension of the outer tube and its length: 3½" square × 32¾" long = 24" stroke AJ (this cylinder, 2505).

⭐ Always SAE Fittings

Unlike other cylinders in the EQ range, the AJ 70 has always been supplied with SAE fittings (no threads exposed between the cylinder body and the hex).

• SAE: no threads exposed between the cylinder body and the hex
• NPTF: threads exposed between the cylinder body and the hex

If your jack has NPTF fittings, call EQ Systems at 800-846-9659 before ordering so the correct replacement fittings go out with the cylinder.

Documents

• Hydraulic Cylinder Identification for Tube-in-Tube Jacks (PDF)
• EQ Systems Hydraulic Jack Options, Commercial Range (PDF)
• Required Maintenance Items for EQ Hydraulic Jacks & Slide Systems (PDF)

Related AJ Series Jacks (Uses This Cylinder)

• AJ 1/24 Single Leg Screw Drive
• AJ 2/24 Dual Leg Tandem
• AJ 2/24 with 2-Function Manual Selector

Other Cylinders

• AM 24 Cylinder (1179EQ) — heavier AM series (4" tube, 12,000 lbs)
• TJ Replacement Cylinder (1218EQ) — TJ tongue jack
• CT 20 Cylinder (1178) — CT series (4½" tube)

90-Day Warranty

Backed by EQ Systems' 90-day replacement part warranty. Check documentation for full terms.

Specifications

• Brand: EQ Systems
• Model: AJ 70 Cylinder
• SKU: 2505EQ
• Jack Series: AJ/CJ tube-in-tube (light-duty)
• Stroke: 24"
• Cylinder Bore: 2"
• Fits Outer Tube: 3½" square × 32¾" long
• Jack Capacity: 8,000 lbs
• Fittings: Always SAE
• Warranty: 90-day replacement part warranty
