EQ Systems AM 1/24 Hydraulic Trailer Jack | Single Leg | 12,000 lbs | Screw Drive Override

Lift and level your gooseneck horse or motorsports trailer with the EQ Systems AM 1/24 Single-Leg Hydraulic Jack System with Screw-Drive Manual Override — a heavy-duty single-leg hydraulic lifting system that bolts to the center tube of a gooseneck trailer, featuring 4" × 4" tube-in-tube AM-series jack, 24" stroke, and 12,000 lbs lifting capacity. Drill-powered override for backup operation. Available at The RV Surplus.

Fitment critical: Verify compatibility before ordering. Call EQ Systems at 800-846-9659.

⭐ 12,000 lbs Lifting Capacity — Single Leg

• One AM-series 4" × 4" tube-in-tube leg
• 24" stroke
• Retracted length: 35.25" | Extended: 58.3125"
• 2.5" cylinder bore
• Bolts to the center tube of a gooseneck trailer

⭐ Keyed Rocker Switch Control

• Keyed rocker switch and harness standard
• Prevents unauthorized use

⭐ Screw-Drive Manual Override for Power Loss

• If power fails, drive the pump with an electric drill through the override shaft (under plastic cap or foil seal)
• Drill must reach at least 2000 RPM for adequate pressure
• Hex size varies by pump: 7/16" hex on most, 1/4" (6mm) Allen on others
• Follow the manual override section of the AM Single Leg manual
• Take care not to contact wires or hoses with the drill

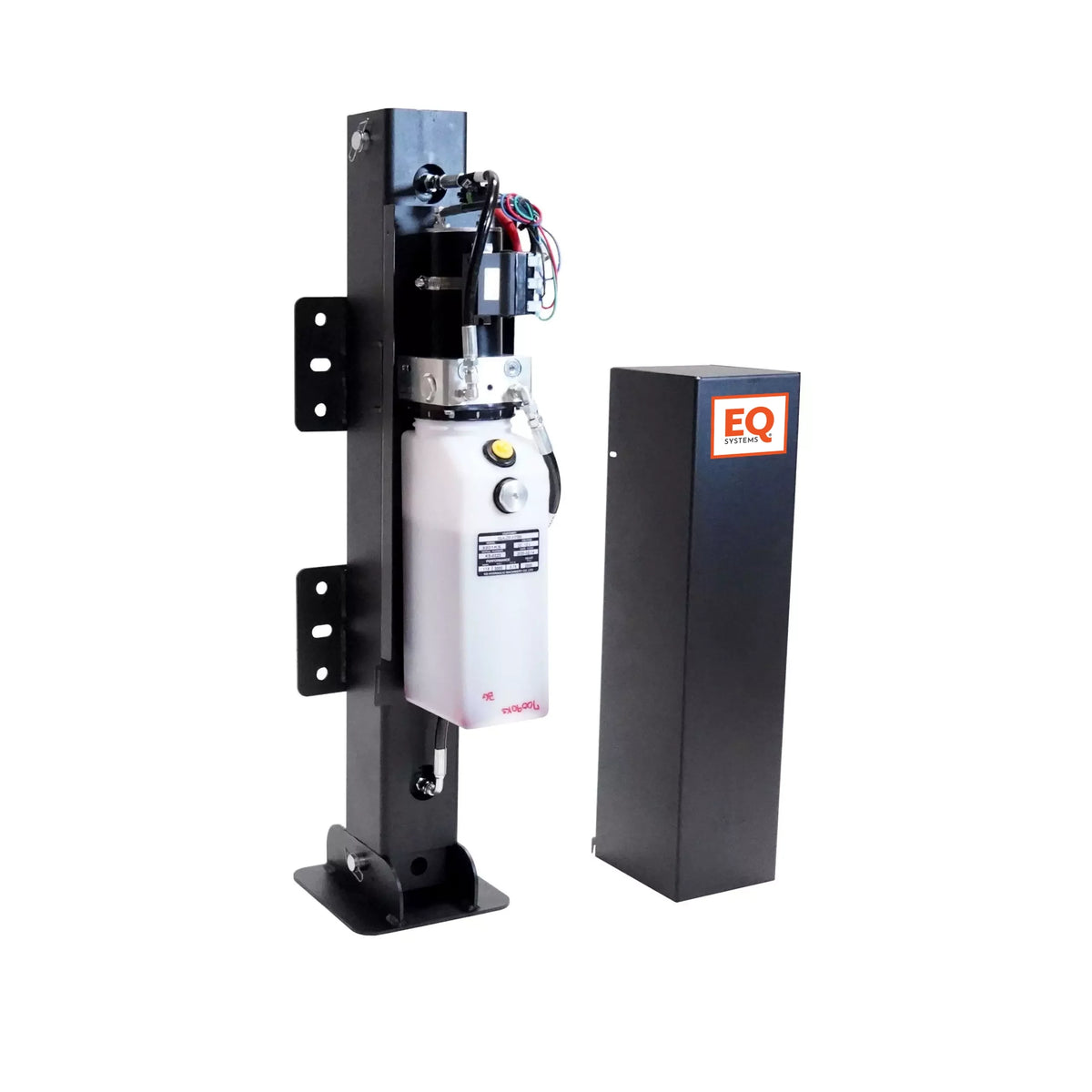

What's Included (8107UPS)

• One AM-series 24" stroke jack
• Commercial single-function pump with screw-drive manual override
• Pump cover
• Keyed rocker switch and harness
• Universal mounting brackets
• Wire harnesses in PVC high-temperature nylon braid for tough environments

What's Not Included

Ships without fluid (uses Dexron III ATF) and without mounting bolts (bolt kits available separately).

Battery Requirements

Load-test the battery before installing. EQ Systems requires a minimum of 150 amperes at 10.5 VDC for at least 30 seconds. Keep terminals tight and free of corrosion.

Fluid and Maintenance

Runs on Dexron III ATF, filled to about 1" below top of reservoir with jack fully retracted (level rises as jack retracts). Reservoir must run with its vented breather cap fitted, not the flush shipping plug, or the jack will operate erratically. Inspect every 12 months: check connections tight and corrosion-free, particularly the ground to the pump stud and positive cable to the motor solenoid.

Service Parts

• AM 24 Cylinder (part 1179EQ) — replacement hydraulic cylinder
• Wireless Remote #7823 — optional wireless remote for single-function jacks
• Switchgear varies by pump connector — verify with parts ID charts or call 800-846-9659

Documents

• EQ Systems Lifting Systems for Any Size Trailer (PDF)
• AM Single Leg Installation and Operation Manual, EQ005R9 (PDF)
• Single Leg Trailer Jack Troubleshooting Guide (PDF)
• Hydraulic Cylinder Identification for Tube-in-Tube Jacks (PDF)
• Parts Identification Charts
• Required Maintenance Items for EQ Hydraulic Jacks & Slide Systems (PDF)

Other AM/AJ Trailer Jack Options

• AM 1/24 with Hand-Pump Override — no-power-tools alternative
• AM 2/24 Dual-Leg Screw Drive — dual-leg upgrade
• AM 2/24 Dual-Leg Hand Pump — dual-leg with hand pump

Recommended Add-Ons

• Solar Panel Kit for AM Jacks (70486) — keeps jack battery topped up
• Stay Charge with Jumper Cables (8427) — charges trailer battery from tow vehicle
• Stay Charge (8400) — base battery maintainer
• AM Bolt Kit #7227 — mounting bolts sold separately

1-Year Warranty

Backed by EQ Systems' 1-year manufacturer warranty. Check your operation manual for full terms.

Specifications

• Brand: EQ Systems
• Model: AM Single-Leg Hydraulic Jack System with Screw-Drive Override
• SKU: 8107UPS
• Series: AM tube-in-tube (4" × 4")
• Legs: 1
• Lifting Capacity: 12,000 lbs
• Stroke: 24"
• Tube Size: 4" × 4"
• Retracted Length: 35.25"
• Extended Length: 58.3125"
• Cylinder Bore: 2.5"
• Manual Override: Screw-drive output shaft (7/16" hex or 1/4"/6mm Allen)
• Control: Keyed rocker switch and harness
• Fluid: Dexron III ATF (not included)
• Mounting Bolts: Not included (bolt kits sold separately)
• Battery Requirement: 150A minimum at 10.5V for 30 seconds
• Wiring: PVC high-temp nylon braid
• Warranty: 1-year manufacturer warranty
