EQ Systems
EQ Systems Solar Panel Kit #70486 | For AM Hydraulic Trailer Jacks | 3W with Battery Box
EQ Systems Solar Panel Kit #70486 | For AM Hydraulic Trailer Jacks | 3W with Battery Box
Couldn't load pickup availability
Keep your AM series hydraulic trailer jack battery topped up from sunlight with the EQ Systems Solar Panel Kit for AM Hydraulic Trailer Jacks (Part 70486). A trailer parked between trips still has the power to run its jacks. Fits all AM single and dual hydraulic trailer jacks. Available at The RV Surplus.

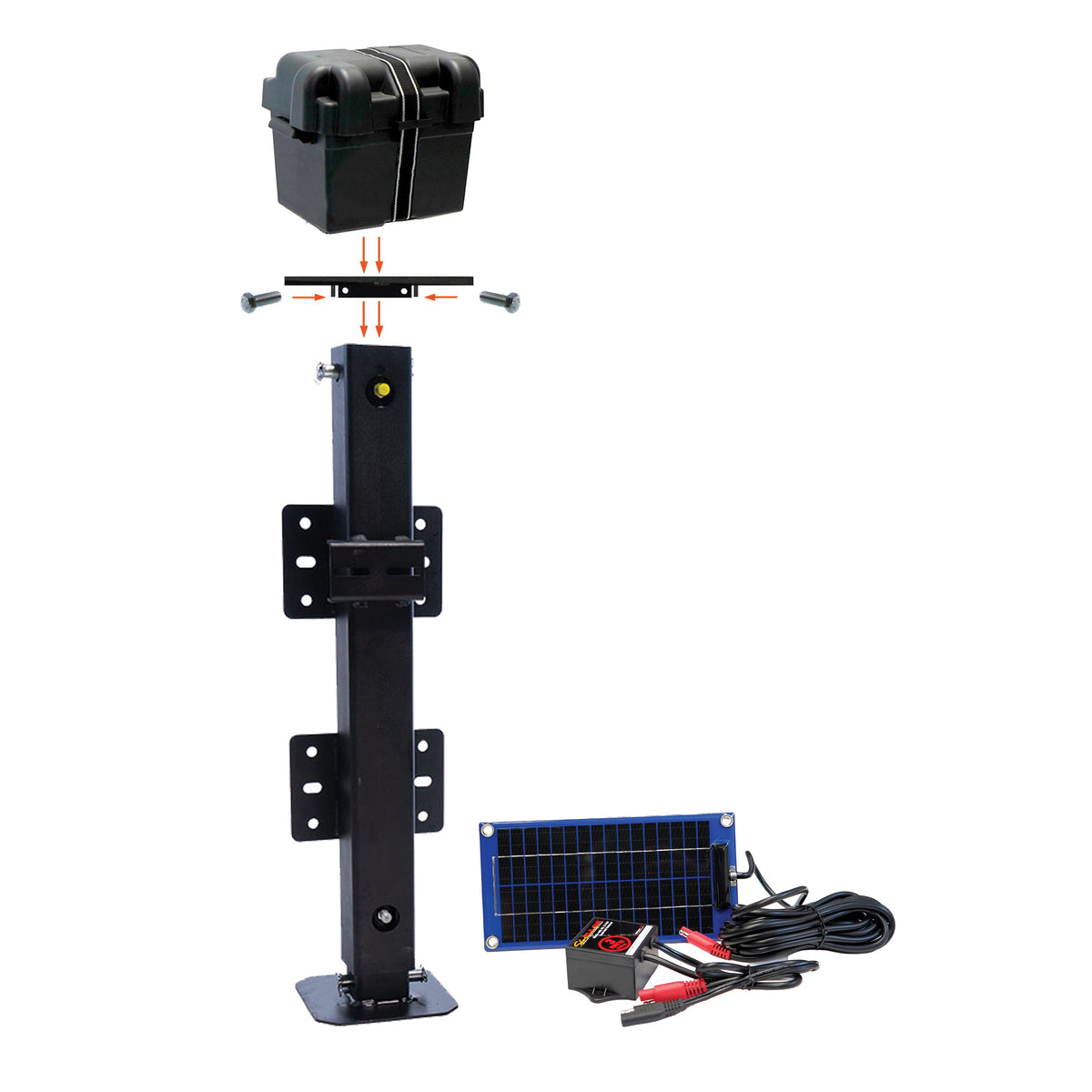

⭐ What's In The Kit
- 3-watt solar panel
- Battery mounting bracket
- Self-tapping screws
- Circuit box with 3 ft box-to-lug wire and 17 ft box-to-panel wire
- Battery box
⚠️ Battery NOT included.
⭐ Why a Trailer Jack Needs Charge Support
EQ Systems hydraulic pumps are not light loads. Battery should load-test at a minimum of 150 amperes at 10.5 VDC for 30 seconds. A trailer battery that has sat for weeks will often run a jack part way and stall — reads as a pump fault when it's actually a power fault.
⭐ The AM Series
AM jacks lift 12,000 lbs single and 24,000 lbs dual, with 20/24/30 inch stroke options on a 4×4" tube. Manual override is standard on both, so a flat battery never leaves you stranded — but it means cranking by hand or with a drill.
⭐ Other Ways to Keep the Battery Up
If the trailer is regularly connected to a tow vehicle, Stay Charge units charge the trailer battery from the vehicle instead:
Documents
For AJ Series Trailer Jacks
Related AM Systems
90-Day Warranty
Backed by EQ Systems' 90-day replacement part warranty. Check documentation for full terms.
Specifications
- Brand: EQ Systems
- Model: Solar Panel Kit for AM Hydraulic Trailer Jacks
- SKU: 70486
- Panel: 3 watt solar
- Cabling: 3 ft box-to-lug + 17 ft box-to-panel
- Includes: Battery box, mounting bracket, screws, circuit box
- Fits: All AM series single and dual hydraulic trailer jacks
- Battery: NOT included
- Warranty: 90-day replacement part warranty
